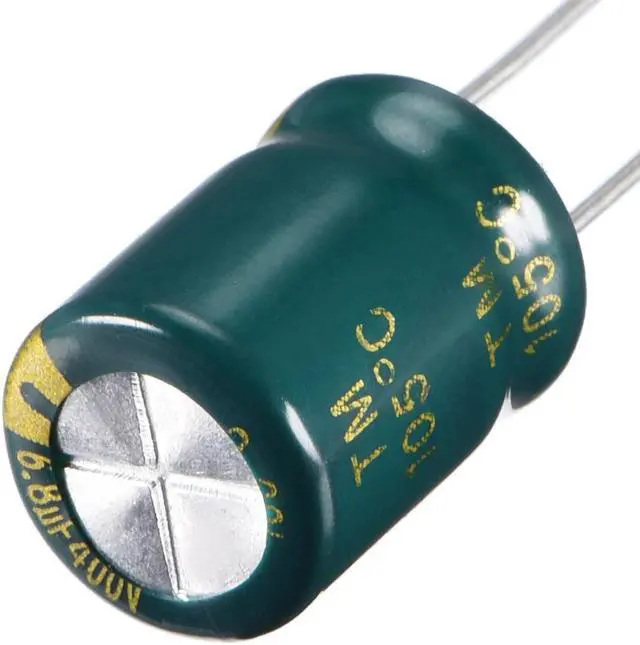

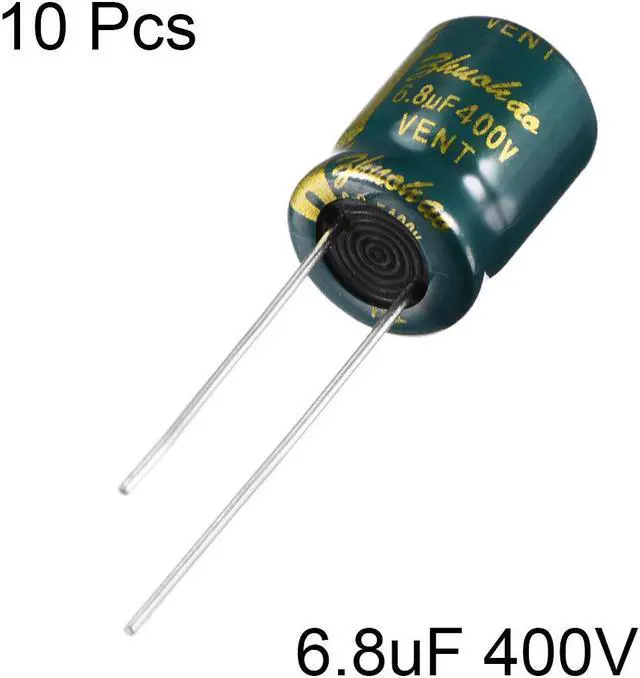

Aluminum Radial Electrolytic Capacitor Low ESR Green with 6.8uF 400V 105 Celsius Life 3000H 10 x 13mm High Ripple Current,Low Impedance 10pcs
- Product Name : Aluminum Electrolytic Capacitor;Maximum Operating Temperature : 105 Celsius.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
High Ripple Current, Low Impedance.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: High Ripple Current, Low Impedance
Category Temperature Range: -40 ~ + 105 Celsius( 6.3 ~100V)
Rated Voltage: 400V;
Capacitance: 6.8 uF;
Capacitance Tolerance: ±20%(120Hz, +20 Celsius);
Standard Load Life: 3000hrs

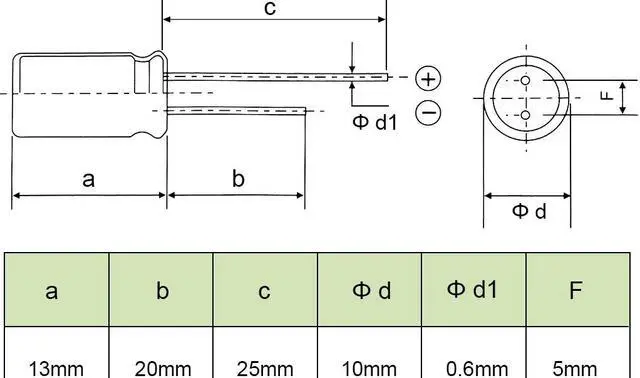

Body Size: 10 x 13 mm / 0.39" x 0.5" (D*L);
Lead Length: 25mm/ 0.98", 20mm/ 0.79";
Lead Pitch: 5mm/ 0.2"
Lead Diameter: 0.6 mm
Size: 10pcs 6.8UF 400V 10 x 13mm

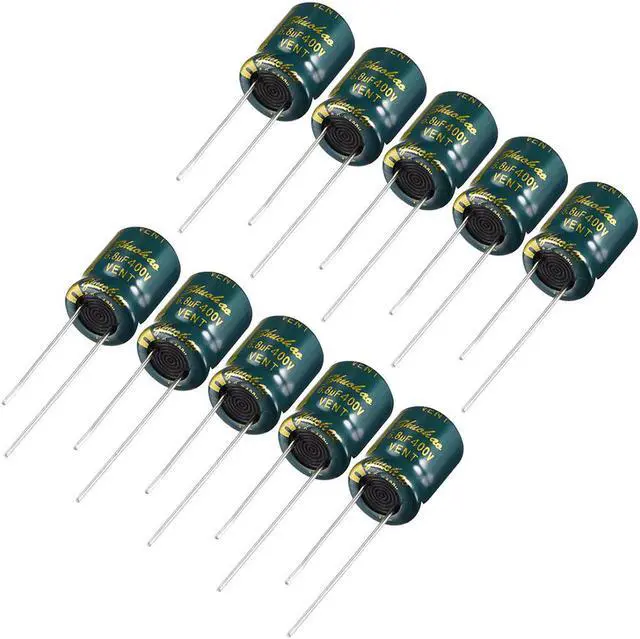

Package Content: 10 x Electrolytic Capacitors
High Ripple Current, Low Impedance.
Radial lead, aluminum electrolytic capacitor.
The longer lead is positive electrode and the shorter one is negative electrode.
Notice:
1.
Capacitance: Don't change the capacitance.
2.
Voltage: You can go higher, but don't go lower.
3.
Physical Size: Capacitors can vary greatly in size, try to select one of similar size to the one you are replacing.
Product Name: Aluminum Electrolytic Capacitor
Type: Radial Lead
Feature: High Ripple Current, Low Impedance
Category Temperature Range: -40 ~ + 105 Celsius( 6.3 ~100V)
Rated Voltage: 400V;
Capacitance: 6.8 uF;
Capacitance Tolerance: ±20%(120Hz, +20 Celsius);
Standard Load Life: 3000hrs
Body Size: 10 x 13 mm / 0.39" x 0.5" (D*L);
Lead Length: 25mm/ 0.98", 20mm/ 0.79";
Lead Pitch: 5mm/ 0.2"
Lead Diameter: 0.6 mm
Size: 10pcs 6.8UF 400V 10 x 13mm
Package Content: 10 x Electrolytic Capacitors
