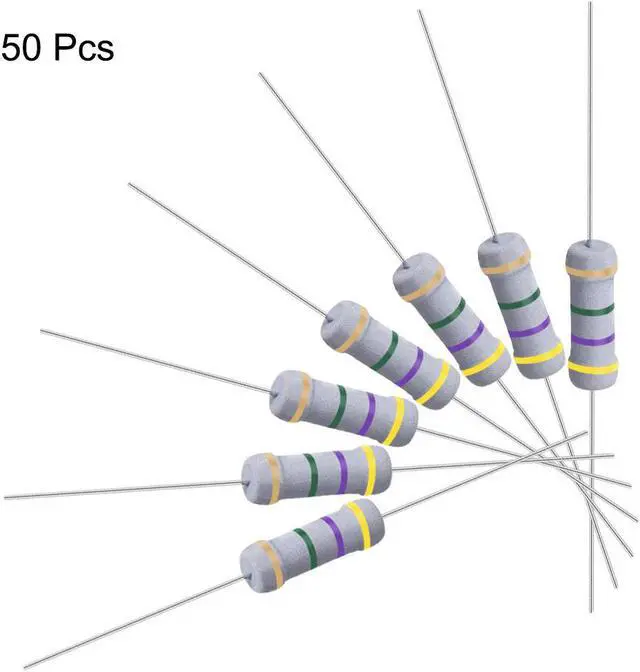

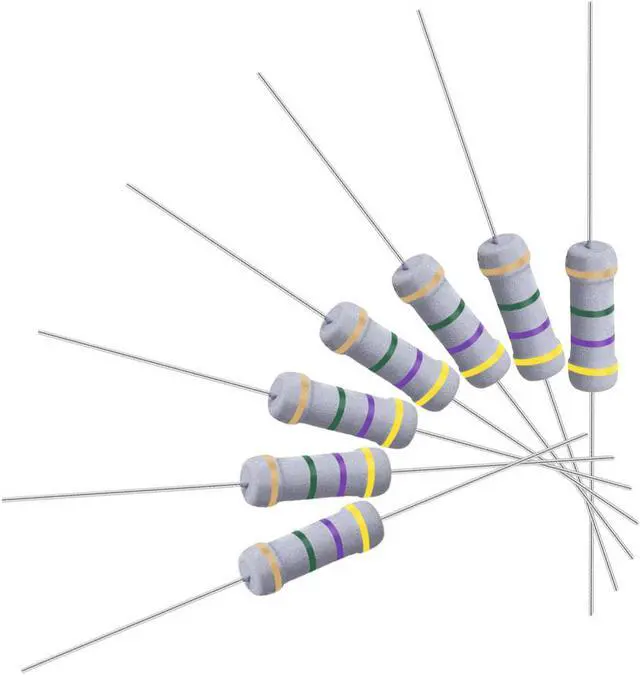

50 Pcs Metal Oxide Film Resistor, 5% Tolerance, Axial Lead, 1W, Flame Proof, 4.7M Ohm Resistance for DIY Electronic Projects and Experiments

Features:

• Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties:KEY_TAB operate at higher temperatures; produce low noise; small size; high stability; high reliability.
• The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55155.
• The metal oxide film resistor is made by coating the ceramic core with metal oxide The antimony oxide is added to the tin oxide to increase its resistivity.
• Noted:Different Resistance on this listing, please check what you need correctly before purchasing.

KEY_TAB

Specification

• Rated Power:1 W;
• Maximum working voltage:350V;
• Maximum overload voltage:600V;
• Maximum pulse voltage:750V;
• Dielectric withstanding voltage:350V
• Operating temperature range:-55155;
• Resistance Values (Ohm):4.7M;
• Resistance Tolerance (%):5%;
• Packaging:Axial;

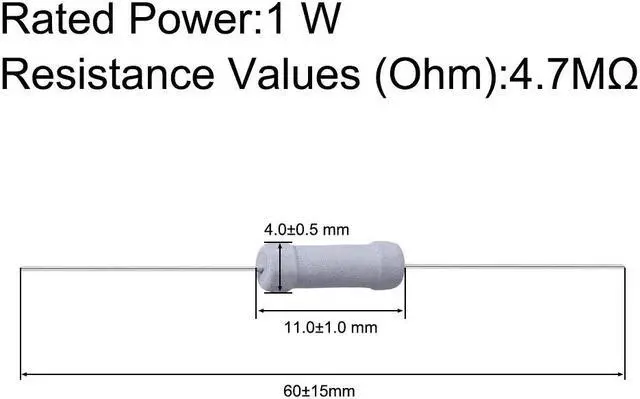

• Body Size:4.0±0.5 mm x 11.0±1.0 mm;
• Total Length:73±10mm;

KEY_TAB

Package Content

• 50 Pcs x Metal Oxide Film Resistor
