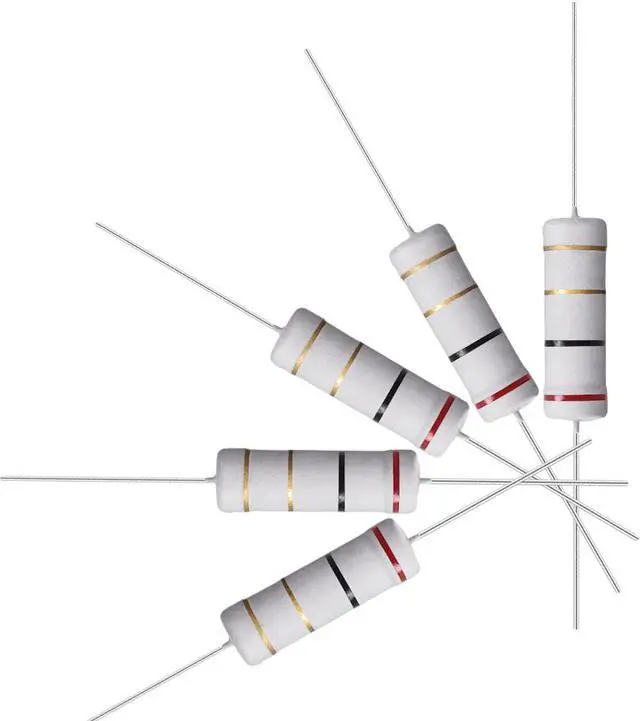

10 Pcs Metal Oxide Film Resistor, 5% Tolerance, Axial Lead, 5W, Flame Proof, 2 Ohm Resistance for DIY Electronic Projects and Experiments

Features:

KEY_TAB

• Metal oxide film resistors exceed the performance of metal film and carbon film for the following properties: power rating, voltage rating, overload capabilities, surges and high temperatures.
• The metal oxide film resistors have 5% tolerance. The temperature coefficient is around -55155.
• The resistance material for metal oxide resistors is tin oxide that is contaminated with oxide, this is to increase the resistivity. Metal oxide resistors can withstand higher temperatures than carbon or metal film resistors.
• Noted:Different Resistance on this listing, please check what you need correctly before purchasing.

KEY_TAB

Specification

KEY_TAB

• Rated Power:5 W;
• Maximum working voltage:500V;
• Maximum overload voltage:1000V;
• Maximum pulse voltage:1500V;
• Dielectric withstanding voltage:700V
• Operating temperature range:-55155;
• Resistance Values (Ohm):2;
• Resistance Tolerance (%):5%;
• Packaging:Axial;

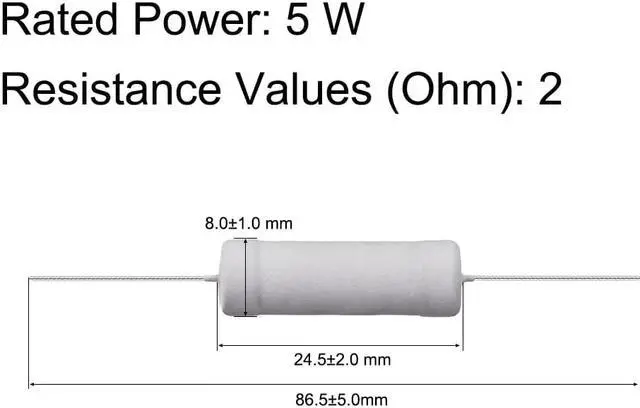

• Body Size:24.5±2.0 mm x 8.0±1.0 mmLxD)
• Total Length:86.5±5.0mm;
• Lead Wire Size:31±5mm x 0.7±0.1mm(LxD)

KEY_TAB

Package Content

KEY_TAB

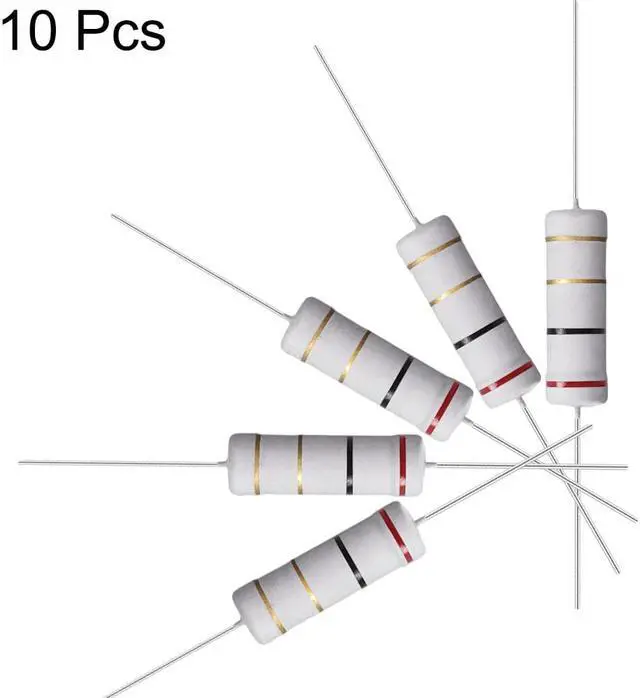

• 10 Pcs x Metal Oxide Film Resistor
