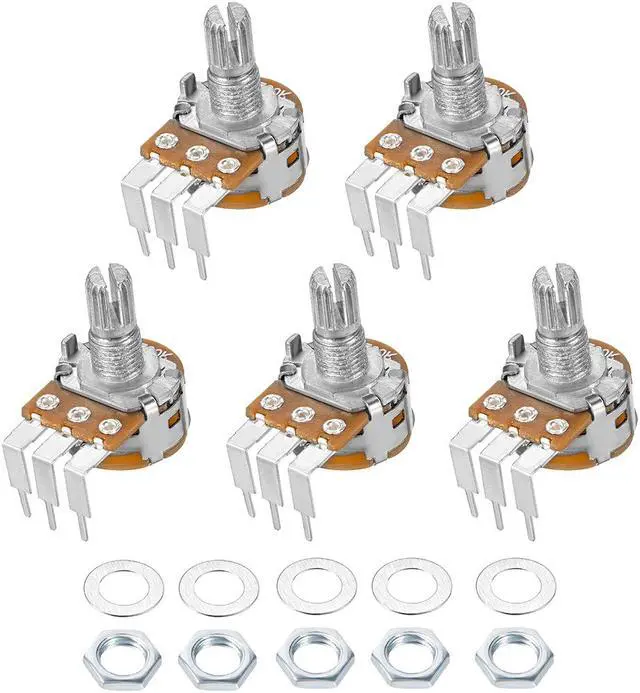

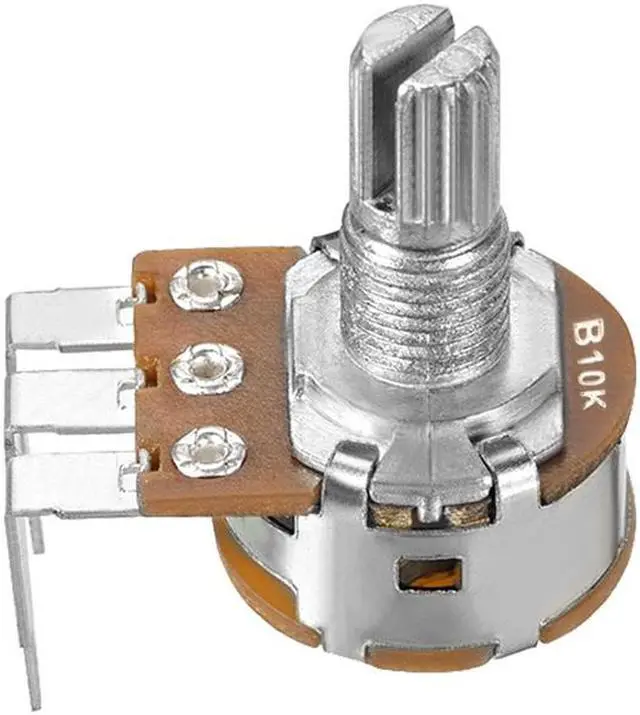

WH148 Potentiometer with Switch 10K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper 5pcs
- 1. Model: WH148, 10K ohm, Tolerance: +/-10%, 5 Terminals, Single Linear, Suits Most Standard Knobs.this item do not include Knobs);3. Knurled shaft with split design for push-on knob.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
1.Single Linear, Suits Most Standard Knobs.this item do not include Knobs)
2.Top adjustment type and knurled shaft for easy operate in daily use.
3. Mainly used for dimming, speed regulation, temperature regulation, etc. of electronic products, suitable for car, audio and video, governor, microwave oven, loudspeaker, car amplifier, etc.
4. Knurled shaft with split design for push-on knob.
KEY_TAB
Specification:
Product Name: Carbon Film Potentiometer
Model: WH148
Material: Carbon film Metal
Resistance Value: 10K ohm
Tolerance: +/-10%
Turn Number: Single Turn
Terminals Number: 5
Features: Round Shaft
Total High: 30mm
Base Size: 17mm x 9mm ( DxH)
Screw Thread Dia.: 6.7mm
Shaft Diameter:KEY_TAB KEY_TAB 6mm/0.24 inch
Shaft Length(do not include the Screw Thread parts):KEY_TAB KEY_TAB 9mm
KEY_TAB
Package Content:
5 x Carbon Film Potentiometer
