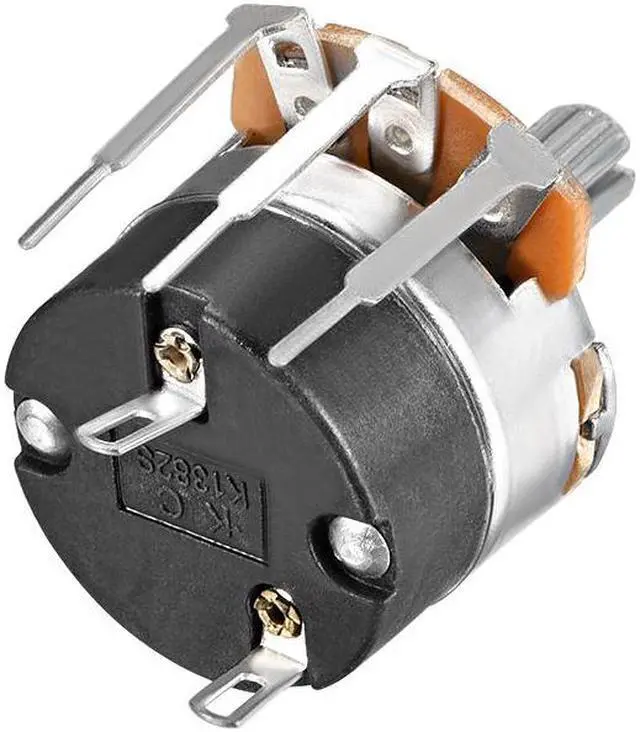

WH138 Potentiometer with Switch B10K Ohm Variable Resistors Single Turn Rotary Carbon Film Taper 2pcs
- 1. Model: WH138, 10K ohm, Tolerance: +/-10%, 5 Terminals, Single Linear, Suits Most Standard Knobs.this item do not include Knobs);3. Knurled shaft with split design for push-on knob.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description:
1.Single Linear, Suits Most Standard Knobs.this item do not include Knobs)
2.Top adjustment type and knurled shaft for easy operate in daily use.
3. Mainly used for dimming, speed regulation, temperature regulation, etc. of electronic products, suitable for car, audio and video, governor, microwave oven, loudspeaker, car amplifier, etc.
4. Knurled shaft with split design for push-on knob.
KEY_TAB
Specification:
Product Name: Carbon Film Potentiometer
Model: WH138
Material: Carbon film Metal
Resistance Value: 10K ohm
Tolerance: +/-10%
Turn Number: Single Turn
Terminals Number: 5
Features: Round Shaft
Total High: 40mm

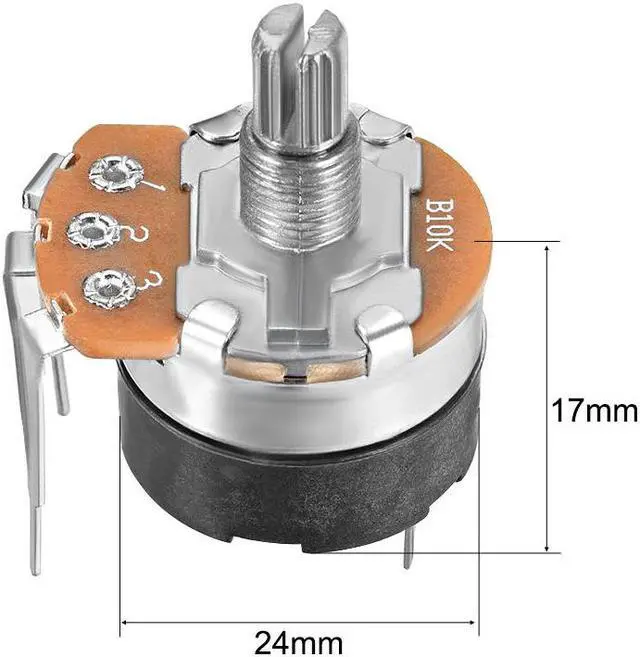

Base Size: 17mm x 24mm ( DxH)
Screw Thread Dia.: 7.6mm
Shaft Diameter: 6mm/0.24 inch
Shaft Length(do not include the Screw Thread parts): 13mm
KEY_TAB

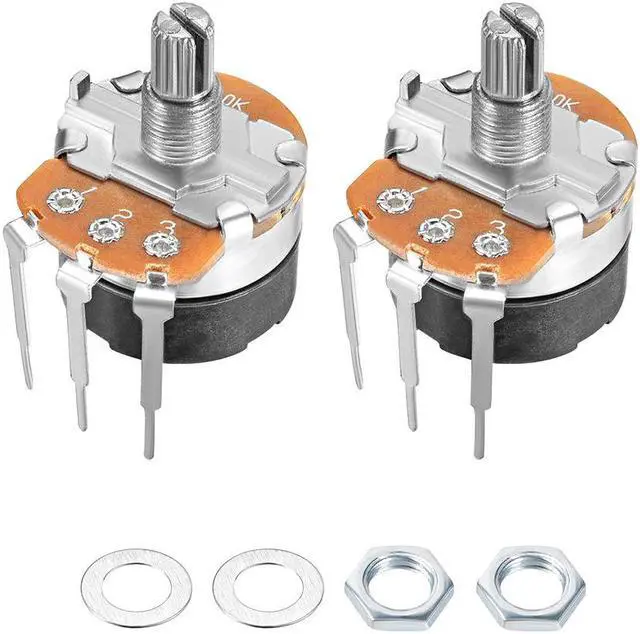

Package Content:
2 x Carbon Film Potentiometer
