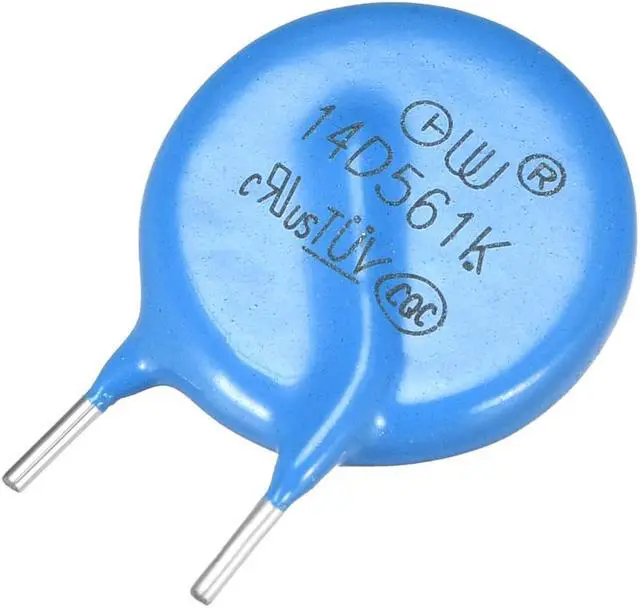

20Pcs Voltage Dependent Resistors AC 350V 14D561K L3.5 Radial Disc Varistors

Specifications:

Model: 14D561K

Max. Allowable Voltage: AC 350V; DC 460V

Varistor Voltage: 560V ±10%

Max. Clamping Voltage (8/20 S):KEY_TAB 915V; Max. Clamping Current (8/20 S):KEY_TAB 50A

Max. Peak Current (8/20 S) : 4500A

Rated Power: 0.6W; Max. Energy: 125J

Typical Capacitance : 534pF (1kHz)

Lead Type: Straight

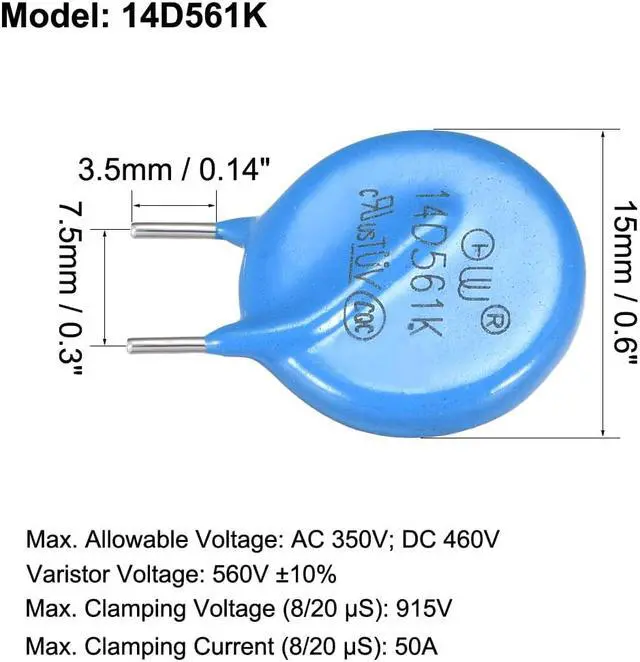

Lead Size: 3.5 x 0.7mm / 0.14" x 0.03" (L*D); Lead Spacing : 7.5mm / 0.3"

Body Size: 15 x 3.7mm / 0.6" x 0.15" (D*T)

Temperature Coefficient: PTC; Fit Climate Type: 40/85/56

Material: Epoxy, ZnO; Color: Blue

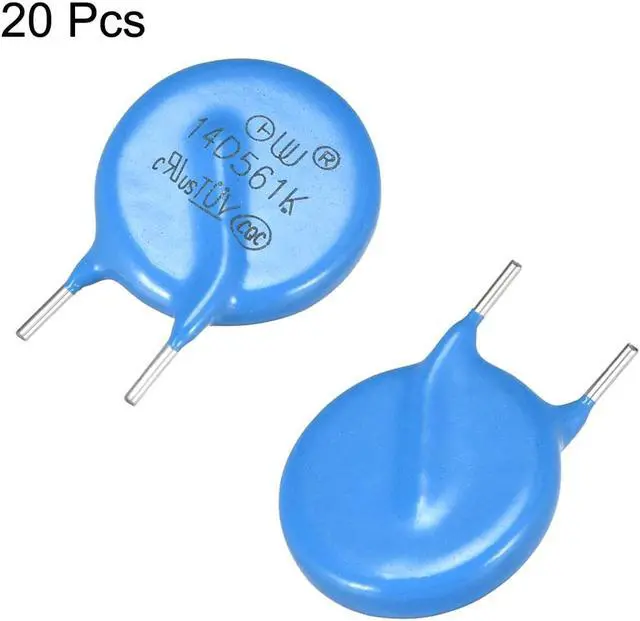

Package Content: 20 x Voltage Dependent Resistors

KEY_TAB

Descriptions:

1.Specific epoxy coated disc construction with radial leads, long life use.

2.The Voltage Dependent Resistor is designed to protect equipment against transient voltage spikes.

3.Connected directly across the power supply rails. When a voltage spike is encounted, the varistor rapidly changes impedance from its normal high impedance state to a very low level in standby mode.

4.Can permit absorbtion of the unwanted high voltage and protect voltage sensitive components and circuits.

5.Widely used in power supply, industrial equipment, lighting products, electronics and home appliance etc.
