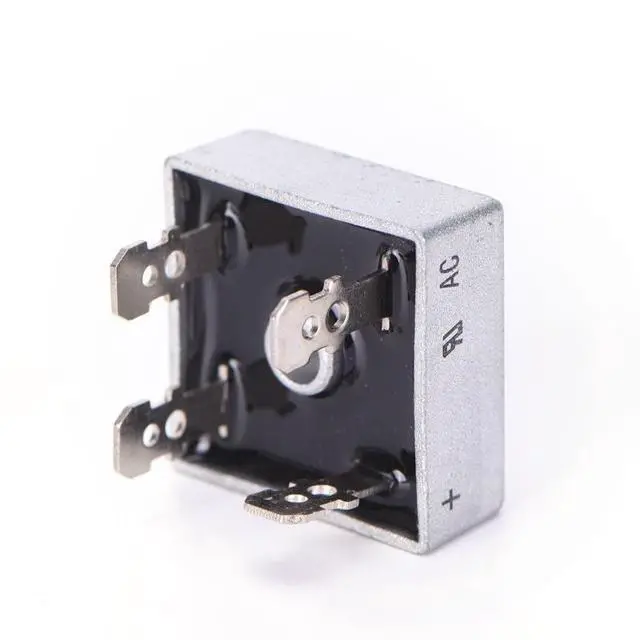

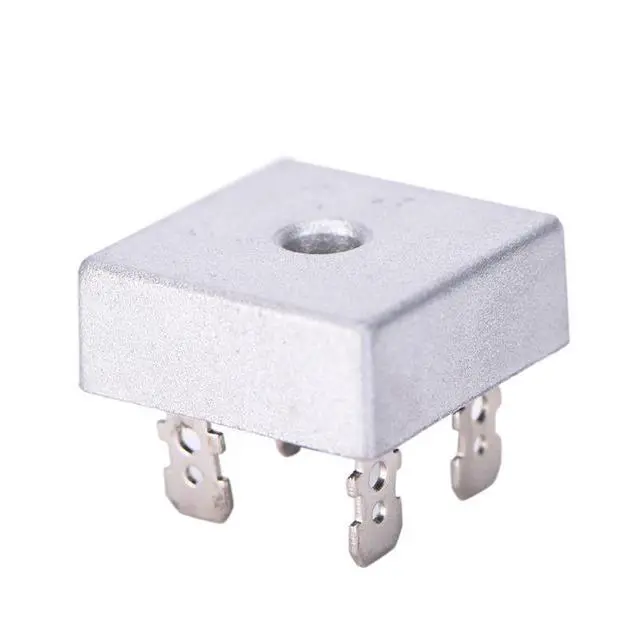

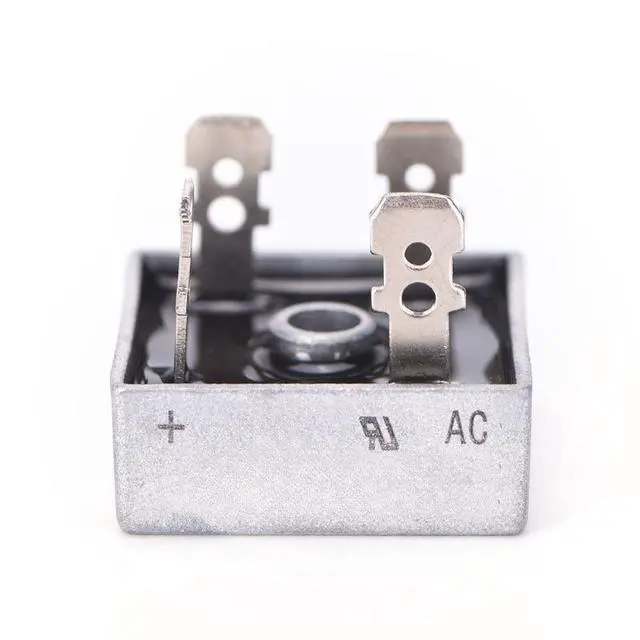

10Pcs 1000V 50A Metal Case Single Phase Diode Bridge Rectifier 10X

Description:

A robust and reliable single-phase bridge rectifier designed for converting AC voltage into DC voltage. It features high surge current capability and an electrically isolated metal case for efficient heat dissipation and long service life, suitable for a wide range of power supply applications.

Key Features:

1. High Voltage & Current Capability: 1000V maximum repetitive peak reverse voltage, 50A maximum average forward rectified output current.
2. Flammability Rating: 94V-0.
3. High Surge Current: 400A surge overload rating.
4. Electrically Isolated Metal Case for excellent heat dissipation and easy installation.
5. Isolation Voltage: 2500V (case to terminal).
6. Universal 4-way terminals for flexible mounting: snap-on, wrap-around, solder or PCB mount.

Electrical Specifications:

1. Max repetitive peak reverse voltage (VRRM): 1000V
2. Max RMS bridge input voltage (VRMS): 700V
3. Max DC blocking voltage (VDC): 1000V
4. Max average forward current at TA=40°C (IF(AV)): 50A
5. Peak forward surge current (IFSM): 400A
6. Typical thermal resistance (ReJA): 2.5°C/W
7. Operating & storage temperature: -55 to +150°C
8. Max instantaneous forward voltage drop at 25A (VF): 1.0V
9. Max DC reverse current at 25°C (IR): 10uA
10. Max DC reverse current at 125°C (IR): 500uA

Mechanical Specifications:

1. Case: Metal
2. Terminals: Plated 0.25" (6.35mm) Faston
3. Mounting: Bolt-down design (thermal compound recommended)
4. Mounting Torque: 20 in-lb max.
5. Weight: approx. 32g (1.12oz) per unit

Package Includes:

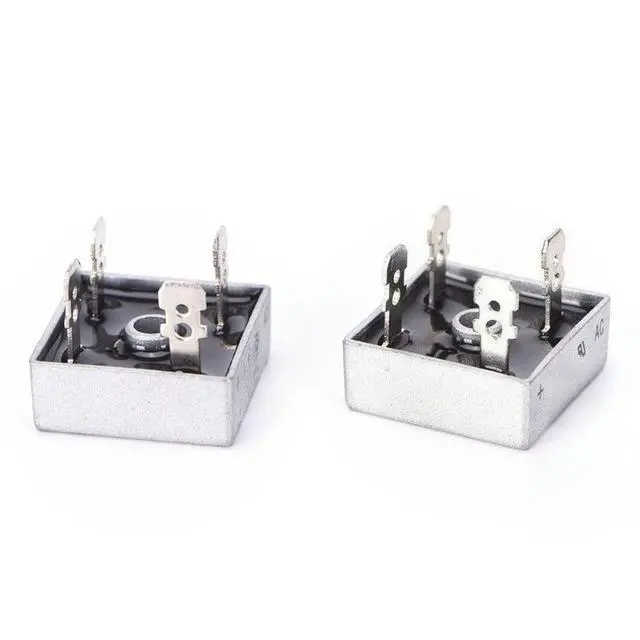

10x 50A 1000V Metal Case Single Phase Diode Bridge Rectifier
