40+5 uF 40/5 MFD ±6% 370V/440 VAC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight

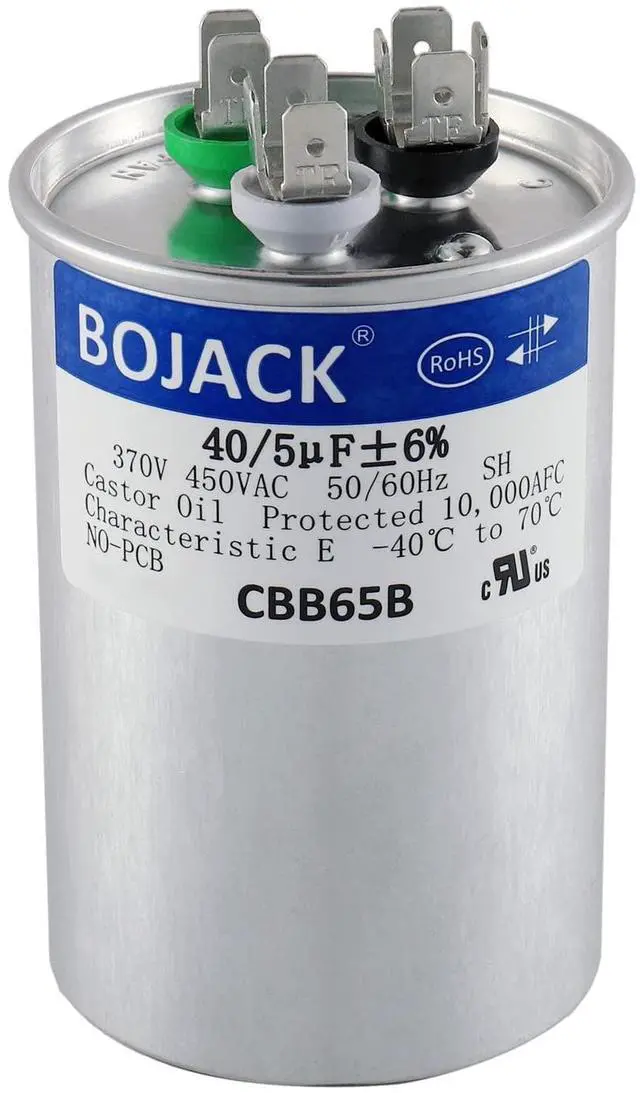

BOJACK Dual run circular start capacitor

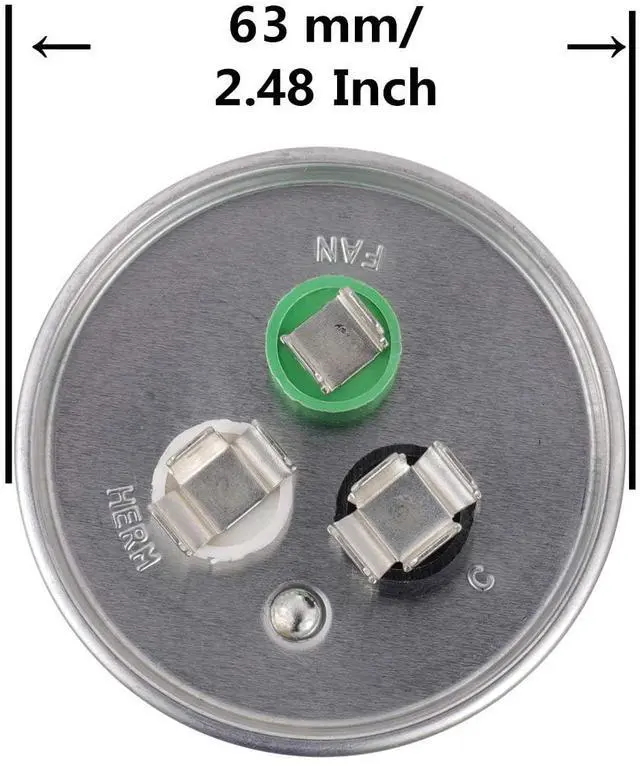

Ombines two capacitors into one unit. Three terminals on the top are labeled "Herm"/"H" for the compressor motor, "Fan"/"F" for the fan, and "C" for the common line.It will power a compressor motor and a fan motor

Model: CBB65Universal model

Shell material: metal

Dielectric Material: metallized polypropylene film

Capacity: 40+5uf

Tolerance: ±6%

Rated voltage: 370V/440V AC

Frequency: 50 / 60Hz

Safety rated: 10,000 AFC

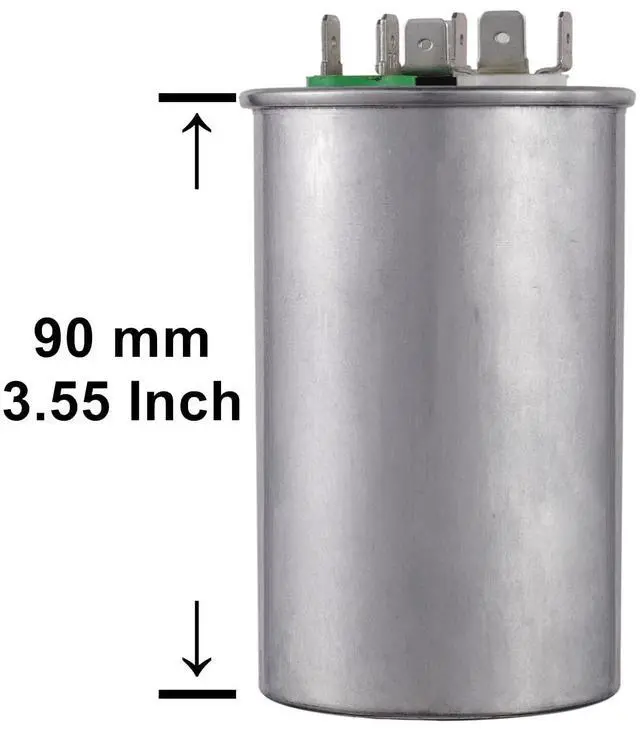

Capacitor dimension: Diameter<2.48 inch> Height <3.55 inch>

Operating temperature: -40 to +70/-104to+158

This capacitor is used for start-up and operation of AC motors with

frequency of 50Hz/60Hz such as Industrial Grade Replacement for

Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and

Compressors.It is small in size, lightweight, heat resisting and anti-explosion.

Round capacitor can be used to substitute oval shape one with the

same MFD AND Volt specs.A 440 volt capacitor can be used in place

of a 370 volt, as it is build better, but the 370 cant be used in place

of a 440 volt.
