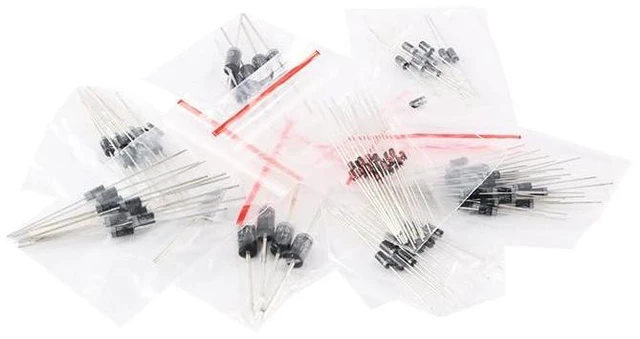

200Pcs 8 Value Diode Assortment Kit Rectifier Schottky Fast Recovery Switching Diodes 200mA-3A 40V-1000V 1N4148 1N4007 1N5819 1N5399 FR107 FR207 1N5408 1N5822 for DIY Electronics Projects
- 200-piece diode assortment includes 8 values for DIY projects, electronics experiments, maintenance, product development, and professional engineering work.
- 1N4148 switching diodes include 50 pieces rated at 200mA and 100V for circuit designs requiring the specified switching component.
- 1N4007 fast recovery diodes include 50 pieces rated at 1A and 1000V for applications requiring the listed recovery and rectification characteristics.
- FR107 fast recovery diodes include 20 pieces rated at 1A and 1000V for electronic circuits using the specified current and voltage ratings.
- FR207 fast recovery diodes include 20 pieces rated at 2A and 1000V for circuit designs requiring the listed higher current rating.
- 1N5819 Schottky diodes include 20 pieces rated at 1A and 40V for projects using this specified Schottky diode value.
- 1N5822 Schottky diodes include 10 pieces rated at 3A and 40V for circuits requiring the listed Schottky diode current and voltage ratings.
- 1N5408 rectifier diodes include 10 pieces rated at 3A and 1000V for circuits using the specified rectifier diode rating.
- 1N5399 rectifier diodes include 20 pieces rated at 1.5A and 1000V for projects requiring the listed current and voltage specifications.
- The diodes are lead-free and RoHS compliant, and the assortment is designed for organized storage with components readily accessible for projects and maintenance.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description:
Multi-purpose diode assortment kit for DIY projects, student experiments, maintenance, product development, and electronics work. Includes 200 diodes across 8 values, covering switching, rectifier, Schottky, and fast recovery applications.
Core Selling Points:
Provides eight commonly used diode values to support different current and voltage requirements. Features 1N4148 for fast-switching applications and 1N4007 for high-voltage rectifying applications. Lead-free materials and RoHS compliance support safer, environmentally conscious electronics projects. Designed for organized storage and ready access to components.
Technical Specifications:
Diode types and ratings: 1N4148 switching diode, 200mA, 100V; 1N4007, 1A, 1000V; 1N5819 Schottky diode, 1A, 40V; 1N5399 rectifier diode, 1.5A, 1000V; FR107 fast recovery diode, 1A, 1000V; FR207 fast recovery diode, 2A, 1000V; 1N5408 rectifier diode, 3A, 1000V; 1N5822 Schottky diode, 3A, 40V.
Package Contents:
50 x 1N4148 diodes; 50 x 1N4007 diodes; 20 x 1N5819 diodes; 20 x 1N5399 diodes; 20 x FR107 diodes; 20 x FR207 diodes; 10 x 1N5408 diodes; 10 x 1N5822 diodes.
Before Purchase:
Confirm the required diode model, current rating, voltage rating, and diode type before purchase. This kit contains 8 specified diode values for electronics projects and applications requiring these ratings.
