AJMRTC 60KV 24Stage Voltage Multiplier Rectifier Module, 60000V DC High Voltage Power Board, Voltage Doubler Rectifying Circuit for Electrostatic Generator Motor Electronic DIY Kit
- - 24stage CockcroftWalton multiplier design, outputs up to 60KV DC for highvoltage experimental projects
- - Equipped with highvoltage diodes and capacitors, stable rectification, compact FR4 PCB for simple wiring & mounting

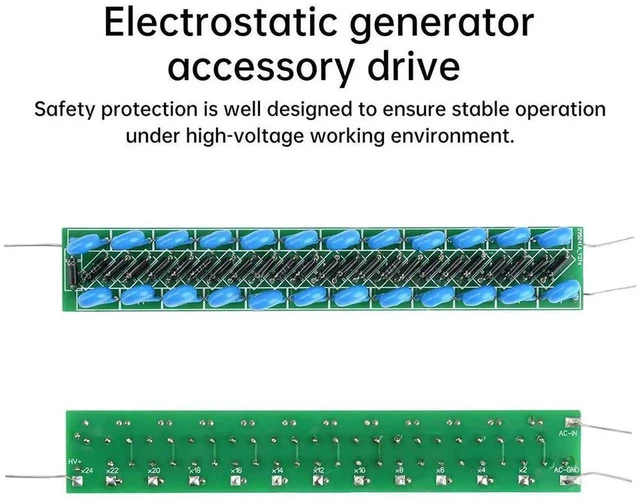

- - Works for electrostatic generator building, motor testing, physical lab experiments and electronic hobbyist DIY assembly
- - Supports operating frequency 80kHz, good insulation performance for continuous shortterm experimental operation
- - Ideal teaching demonstration electronic kit for school lab, scientific research and small highvoltage equipment modification
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

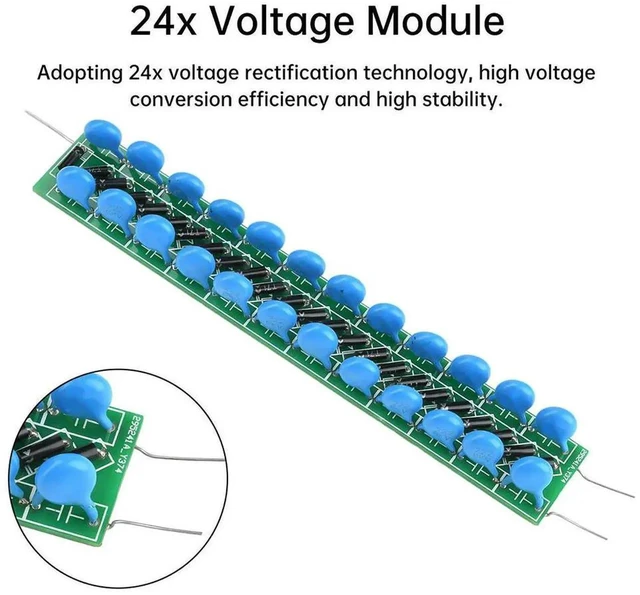

AJMRTC 24times voltage multiplier rectifier module is a compact highvoltage power circuit board adopting classic CockcroftWalton voltage doubling topology. It converts AC input into highvoltage DC output reaching 60000V, assembled with highwithstandvoltage diodes and capacitors on FR4 printed circuit board.
This highvoltage module fits electrostatic generator assembly, motor performance test, physics lab experiment, teaching demonstration and electronic DIY modification. Important safety notice: this is an experimentalonly electronic kit. Adequate insulation distance must be kept during operation. Never touch output terminals to avoid electric shock hazard. Not intended for household mains power application.

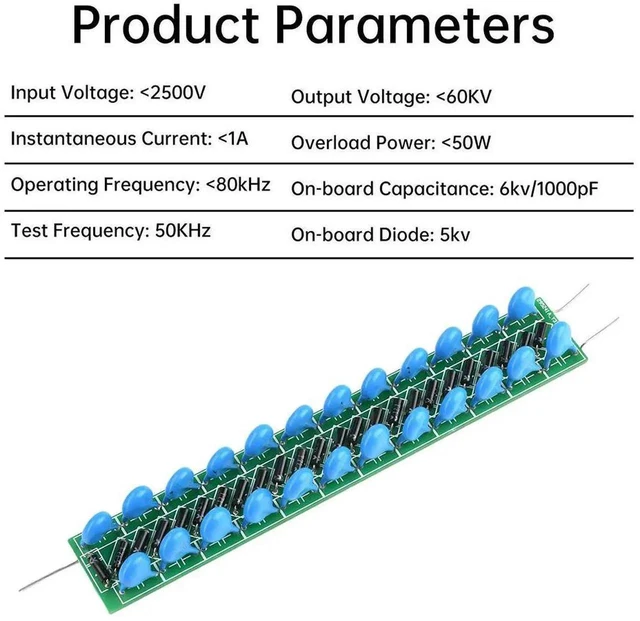

Input Voltage: Max 2500V AC
DC Output Voltage: 60KV
Max Instant Current: Below 1A
Max Working Power: 50W
Operating Frequency: 80kHz
Test Frequency: 50kHz
Onboard Capacitor: 6kV 1000pF
Onboard Diode: 5kV
PCB Material: FR4
Application: Electrostatic generator, lab test, electronic DIY kit
