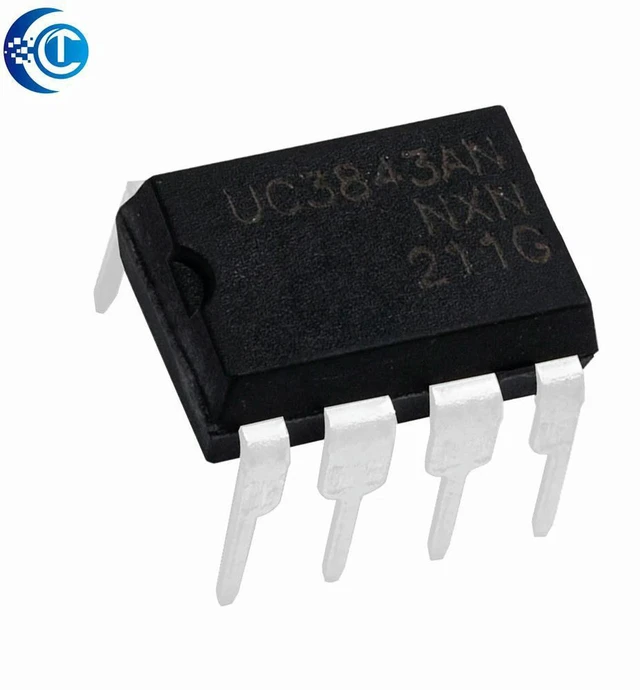

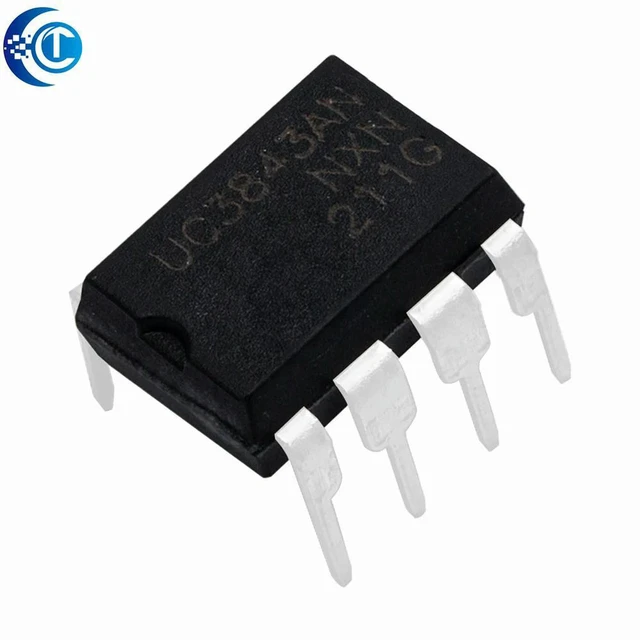

AJMRTC UC3843 DIP8 PWM Controller IC 10PCS/Lot, Maker-Friendly UC3843 Series PWM Switching Power Converter Chip, Current Mode PWM Regulator for SMPS, Power Supply Repair & Electronic Circuit DIY
- - UC3843 DIP8 packaged current-mode PWM controller IC, 10 pieces per lot, widely used for switching power supply design and repair
- - Built-in oscillator, error amplifier and current sensing comparator, simplifies SMPS circuit design for power supply prototypes
- - Wide operating voltage range, stable PWM output to control MOSFET for buck, boost and flyback switching power topologies
- - DIP8 through-hole package for easy soldering and replacement, ideal for breadboard testing and circuit experiment
- - Cost-effective bulk pack, perfect for power supply maintenance, student circuit experiments and electronics maker DIY projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC UC3843 PWM controller chip comes in DIP8 through-hole package with 10 pieces per lot. It is a current-mode PWM integrated circuit specially made for switching mode power supplies. It integrates oscillator, error amplifier and current-limit protection, greatly reducing peripheral component count when designing flyback, buck or boost power converters. The DIP8 package enables convenient hand soldering and component replacement for broken power boards. It is a common component for power supply repair, circuit teaching experiments and homemade switching power projects for electronic enthusiasts.
Specifications
- Brand: AJMRTC
- Model: UC3843
- Package: DIP8
- Quantity: 10PCS/Lot
- Type: Current-mode PWM controller IC
- Application: Switching mode power supply(SMPS), power supply repair, circuit experiment, electronic DIY
