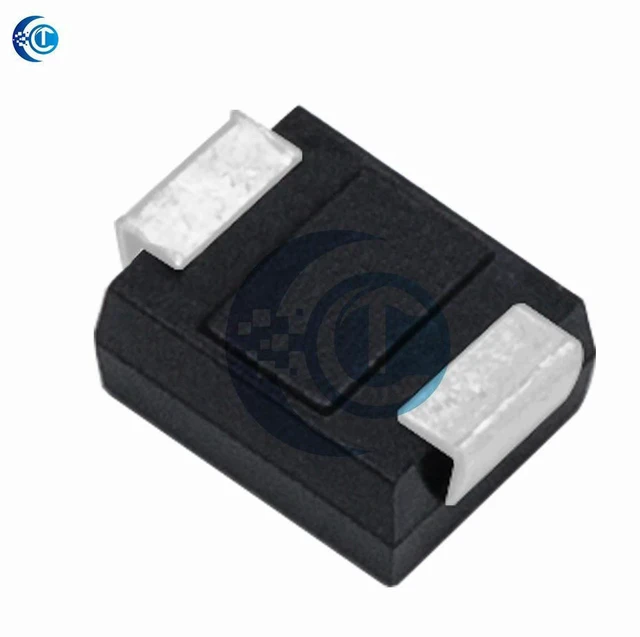

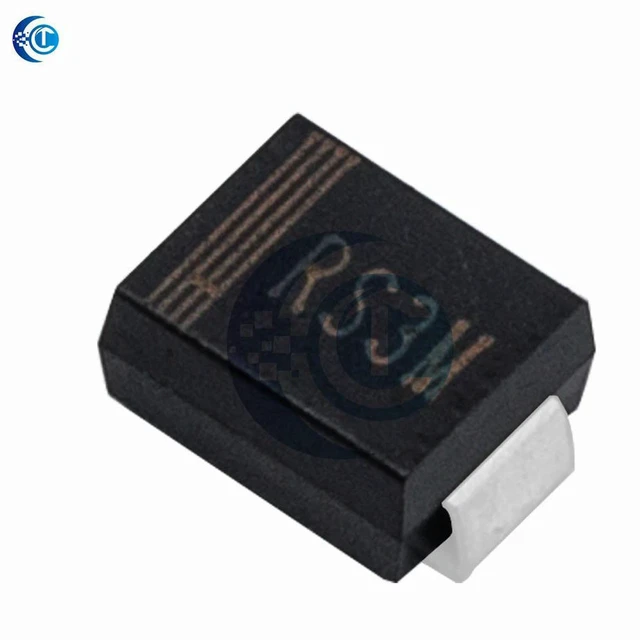

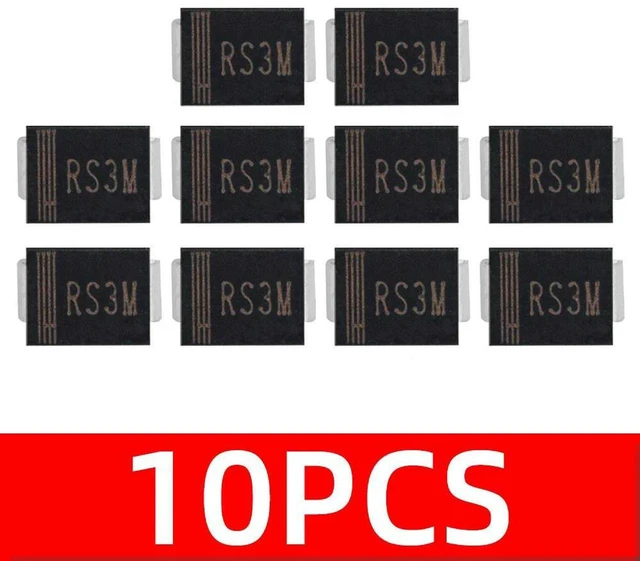

AJMRTC 10PCS/50PCS RS3M SMB DO-214AB Fast Recovery Rectifier Diode, 1000V 3A 1kV 3.0AMPS SMD Surface Mount Diode, Replacement for FR307, for Switching Power Supply, Circuit Repair & Electronic Project
- - Fast reverse recovery time 500ns, minimizes switching loss for high-frequency rectification circuits
- - 1000V peak reverse voltage & 3A average forward current, excellent surge current withstand capability
- - SMB DO-214AB SMD surface mount package, compatible with automatic pick-and-place PCB assembly
- - Direct replacement for FR307, widely used in switching power supplies, inverters and circuit maintenance
- - RoHS compliant, available in 10PCS or 50PCS pack options for prototype, repair and bulk use
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC RS3M fast recovery SMD rectifier diode adopts SMB DO-214AB surface mount packaging. It features 1000V reverse voltage rating and 3A continuous forward current, with fast reverse recovery performance to reduce switching heat and power loss. This surface mount diode can substitute FR307 and other equivalent rectifier diodes. It is widely applied in switching power supplies, adapters, inverter circuits, home appliance repair and electronic DIY projects. Compact SMB form factor saves PCB space, suitable for automated SMT soldering. Operating temperature range from -55 to +150 ensures stable performance in harsh working environments. Choose 10PCS or 50PCS quantity to match your circuit prototyping, maintenance and small batch assembly needs.
- Brand: AJMRTC
- Model: RS3M
- Package: SMB / DO-214AB, Surface Mount SMD
- Average Forward Current: 3A (3.0AMPS)
- Peak Reverse Voltage: 1000V (1kV)
- Reverse Recovery Time: 500ns
- Forward Voltage Drop: Max 1.3V @3A
- Operating Temperature: -55 ~ +150
- Quantity Option: 10PCS / 50PCS
