AJMRTC XL6019 DC-DC Step Up Power Module, 5A Adjustable Boost Voltage Converter Regulator 3V-40V Input to 5V-45V Output, DC Boost Power Supply Board for DIY Electronic Projects, Battery, Solar Power
- - Wide voltage range: 3V-40V DC input, adjustable 5V-45V DC output via potentiometer
- - Max 5A switching current, high conversion efficiency up to 94%, stable power output
- - Built-in overcurrent, overvoltage and thermal protection for reliable operation
- - Compact PCB design with screw terminals, easy wiring for DIY electronics and power upgrades
- - 180KHz fixed switching frequency, low ripple, ideal for battery and solar power projects
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

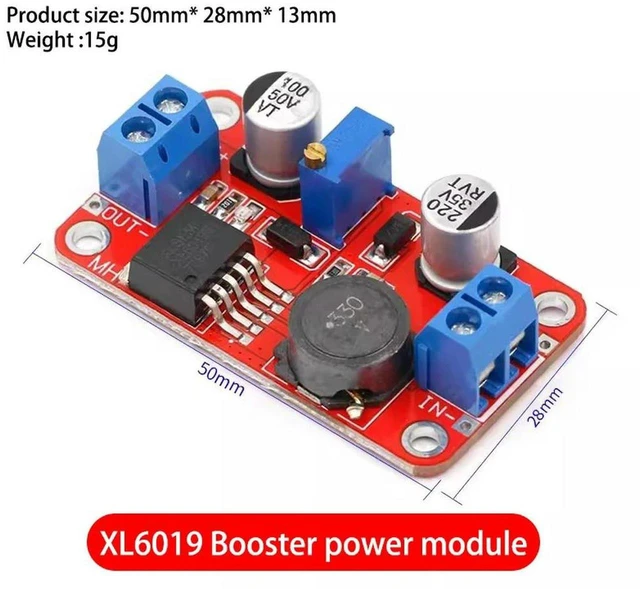

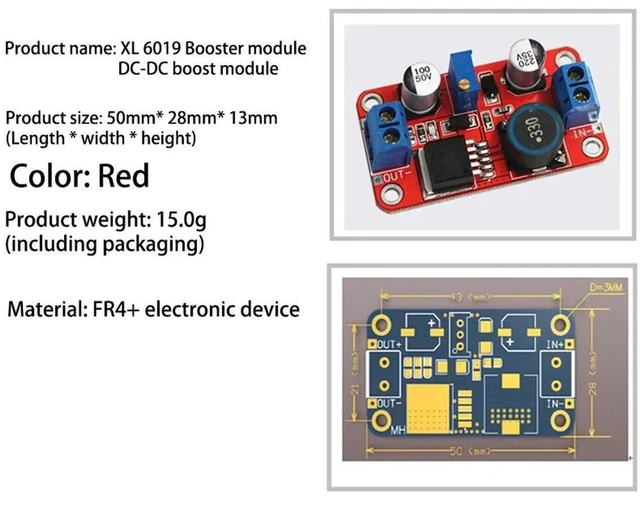

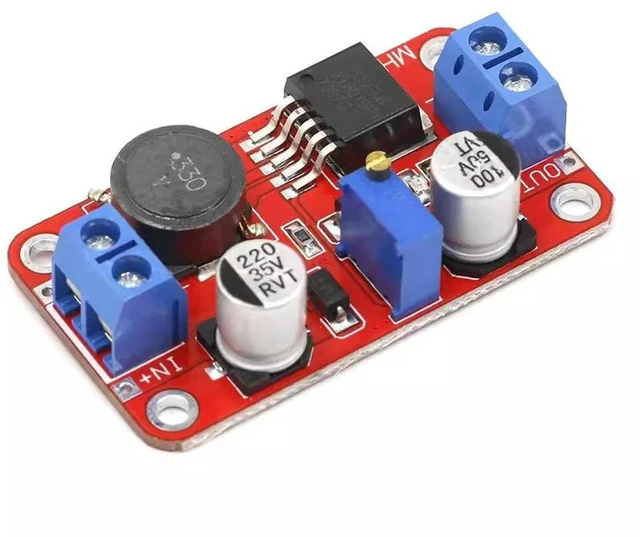

AJMRTC XL6019 DC-DC boost converter module converts low DC voltage to higher adjustable DC voltage. Adopts XL6019 current-mode control chip with integrated power MOSFET, supporting wide input voltage from 3V to 40V and continuously tunable output voltage between 5V and 45V. The module delivers up to 5A switching current with high efficiency and low output ripple. Multiple safety protections including overcurrent, overvoltage and thermal shutdown prevent circuit damage. Equipped with screw terminal blocks for convenient connection. Perfect for DIY power supply, solar power systems, battery voltage boosting, laboratory power test and various electronic modification projects. Please note the recommended continuous working current is under 3A for long-term stable operation.
- Brand: AJMRTC
- Model: XL6019 DC-DC Step Up Module
- Input Voltage: DC 3V - 40V
- Output Voltage: DC 5V - 45V (adjustable)
- Max Switching Current: 5A
- Recommended Continuous Current: 3A
- Switching Frequency: 180KHz
- Max Efficiency: 94%
- Protection: Overcurrent, Overvoltage, Thermal Protection
- Package: 1PCS
