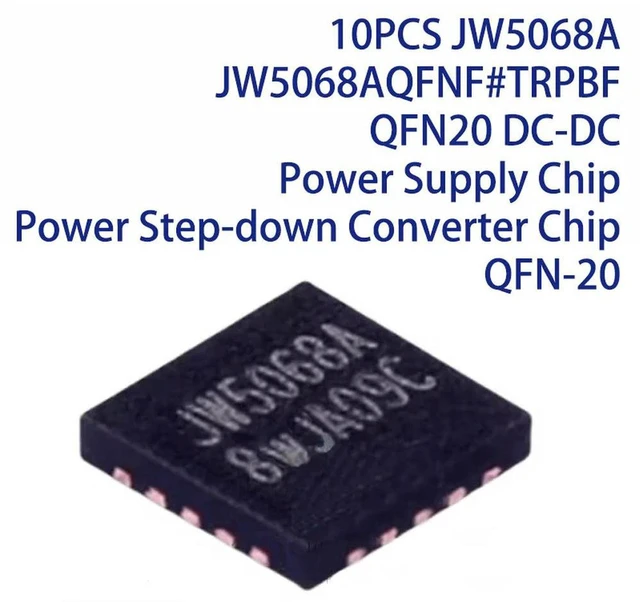

AJMRTC 10PCS JW5068A JW5068AQFNF#TRPBF QFN20 DC-DC Synchronous Buck Converter IC, 4V-26V Input 8A Continuous 16A Peak Step Down Power Supply Chip for Industrial & Consumer Electronics
- - Wide 4V~26V input voltage, delivers 8A continuous and 16A peak output current
- - Up to 95% high conversion efficiency, reduces power consumption and heat generation
- - Multiple built-in protections: thermal shutdown, short circuit, OVP and UVLO
- - 500kHz fixed switching frequency, compact QFN-20 package for simple PCB layout
- - 10 pieces per set, ideal for prototype development, power module and circuit repair
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC JW5068A (JW5068AQFNF#TRPBF) is a fully integrated synchronous DC-DC step-down buck converter. It supports 4V to 26V wide input voltage and provides 8A continuous output current with 16A peak capability. With a fixed 500kHz switching frequency, the IC achieves up to 95% efficiency, lowering heat in long-time operation. It integrates complete protection mechanisms including thermal shutdown, short-circuit protection, overvoltage protection and under-voltage lockout. The small QFN-20 package saves PCB space. This power chip fits industrial control boards, embedded systems, consumer electronics and power module development. Package includes 10 pieces for engineering testing and mass assembly.
- Brand: AJMRTC
- Part Number: JW5068A / JW5068AQFNF#TRPBF
- Package: QFN-20
- Type: Synchronous DC-DC Step-down Buck Converter
- Input Voltage: 4V ~ 26V
- Continuous Output Current: 8A
- Peak Output Current: 16A
- Switching Frequency: 500kHz
- Max Efficiency: Up to 95%
- Protection Features: Thermal Shutdown, Short Circuit, OVP, UVLO
- Quantity: 10PCS
- Application: Industrial Control, Embedded Systems, Consumer Electronics, Power Modules
