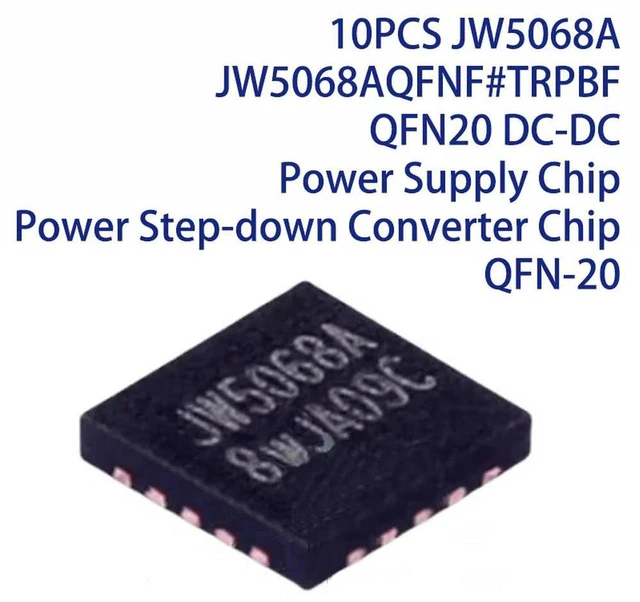

AJMRTC 10PCS JW5068A JW5068AQFNF#TRPBF QFN20 DC-DC Step Down Power Converter Chip, Synchronous Buck Regulator IC QFN-20 for Power Supply Circuit Design & Electronic Repair
- - 10 pieces JW5068A (JW5068AQFNF#TRPBF) synchronous buck power IC, packaged in compact QFN20 (QFN-20) form factor
- - Supports 4V~26V wide input voltage, delivers up to 8A continuous and 16A peak output current
- - Up to 95% high conversion efficiency, maintains good performance even under light load conditions
- - Built-in multi-protection: thermal shutdown, short circuit, overvoltage and under-voltage lockout
- - 500kHz fixed switching frequency, ideal for industrial power, notebook and electronic circuit design
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
AJMRTC JW5068A JW5068AQFNF#TRPBF is a monolithic synchronous step-down DC-DC power regulator chip with QFN-20 package. It adopts I2 control architecture to achieve fast transient response. The chip accepts 4V to 26V input voltage and provides maximum 8A continuous output current, peak current reaches 16A. It achieves up to 95% high efficiency and retains high efficiency at light load. Integrated multiple safety protection mechanisms including thermal protection, short-circuit protection, overvoltage protection and UVLO prevent chip damage. The 500kHz switching frequency reduces the volume of peripheral components. Suitable for industrial control power supply, notebook power, LCD monitor and various electronic power circuit development and replacement.
- Brand: AJMRTC
- Part Number: JW5068A, JW5068AQFNF#TRPBF
- Package: QFN20 (QFN-20, 3x3mm)
- Type: Synchronous DC-DC Step Down Buck Converter IC
- Input Voltage: 4V ~ 26V
- Continuous Output Current: 8A
- Peak Output Current: 16A
- Switching Frequency: 500kHz
- Max Efficiency: 95%
- Protection: Thermal, Short-circuit, Overvoltage, UVLO
- Package Quantity: 10 Pieces
- Application: Industrial Power, Notebook, LCD Monitor, Electronic Circuit Design
