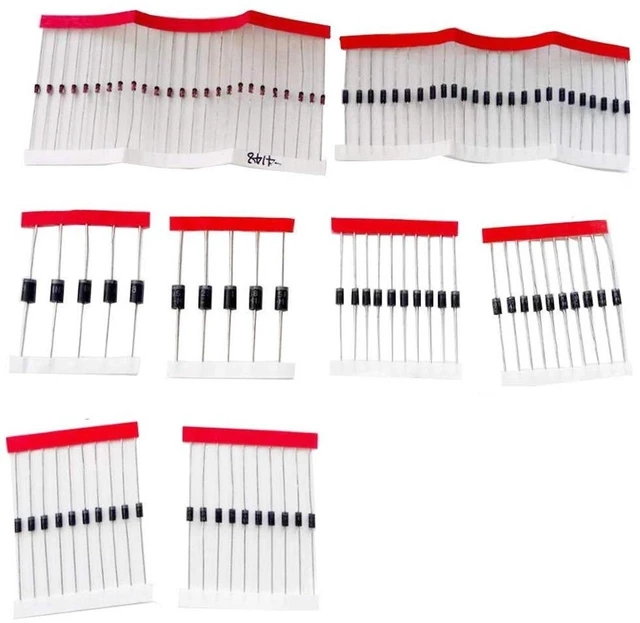

AJMRTC 100Pcs Diode Assortment Kit, 8 Values Schottky & Fast Recovery Rectifier Diodes 1N4148,1N4007,1N5819,1N5399,1N5408,1N5822,FR107,FR207 for Electronic Repair, Arduino DIY Circuit Project
- 1. Contains 8 most commonly used diode models, including signal, rectifier, Schottky and fast recovery types
- 2. Low forward voltage Schottky diodes (1N5819,1N5822) for high efficiency low-loss power circuits
- 3. Fast recovery FR107 & FR207 diodes, suited for high-frequency switching and SMPS applications
- 4. 1N4148 high-speed switching diode for signal routing, logic gate and small signal control circuits
- 5. Axial through-hole DO-35/DO-41 package, breadboard compatible, pre-sorted labeled packaging
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
AJMRTC 100-piece diode assortment kit gathers 8 frequently-used axial lead diodes for electronics makers, maintenance technicians and students. The set includes 1N4148 signal switching diode, 1N4007 1A general rectifier, 1N5819 & 1N5822 Schottky diodes, 1N5399,1N5408 high current rectifiers, FR107 and FR207 fast recovery diodes. Schottky diodes feature ultra-low forward voltage drop to reduce heat loss for reverse polarity protection and OR-ing power circuits. FR series fast recovery diodes deliver short reverse recovery time and work reliably in high frequency switching power supplies. 1N4148 is widely used for small signal switching and logic level control. All diodes adopt standard through-hole axial packaging and can be soldered on PCB, perfboard or plugged directly into breadboards. Each type is separated and labeled clearly, which helps you pick the right component quickly during prototyping, circuit debugging or equipment repair. This all-in-one kit eliminates the trouble of buying individual diode models separately, ideal for Arduino, Raspberry Pi, analog circuit design, power supply modification and lab teaching experiments.
Specifications
Brand: AJMRTC
Total Quantity: 100 Pcs

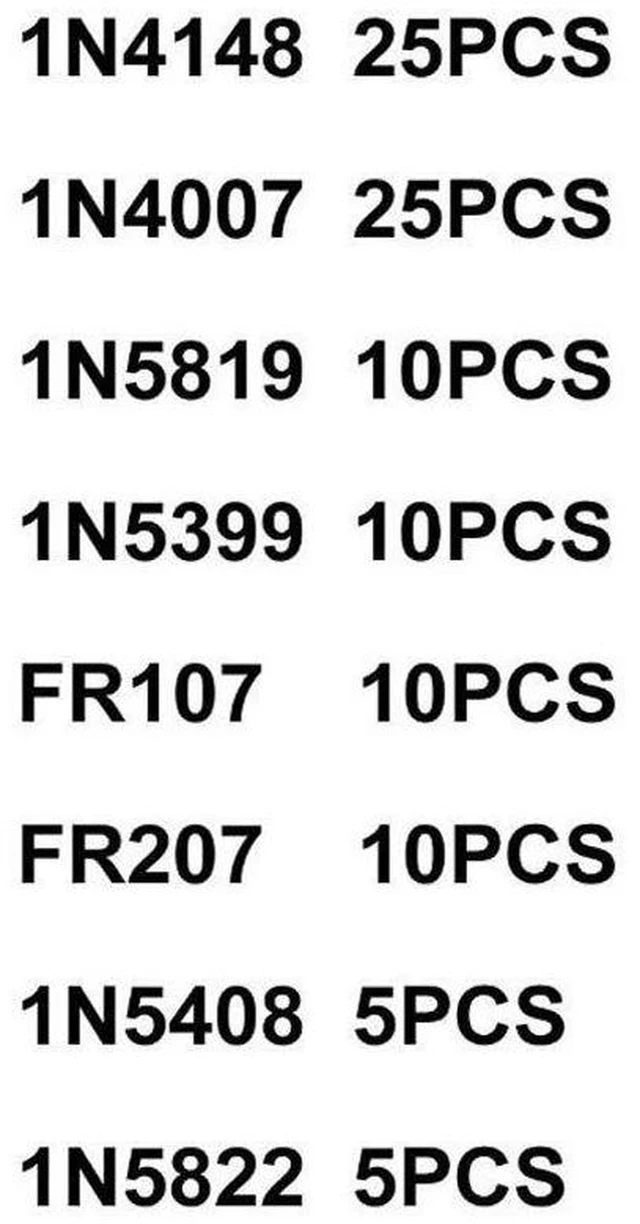

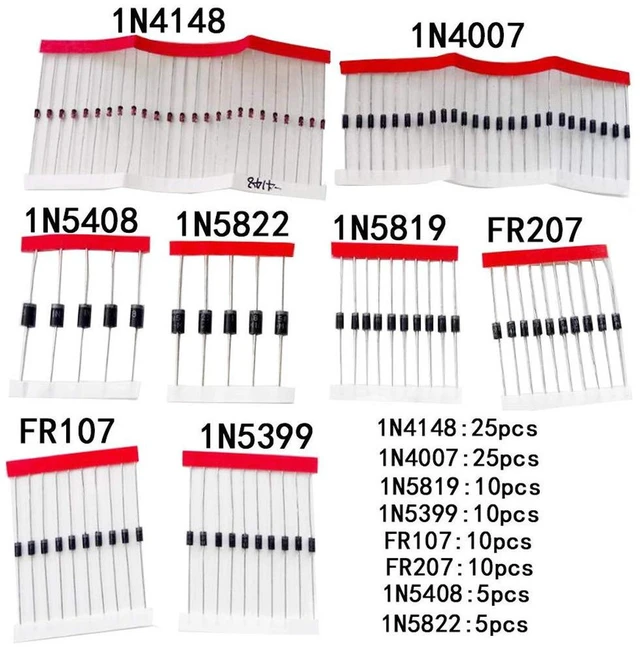

Included 8 Types: 1N4148, 1N4007, 1N5819, 1N5399, 1N5408, 1N5822, FR107, FR207
Package Style: Axial Lead Through-Hole
Package Body: DO-35 / DO-41
Diode Category: Switching Diode, Rectifier Diode, Schottky Diode, Fast Recovery Diode
Feature: Low Vf, Fast Recovery, High Reverse Voltage
Marking: Cathode Mark Strip for Polarity Identification
Compatibility: Breadboard, Perfboard, Universal PCB
Application: Circuit Prototyping, Power Rectification, Flyback Protection, Electronics Repair, Arduino DIY, Student Electronic Experiment
Storage: Separately Packed with Labels
Operating Temperature: -55 ~ +125
Note: Check cathode band carefully before soldering to avoid reverse installation
