$380.00
Meet Your Seller

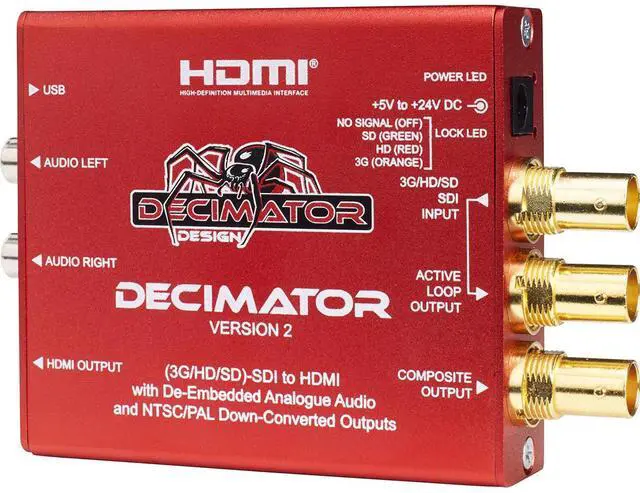

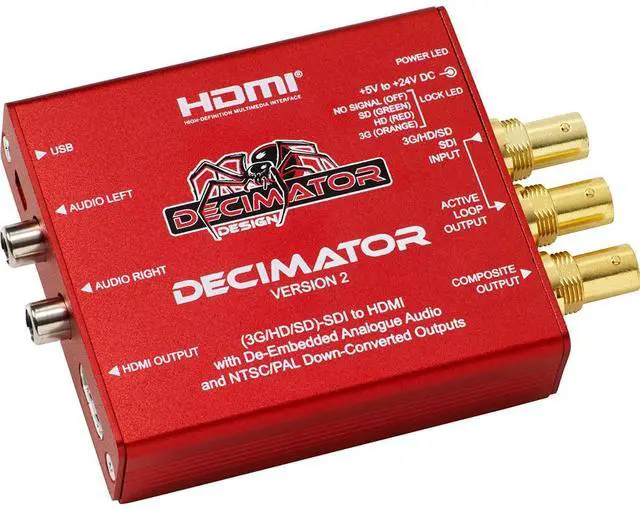

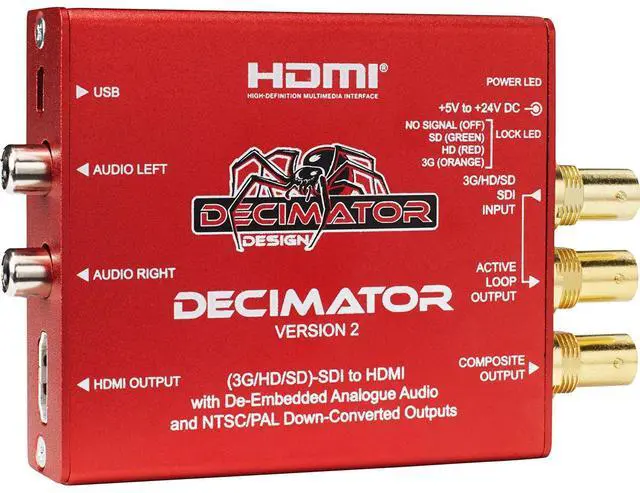

Decimator Version 2 Simultaneously Scales SDI to Both HDMI & NTSC/PAL #DD-DEC-2
- Video Formats:3G:SMPTE 424M at 2.97 and 2.967Gb/s1080p at 60/59.94/50HzHD:SMPTE 292M/274M/296M at 1.485 and 1.435Gb/s1080i at 60/59.94/50Hz1080p/psf at 30/29.97/25/24/23.98Hz720p at 60/59.94/50/30/29.97/25/24/23.98HzSD:SMPTE 259M at 270Mb/s625i50525i59.94
- Inputs:(3G/HD/SD)-SDI 10-bitConditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
- LED Status:PowerSignal Lock
- Power:+5V to +24V DC, 5 WattsPositive Centre Pin
- DIP Switch Controls:NTSC or PAL SelectionSD PedestalCrop 16:9 to 4:316:9 or 4:3 Aspect Selection Stereo Pair selection for RCA Analogue AudioHDMI Output format select
- Outputs:HDMISD-Composite1x (3G/HD/SD)-SDI Active Loop-Through2 x RCA for De-embedded Analogue Audio (20dBFS=-10dBu)
- Dimensions:90 x 71 x 23mm / 3.54 x 2.79 x 0.90"
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Decimator Version 2 Simultaneously Scales SDI to Both HDMI & NTSC/PAL offers a choice of NTSC or PAL output, auto detects 3G, HD or SD (26 formats are supported) and can handle switching of synchronous sources. Low latency 3G/HD to SD Down-conversion with ARC (Aspect Ratio Conversion) of 16:9 to 16:9 Anamorphic, 16:9 to 4:3 Letterbox or 16:9 to 4:3 Center Cut (crop to 4:3 ). Also features SD Pass-through and full 10-bit data path and multipoint interpolation. The Decimator 2 design allows you to view any format of SDI on a composite or HDMI monitor with de-embedded audio.
Scale either output simultaneously and perform aspect ratio conversion on the HDMI output. Control either via USB on a Windows app or on-unit using the dip switch. The unit comes with a Locking DC Power Supply, HDMI Cable, USB Cable & Mounting Bracket.
Scale either output simultaneously and perform aspect ratio conversion on the HDMI output. Control either via USB on a Windows app or on-unit using the dip switch. The unit comes with a Locking DC Power Supply, HDMI Cable, USB Cable & Mounting Bracket.
