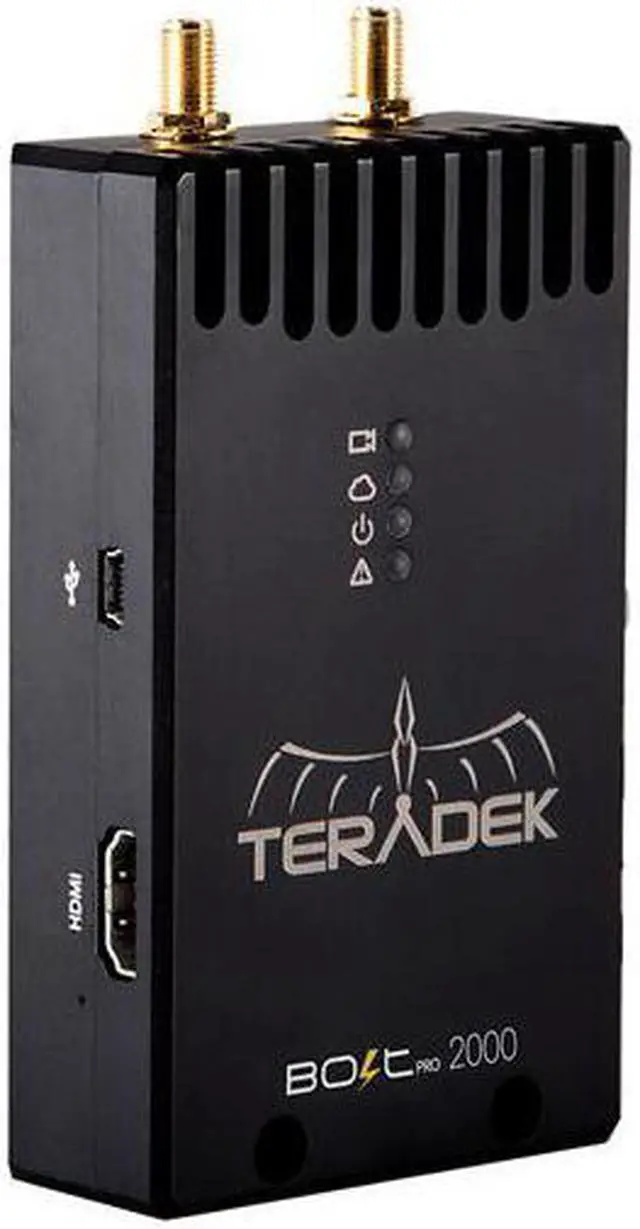

Teradek Bolt Pro 2000 3G-SDI and HDMI Wireless Video Transmitter #10-0991
- Input:3G-SDI and HDMI
- Video resolution:1080p60/59.94/50/30/29.97/25/24/23.981080psf30/29.97/25/24/23.981080i60/59.94/50720p60/59.94/50480p59.94/576p50 (via HDMI ports only)480i(NTSC)/576i(PAL)
- Color Sampling:Depends on the input/output types and RX settings; SDI 10-bit with no format conversion and FPGA v.1.1.0 or later; 8-bit color for the rest
- Video Inputs:1 x 75 Ohm BNC1 x Type A receptacle HDMI
- Video Outputs:1 x 75 Ohm BNC(Loop-out)
- Delay(TX to RX):<0.001sec
- Audio Format support Wireless:48kHz 24-bit PCM
- Frequencies:Non-DFS Frequencies: US : 5.19 - 5.23 GHz and 5.755 - 5.795 GHzDFS Frequencies: US : 5.27 - 5.55 GHz and 5.67 GHz
- RF power:22dbm EIRP(with two 5dbi TX antennas)
- Range:Up to 2000' line of sight
- Unicast / Multicast:Yes
- Encryption:AES-128
- Noise rejection:Can coexist with Wi-Fi and 5GHz cordless phones
- Input Power:2-Pin Lemo 7-28 VDC
- Internal Battery:No
- Power Consumption:1080p60: 7.7 Watts
- LCD Screen:No
- Firmware:Upgrade via Mini-USB
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The Teradek Bolt 2000 is a zero delay wireless video system that transmits uncompressed 1080p60, 4:2:2 video up to 2000ft over the unlicensed 5GHz band. Bolt 2000 is multicast capable up to 4 receivers and comes in 3G-SDI, HDMI and dual input/output varieties. All Bolt systems include the new GRAB engine, which allows users to output over USB 3.0 directly into a DIT cart or laptop.
USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.
Real-Time Cross Conversion & Extras
All Bolt models support real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. Each model also outputs a test pattern when the video signal is lost and both the 600 and 2000 models support quick RX pairing via the OLED screen and manual frequency selection.
USB 3.0 GRAB Engine
Capture cards are a thing of the past with Teradek's new GRAB Engine. Every Bolt RX includes a USB 3.0 output that allows you to ingest Bolt's uncompressed video feed directly into a computer or DIT cart with no added delay.
Real-Time Cross Conversion & Extras
All Bolt models support real-time format conversion from TX to RX, allowing you to automatically cross convert from HDMI to 3G-SDI (or vice versa) without any extra hardware. Each model also outputs a test pattern when the video signal is lost and both the 600 and 2000 models support quick RX pairing via the OLED screen and manual frequency selection.
