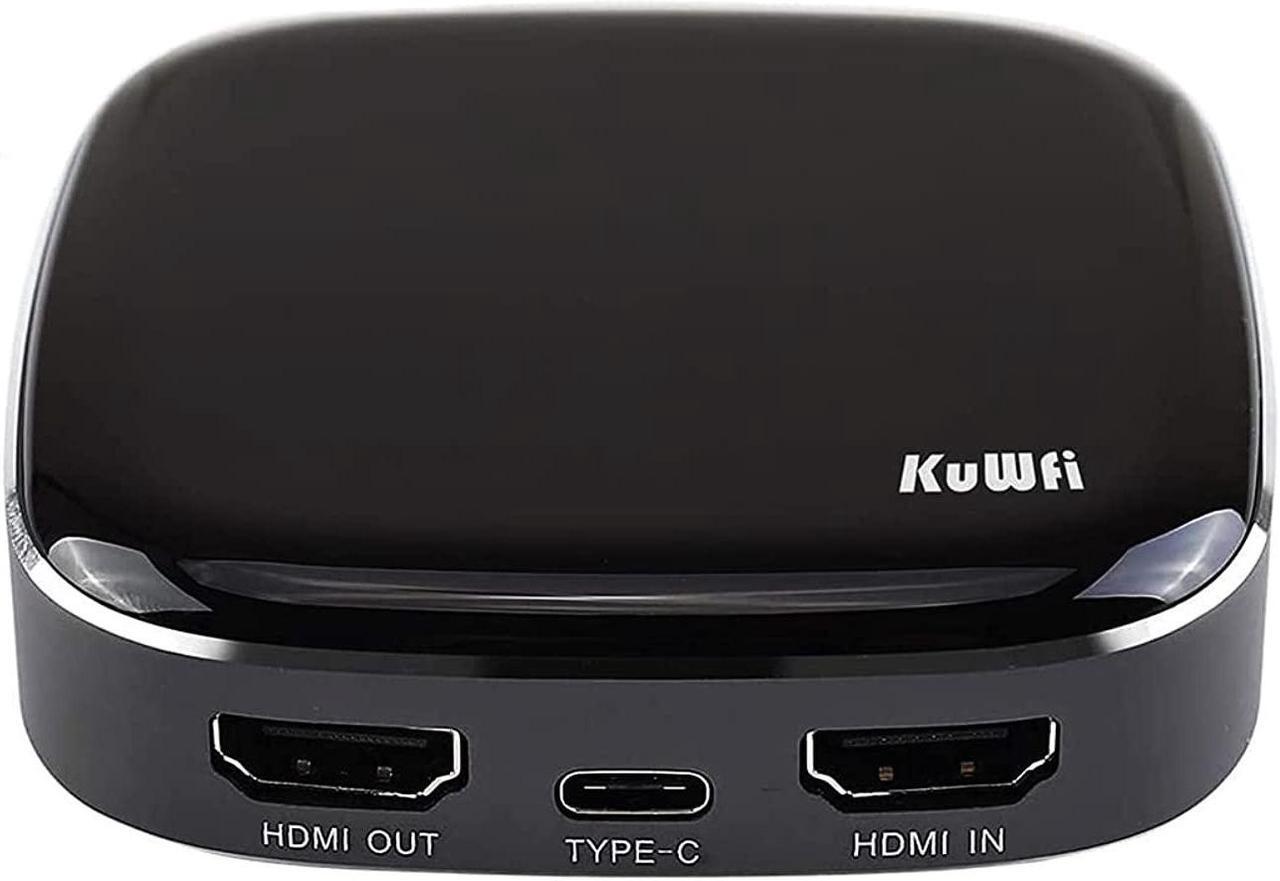

Feature 1. Can capture single HDMI video signal
2. Record resolution up to 1080p / 60Hz
3. Support MJPEG and YUY2
4. Support UAC&UVC protocol, support 48 KHz PCM audio sampling rate
5. Partial need to install the driver on some win7
6. Compatible with Windows 7, 8, 8.1, 10, Linux OS, Mac OS operating system 7. Type-C output, up to 300~350MB / s bandwidth
8. Can automatically detect the input video format and automatically adjust the output resolution and frame rate
9. Can automatically detect the input audio format and convert it to 48KHz PCM audio 10. 2 captures can be used on one PC
11. Support firmware online upgrade to better compatibility
12. The picture quality is clearer, the RGB color range is 0~255 HDMI input port (Resolution Supported ) 4K/60, 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
HDMI input formats: Compatible with HDMI 1.4 standard, maximum bandwidth support 225MHz 4K/30Hz, 12bit deep color
Type-C output: Up to 300~350MB/s bandwidth
Preview resolution: 1920x1080/1680x1050/1280x1024/1280x960/1400x900/1440x900/1360x768/1366x768/1024x768/1280x720/800x600/720x576/720x480/640x480
Frame rate: 25/ 29.97 /30/50/ 59.94 /60 fps

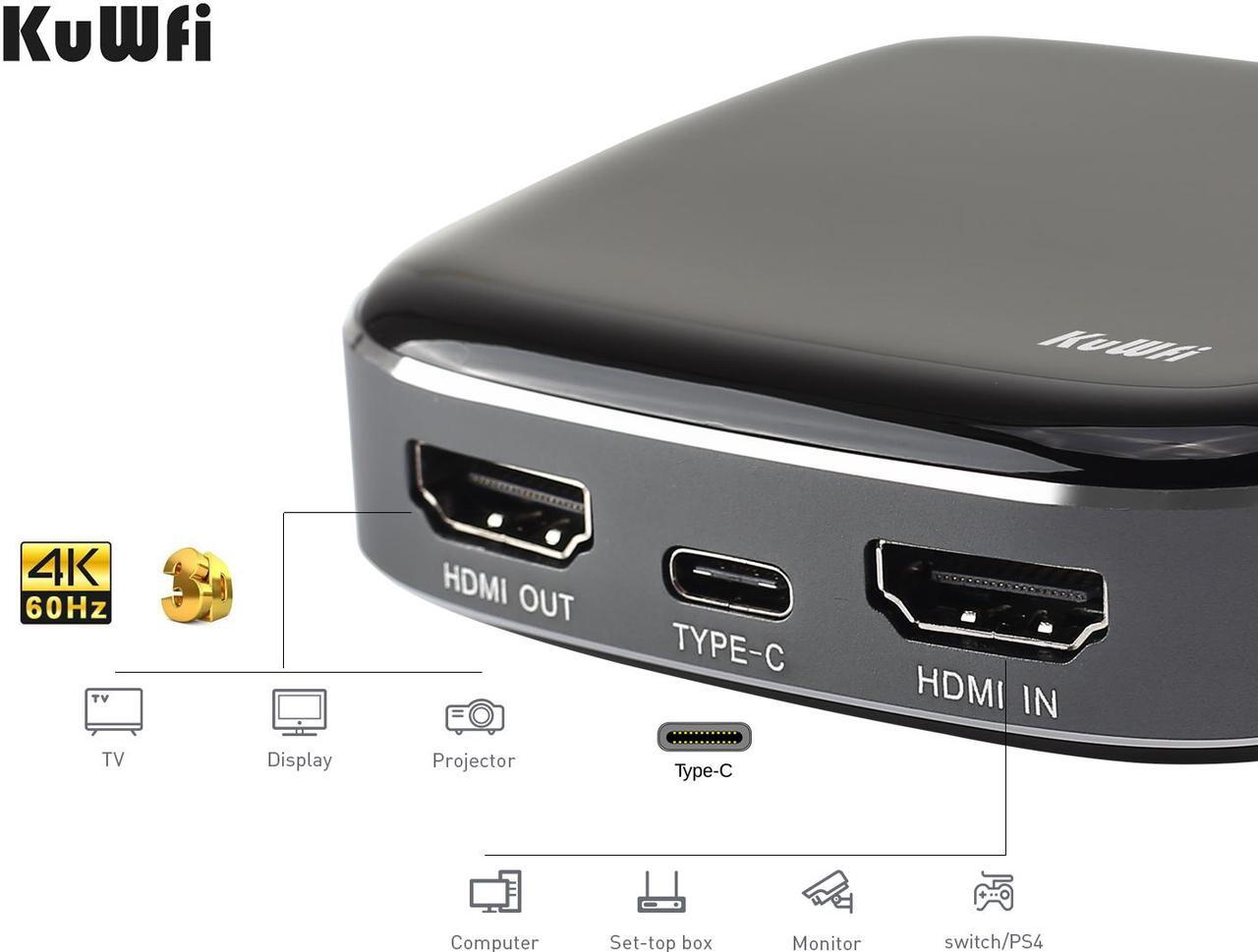

HDMI loop-out (supported resolution): 4K/60, 4K/30, 1080P/60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50/60, 480P, 576P, 1280x1024, 1280x960, 1024x768, 800x600, 640x480 Computer system requirements Windows 10 / Windows 8.1 / Windows 7 (SP1)
Desktop PC: Intel Core i5-4440 3.10 GHz + NVIDIA GeForce GTX 660 or above
Notebook: Intel Core i7-4810MQ + NVIDIA GeForce GTX 870M or above 4 GB RAM (8 GB recommended)
Warm Tips:
1. Do not use HUB or USB extension cable. 2. A low computer configuration will cause the recording screen to blinking randomly or black.
