BZBGEAR USB-C 12G-SDI Video Capture Card Box with Scaler/HDMI 2.0/12G-SDI Loop Out and Audio

The BG-12GCSA is a USB-C 12G-SDI video capture device with a scaler, HDMI 2.0/12G-SDI loopout, and audio that provides a professional way to capture SDI video signals. It adopts a USB 3.1 Type-C Gen 1 (USB 3.0) interface, which allows for high-speed data transmission. Additionally, the SDI input and loopout can support up to 4K2K@60.

Users can connect the BG-12GCSA to a 4K2K@60 source and capture Ultra HD (4K2K@30) video. Furthermore, this unit can capture and display original, uncompressed SDI video, with a more realistic color rendition. The BG-12GCSA uses large volume image buffer technology, which effectively avoids video tearing. The high sampling rate and accuracy ensure that the captured videos have a high degree of sharpness, rich details, and fewer color edges.

Features:

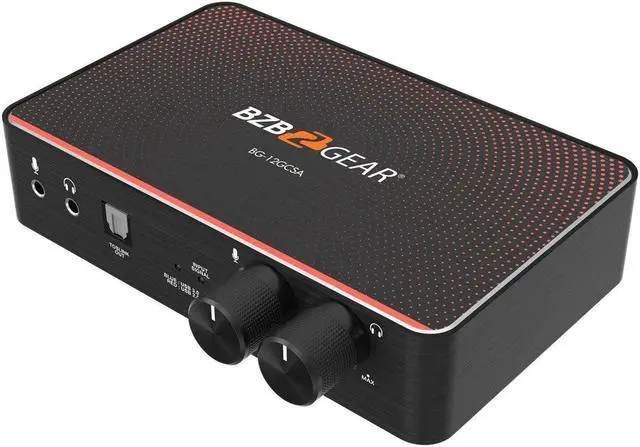

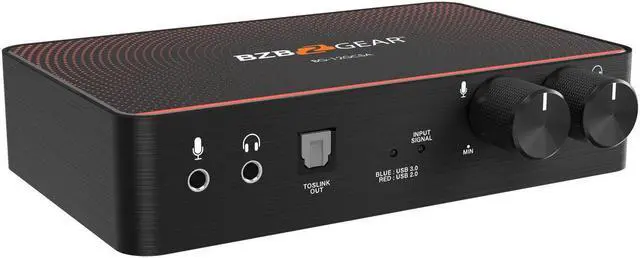

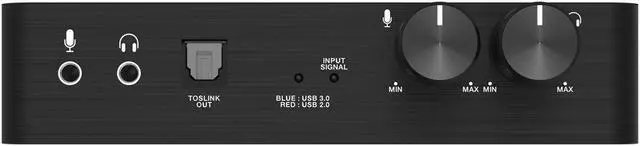

• Volume control - Use the volume control knobs to adjust the MIC/Headphone volume


• Plug and Play - Auto-detection of video format


• Software Compatibility - Compatible with most 3rd party software such as OBS Studio and AMCap


• Mic-in-mix - Allows the microphone’s audio input to be combined or mixed with the audio that is being transmitted through the SDI connection


• Low Latency - 3~4ms at 1080P


• Auto-Detection - Auto 12G/6G/3G/HD-SDI detection


• SDI video and audio streams over USB 3.1 Type-C Gen 1


• UVC1.0/1.1/1.5


• Video resolutions up to 4K2K@30/1080P@120 (Video stream over USB-C)


• HDMI up to 4K2K@60


• SDI input & loopout resolutions: 720p@50,[email protected], 720p@60, 1080i@50, [email protected], 1080i@60,[email protected], 1080p@24, 1080p@25, [email protected], 1080p@30, 1080p@50, [email protected], 1080p@60, [email protected], 4K2K@24, 4K2K@25, [email protected], 4K2K@30, 4K2K@50, [email protected], 4K2K@60


• Bit Rate: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps


• Deinterlacer & scaler (upscale to 1080p@120Hz)


• SDI audio extraction


• Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS


• USB 3.1 Gen 1 (RGB/YUY2/NV12) (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)


• USB-C reversible
