SDI (SD-SDI/HD-SDI/3G-SDI) to HDMI Converter With USB Power 3G HD SD-SDI Video Mini Converter Adapter With Audio For Camera Auto Format for Camcorder Camera to TV

SDI to HDMI Converter Designed for SDI to HDMI Converter allows you easily display your work on common HDMI displays. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. This converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI, and 3G-SDI video signals

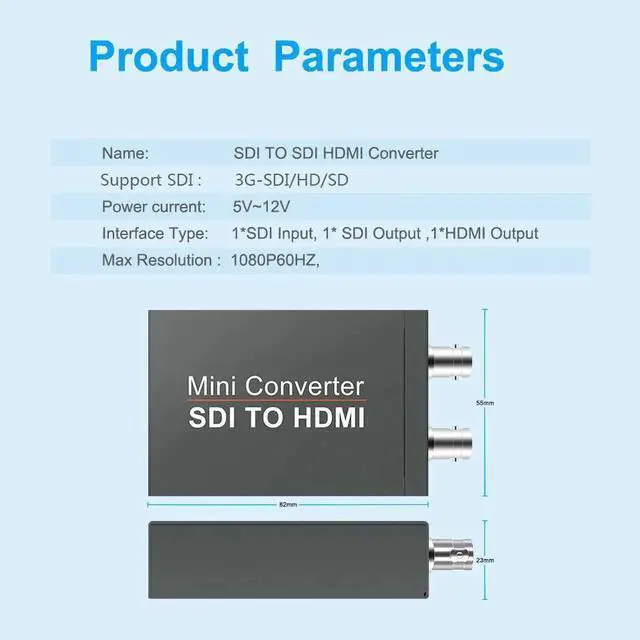

Specifications:

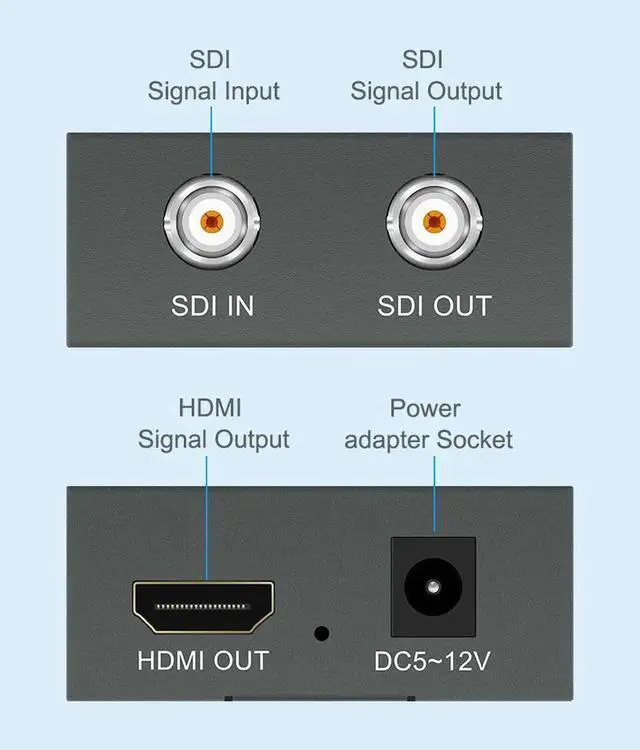

Input port: 1 x BNC (SD-SDI/HD-SDI/3G-SDI)

Output port: HDMI Port, 1 x SDI Output (BNC)

Output HDMI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz

Input SDI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz, SD-SDI/HD-SDI/3G-SDI

Input video formats: 3G, HD, and SD-SDI(auto-selected); SMPTE-259 / 274 / 292 / 296 / 372 / 424 / 425;2 * BNC

Output audio formats: HDMI v1.3a, 30/36 bits per pixel, RGB or YUV,SD,HD,720p50/60,1080i 50/60,1080p 24 / 25 / 30 / 50 / 60. HDMI Standard type a connector

Input audio formats: SDI embedded audio, HDMI embedded audio,24 bit/48KHz,8 channels max

SD/HD/3G-SDI InputSDI to HDMI Micro Converter, Work well for nearly all 3G/HD SDI devices, such as RED Scarlet, BMD Atem, Security Camera, capture card, Campus TV network, DVR

etc(Note: When using ATEM with this device, please forcibly set the resolution of ATEM to 720P@60Hz) HDMI and SDI Loop OutputsSupport 1 HDMI output and 1 SDI Loop OutputThe transferring data rate is up to 2.97G bps. Supports SD and HD SignalsConvert SDI to HDMI and SDI both or seperately, support 1920x1080P@60Hz, 1920x1080I@60Hz, 1280x720P@60Hz Automatic

InputSignalDetection: Support Auto detection of SD or HD, Supports 10-bit Deep Color, Work as SDI Repeater & Extender with the Re-clock function and support multiple cascaded(Note: It is best not to connect in series with other converters of the same type.)
