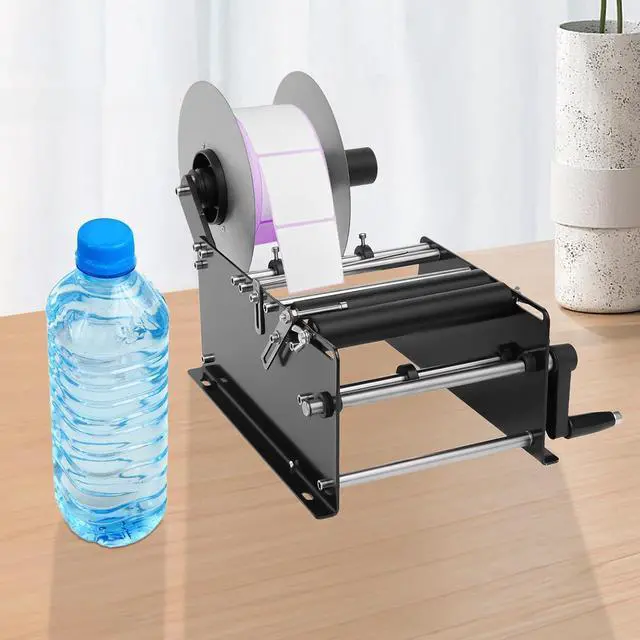

Manual Round Labeling Machine, MT-30 Round Bottle Labeling Machine Semi Automatic Label Applicator with Handle for Bottles Diameter Round Glass Plastic Metal Bottle
- GOOD MATERIAl This labeling machine is made of iron and uses a high-temperature baking paint process to make it sturdy, durable, and not easy to deformation to extend its service life.
- HIGH EFFICIENCY This labeling machine is equipped with a symbolic hand joystick with ergonomic design to adjust the speed of labeling bottles. The labeling efficiency is about 10-30 pcs/min (depending on the different bottles), which is efficient and time-saving. It has a labeling accuracy of ±0.5mm/0.01inch, which is high enough to make the label position of the product neatly organized.
- LABOR-SAVING With it, you don't have to struggle with subway labels. You just need to put the bottle on it and then shake the hand joystick to finish the labeling work easily, which is very labor-saving.
- SAVING SPACE It can be freestanding and can be mounted on a desktop. If you install it on the desktop, it will not take up any floor space and can save you a lot of space.
- APPLICATION It can be
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Details
Round Corners: This product has very rounded edges to prevent your hands from being cut and is safe to use.
Silicone Ring: It can provide reverse tension to the label roller and fix the position of the roller, which can make it less likely to move. You can use it with peace of mind.
Paper Supply Tray: It holds the label cartridge in place and prevents it from falling.
Bottle Bottom Fixer: The bottle bottom fixer needs to be aligned with the center of the bottle bottom to fix the bottle position and make it less likely to shift during the labeling process, thus causing the labeling to be skewed.
Positioning Rod: The positioning rod can facilitate the positioning of the bottle and ensure that the labeling height of each bottle is consistent.
Specification
Model: MT-30
Color: Black
Material: Iron
Style: Modern
Process: High-temperature Baking Paint Process
Mounting Type: Desktop Mount, Freestanding
Accuracy: ±0.5mm/0.01inch
Suitable Bottle Diameter: 2-12cm(0.79in-4.72in)
Label Speed: 10-30pcs/min
Label Roll Inner Diameter: 75mm/2.9inch
Laber Roll Out Diameter: 250mm/9.8inch
Label Width: 10-110mm/0.3-4.3inch
Label Length: 10-300mm/0.3-11inch
Net Weight: 5kg/11.02lbs
Gross Weight: 5.5kg/12.13lbs
Package Size: 42*25*28cm/16*9.8*11.0inch
Installation
1. Attach the label cartridge to the side of the machine with screws and nuts.
2. Attach the nut and the label cartridge with a silicone ring.
3. Fix the paper supply tray and the middle part with screws.
4. Insert the paper supply tray into the label cartridge.
5. Attach the hand joystick to the side of the machine with screws.
6. Attach the remaining part of the hand joystick.
7. The installation is complete.
How to Use
1. Use an allen key to unscrew the paper supply tray.
2. Insert the label into the label roller and reattach the paper supply tray.
3. Pull out a piece of label paper and insert it into the machine in sequence.
4. Place the bottle on top of the machine.
5. Rotate the hand joystick to complete the labeling.
Package Included
1* Labeling Machine
2* Paper Supply Trays
1* Label Cartridge
1 Set* Hand Joystick
3* Allen Keys
1* Silicone Ring
11* Screws
2* Label Tray Clamps
Other Accessories for Assembly
Round Corners: This product has very rounded edges to prevent your hands from being cut and is safe to use.
Silicone Ring: It can provide reverse tension to the label roller and fix the position of the roller, which can make it less likely to move. You can use it with peace of mind.
Paper Supply Tray: It holds the label cartridge in place and prevents it from falling.
Bottle Bottom Fixer: The bottle bottom fixer needs to be aligned with the center of the bottle bottom to fix the bottle position and make it less likely to shift during the labeling process, thus causing the labeling to be skewed.
Positioning Rod: The positioning rod can facilitate the positioning of the bottle and ensure that the labeling height of each bottle is consistent.
Specification
Model: MT-30
Color: Black
Material: Iron
Style: Modern
Process: High-temperature Baking Paint Process
Mounting Type: Desktop Mount, Freestanding
Accuracy: ±0.5mm/0.01inch
Suitable Bottle Diameter: 2-12cm(0.79in-4.72in)
Label Speed: 10-30pcs/min
Label Roll Inner Diameter: 75mm/2.9inch
Laber Roll Out Diameter: 250mm/9.8inch
Label Width: 10-110mm/0.3-4.3inch
Label Length: 10-300mm/0.3-11inch
Net Weight: 5kg/11.02lbs
Gross Weight: 5.5kg/12.13lbs
Package Size: 42*25*28cm/16*9.8*11.0inch
Installation
1. Attach the label cartridge to the side of the machine with screws and nuts.
2. Attach the nut and the label cartridge with a silicone ring.
3. Fix the paper supply tray and the middle part with screws.
4. Insert the paper supply tray into the label cartridge.
5. Attach the hand joystick to the side of the machine with screws.
6. Attach the remaining part of the hand joystick.
7. The installation is complete.
How to Use
1. Use an allen key to unscrew the paper supply tray.
2. Insert the label into the label roller and reattach the paper supply tray.
3. Pull out a piece of label paper and insert it into the machine in sequence.
4. Place the bottle on top of the machine.
5. Rotate the hand joystick to complete the labeling.
Package Included
1* Labeling Machine
2* Paper Supply Trays
1* Label Cartridge
1 Set* Hand Joystick
3* Allen Keys
1* Silicone Ring
11* Screws
2* Label Tray Clamps
Other Accessories for Assembly
