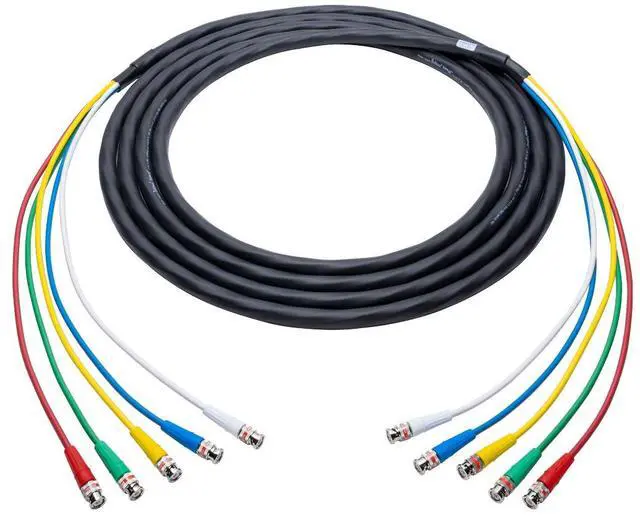

Laird Laird Digital Cinema 4505R 5-Channel 12G-SDI/4K UHD BNC to BNC Cable (15')

An exceptional solution for high-definition video transmission, the Laird 4505R 5-Channel 12G-SDI/4K UHD BNC to BNC Cable effortlessly surpasses the 12GHz 4K UHD coaxial barrier. This next-generation RG59 BNC cable is specifically engineered to manage 12GHz 4K UHD signals up to 150 feet and 3G-SDI signals up to 433 feet, serving as the vital connection between your 4K video equipment, cameras, and switchers. Handcrafted with precision, these cables feature the 4505R 4K Ultra-High-Definition RG59 coaxial cable for 12G-SDI, making them an uncomplicated choice for establishing your studio infrastructure and backbone. Simplify your setup by replacing the need for dual link and quad link cables with this single, efficient solution.

Ready to accommodate today's high bandwidth 12G-SDI signal/data serial interface demands, Laird's BNC cables are designed with a silver-plated copper center conductor and a cable diameter of less than 1/4", making them an optimal choice for low-profile cable runs. The 4505 Series is the 12G-SDI equivalent of Belden's renowned 1505 cable. While Belden may list the maximum transmission distance as 208 feet, Laird certifies this cable to function at a maximum transmission distance of 150 feet for 12G-SDI. This certification ensures 100% functional signal integrity without any CRC errors. Although your 12G-SDI ST 2082 signals may operate at or beyond the manufacturer-certified lengths without issues, the presence of CRC errors could result in drops in audio, video, meta, and ancillary data.

However, in most circumstances, video integrity remains intact at OEM distance. Custom lengths are always available to meet your specific needs.
