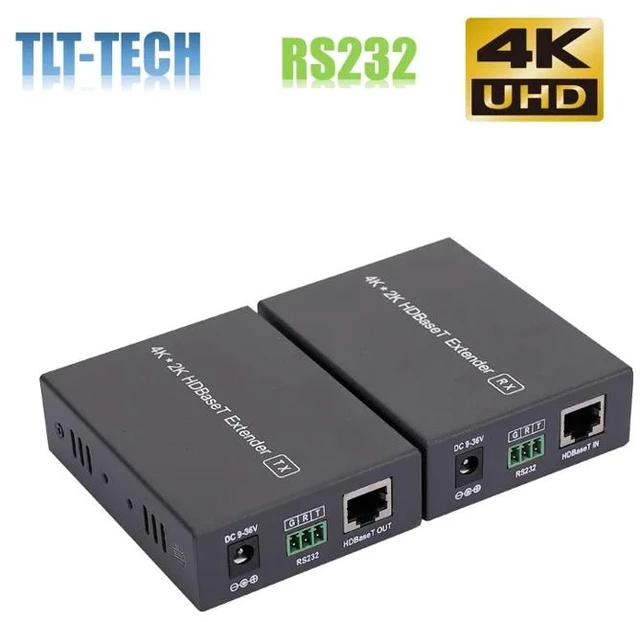

TX RX (EUR Plug),TLT-TECH 2020 Best 4K 60Hz HDMI HDBaseT Extender With IR RS232 70M 4K HDMI POC Extender Over RJ45 Cat5e/6 Cable

TLT-TECH 2020 Best 4K 60Hz HDMI HDBaseT Extender With IR RS232 70M 4K HDMI POC Extender Over RJ45 Cat5e/6 Cable
Products Description

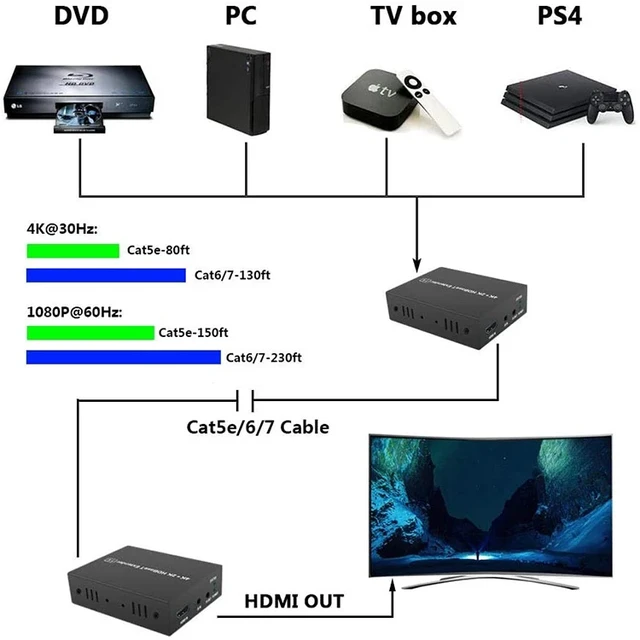

* Transmits HDMI video and audio signals up to 70m over a single CAT6 cable;
* Support video resolution up to 1920*1080P@60Hz and 4K*2K, support 3D;
* Support HDBaseT technology;

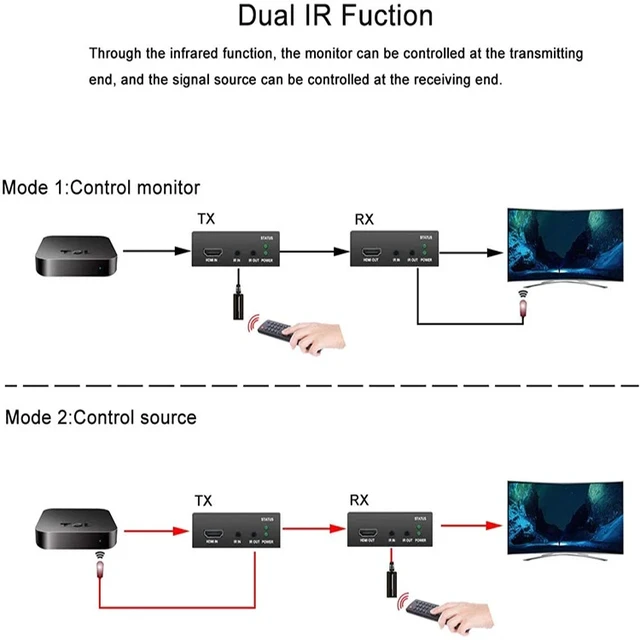

* Support RS232 and IR signal bidirectional transmission, baud rate self-adaptive;
* Compliance with HDMI 1.4 and HDCP 1.2 standard;
* High compatibility, can auto-match source and display device;
* Built-in automatic adjustment system, make the image smooth, clear and stable;
* Built-in ESD protection system;
* Simple to install, plug and play;
Product Paramenters
Parameter
Description
Video
Standards
HDMI 1.4; HDCP 1.2
Maximum pixel clock
165MHz
Maximum data rate
10.2Gbps
Resolution
1920X1080P@60Hz,4K*2K
Connector
HDMI-A
Impedance
100
IR
Interface
3.5mm earphone seat
Signal type
Digital
Signal direction
Bidirectional
IR frequency
20k-60kHz
RS232
Signal direction
Bidirectional
Baud rate
Self-adaptive, Max:115200bps
Interface
Industrial terminal
Data bits
8
Ethernet
UTP Interface
RJ45
Transmission distance
1080P: CAT6---70m
Other
Power supply
The power adapter: DC 5V/2A
Power dissipation
MAX 6W
Temperature
Operating: -5 ~ +70
Humidity
Operating: 5% ~ 90%
Dimension
105*76*27mm
The warranty
1 year free warranty

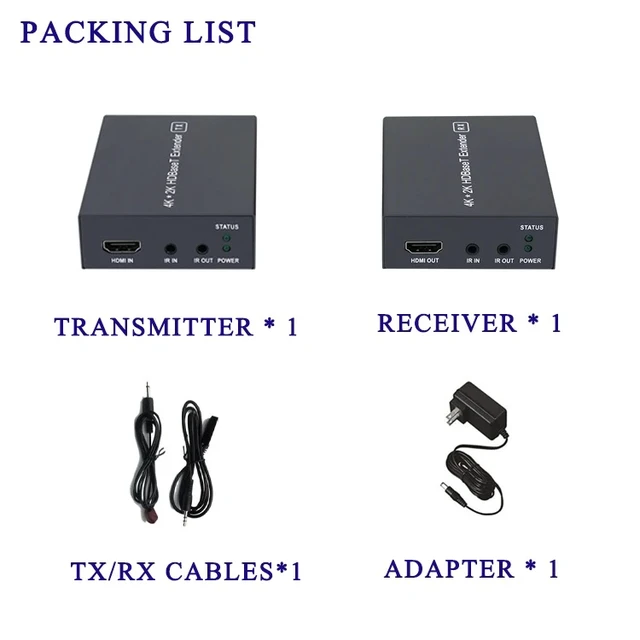

Product packaging
