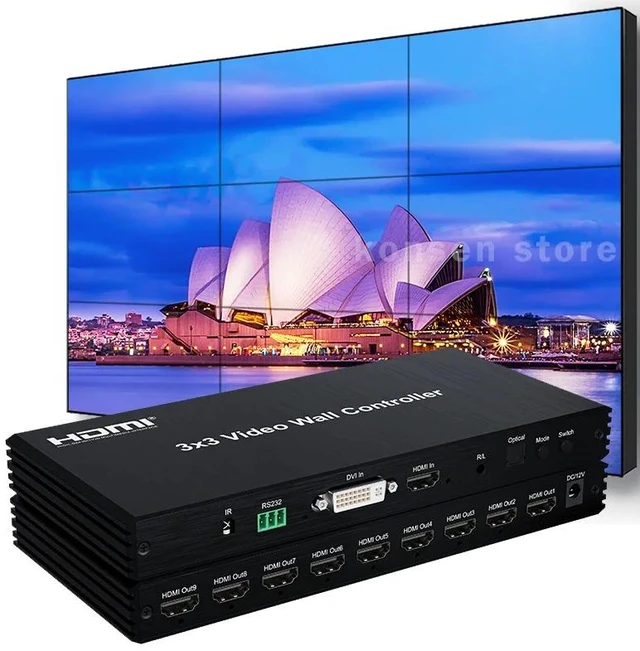

with US Plug,9-Channel Video Wall Controller 3x3 HDMI Wall Splicing Processor 3x1 3x2 2x2 2x3 2x4 6x1 for 9 TV Screens into 1 Wall Display

Introduction:

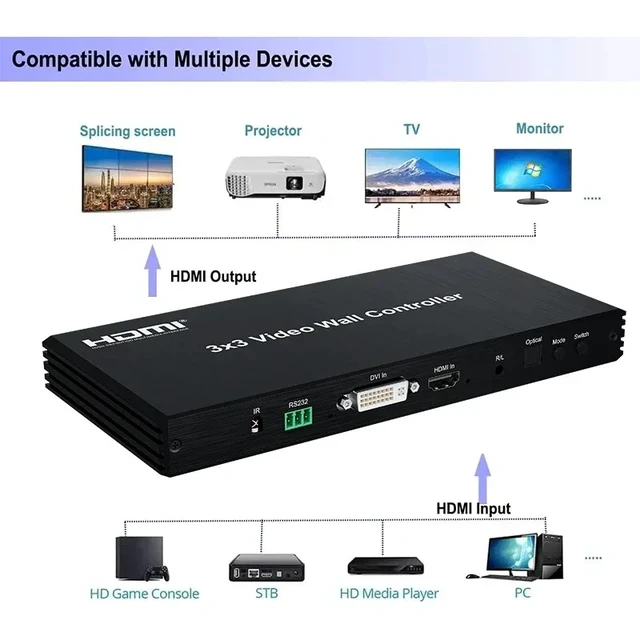

This 3x3 video wall controller, supports 1 HDMI/DVI input and 9 HDMI outputs, the main function is to divide a single complete HDMI HD image signal into 9 display units (Rear projection screens, LCD TV.etc.), to make them form a large dynamic image screen.
Note Pls: This product does not support vertical screens splicing.
If you have any demand,please contact us first.
Features:

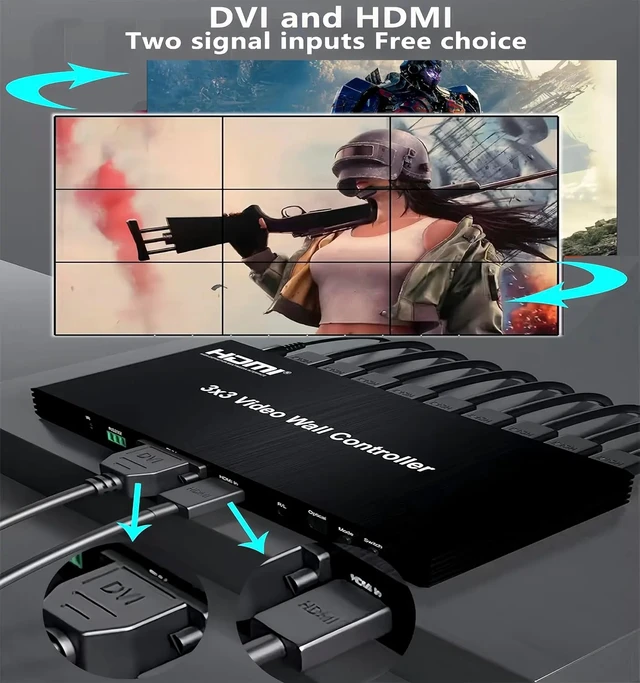

* Support HDMI/DVI video source input;
* Support 9-ways HDMI output;
* With power off memory function;
* Support multiple splicing modes, easy to handle, plug and play;

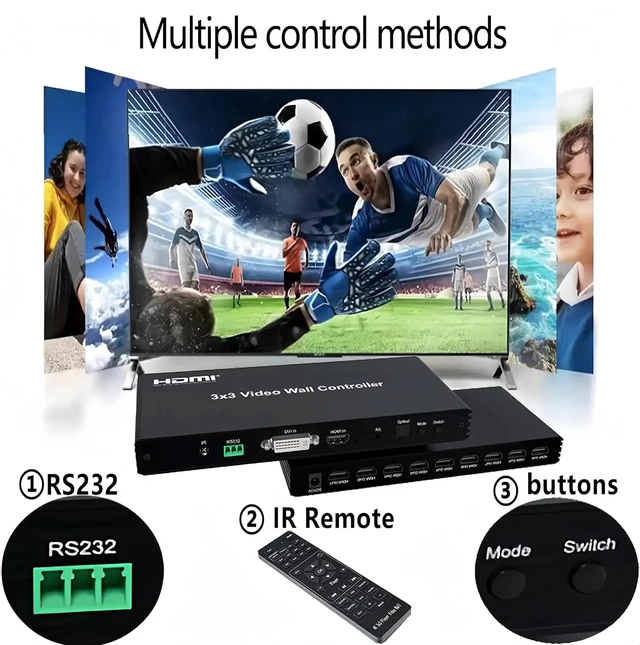

* Support RS232/IR control.
Specifications:
HDMI input resolution .... 1080P/720P/576p/576i/480P
HDMI output resolution ... support 1920x1080/60Hz
Support video formats .... RGB,YCbCr444,YCbCr442,YCbCr440
Support audio formats ....... Stereo
Max bandwidth ......... 4.95Gbit/s(1080P)
Maximum Transfer Rate ...... 3.96Gbit/s(1080P)
Input/output cable length ......... 5M,AWG26 HDMI standard cable
Max working current ....... 0.4A Power adapter input AC (50Hz, 60Hz) 100V-240V Output 12V DC/1A
Operating temperature range ............. (-10 +45)
Dimension (L x W x H) .............. 226x110x25(mm)
Package include:
1 x 3x3 Video Wall Controller
1 x Remote contro
1 x 12V DC power adaptor
1 x User manual
