AU Plug,4K for HDMI 60Hz DP Video Multi-Screen Box Video Wall Controller Splicer 2x2 1x3 1x4 2x1 3x1 4x1 for TV PC Monitor Projector

Introduction:

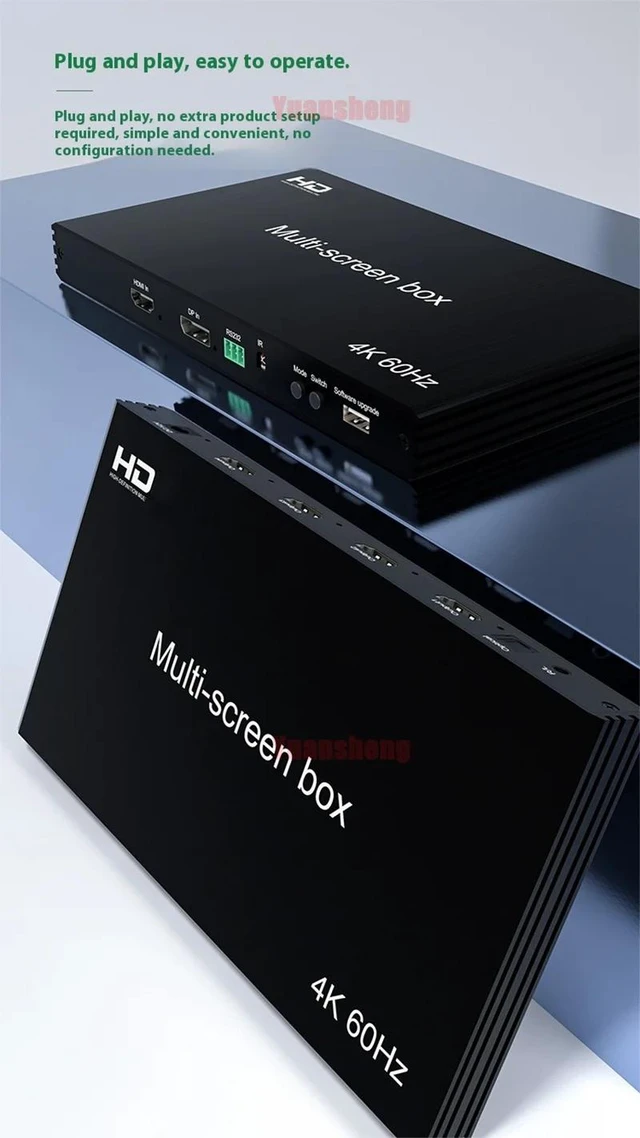

Multi-screen system is an industrial-grade high-performance product specially developed for small-scale LCD splicing screen,multi-channel projection fusion and other scenarios.With the HDMI/DP input and the HDMI output interface. Simple installation,easy to debug,plug and play.
Feature:
Super-high resolution,support 4 HDMI outputs with each resolution maximum 1920x1200@60hz;
Point to point,no stretching,no deformation,no need to compress the input source,clear picture;
Support HDMI/DP inputs;

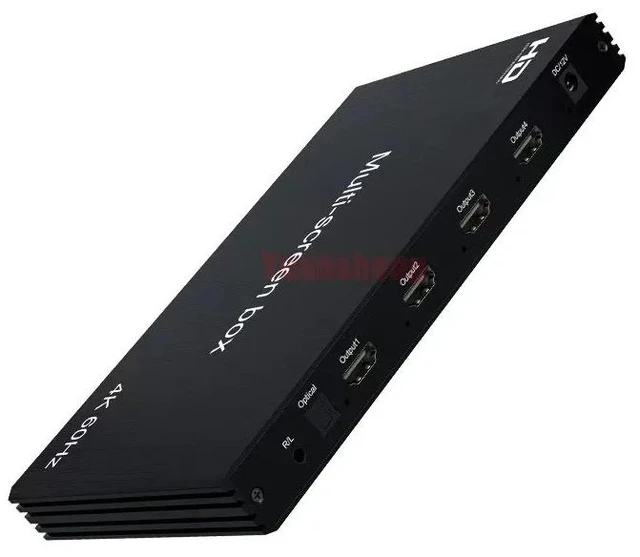

Support four HDMI outputs, one 3.5mm stereo output; and a fiber audio output;
Support RS232 protocol;
Support the power-off-memory function;
Support 2x2 splicing, easy to operate, plug and play
Support cascading to achieve maximum resolution splicing,for example: 4x4 splicing wall,through four Multi-screen boxes to achieve 7682x4320, 8K display.
Specification:
Input resolution:3840x2400@60Hz/7680x1200@60Hz/1920x4800@60Hz
HDMI output resolution:1920x1080P@60Hz/1920x1200P@60Hz
Support video format:YUV444 YUV422 YUV420 RGB444
Support audio format:LPCM
Max bandwidth:600MHz
Max baud rate:6x3Gbps
HDMI cable length:10M AWG26 HDMI standard cable
Max working current:0.75A
Power adapter format:Input:AC(50HZ,60HZ)100V-240V;Output: DC12V/1A

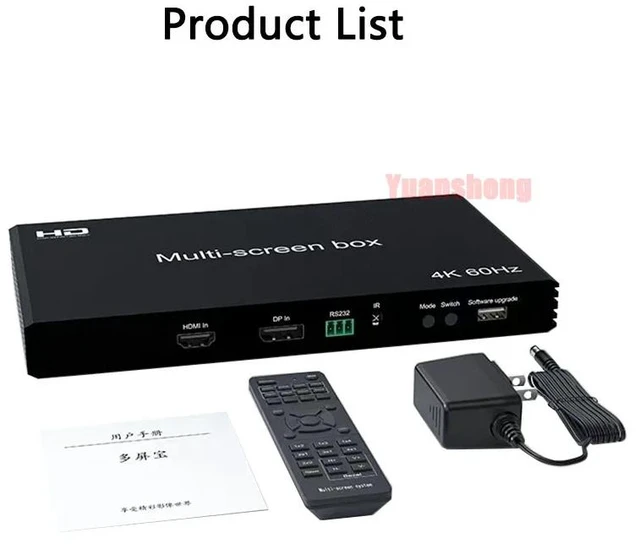

Package:
Multi-screen box*1
Remote control(without battery)*1
Power adapter*1
User manual*1
