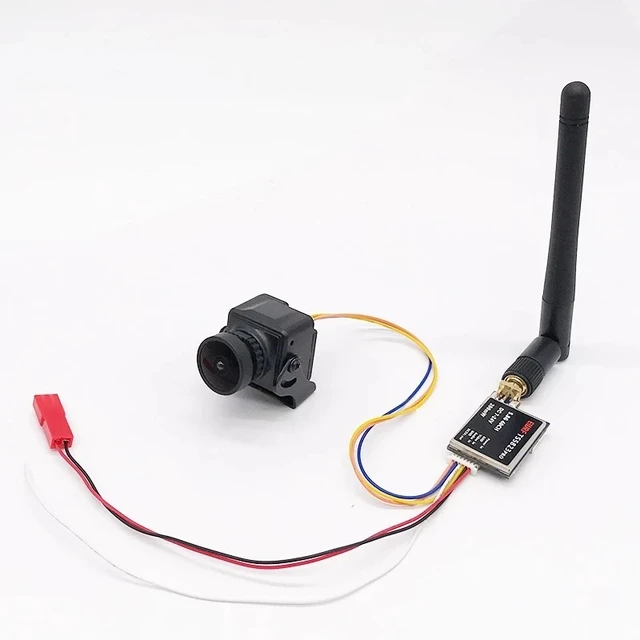

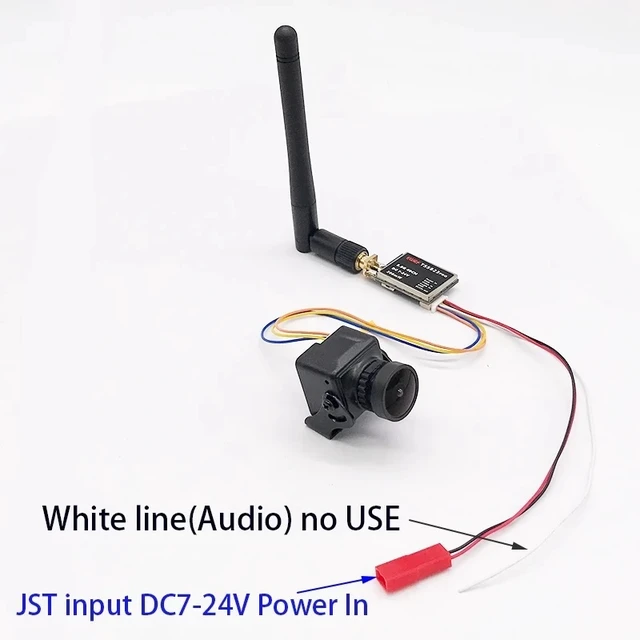

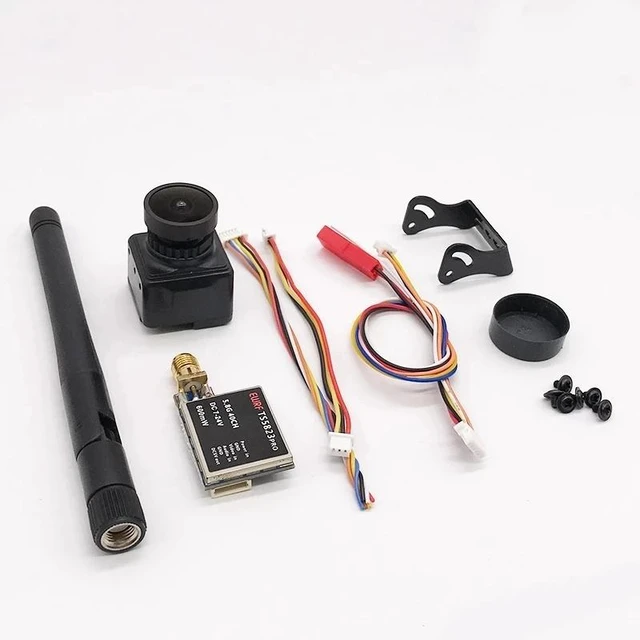

600mW version,5.8G 48CH 4.3 Inch FPV Monitor 480x272 Build-in Battery Video Screen with 600mw VTX Transmitter TS5823 Pro+CMOS 1200TVL Camera
- 5.8G FPV Set. Ready to use
- 600mW Transmitter *1
- 1* 4.3 inch monitor
- 1*Camera
- Item Name : 1200TVL Camera
- Size : 22mm x 22mm
- Format : PAL Optional
- PAL: 1920H1080V(1MP)
- NTSC: 1020H1920V (1MP)
- Horizontal Resolution : 1000TVL
- Video Output : 1.0Vp p/75ohm
- AGC : 0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB
- WB : ON/OFF
- Exposure Type: electronic exposure
- Electronic Shutter : 1/50(1/60) 1/100000 second
- Gamma Correction : 0.45/1.0
- Synchronization Mode : inter sync
- Lens : 2.5mm 130degree/2.8mm 120degree optional
- Specification :
- Working Voltage : DC5 to 12V(wide voltage , measured 5 to 13V)
- Working Current : 70mA(ow power consumption)
- Working Temp. : -20degree to 60degree
- Wetness: 0% ~ 98%
- Package Included:

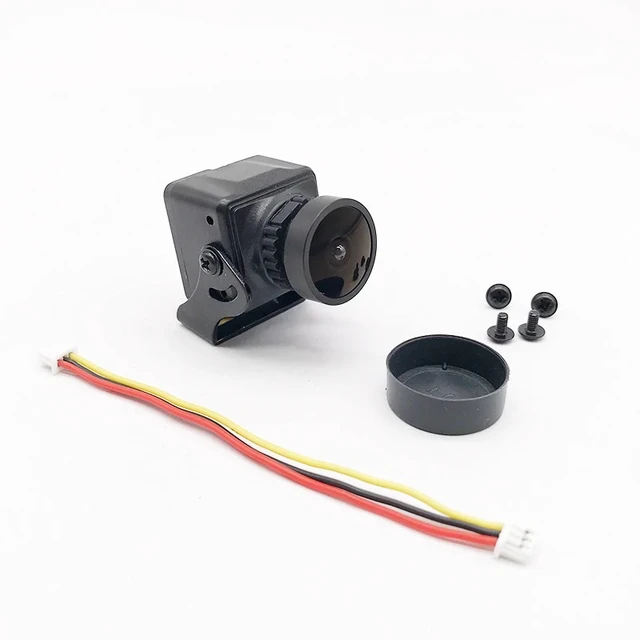

- 1 x 1200TVL Mini FPV Camera
- Screen size: 4.3 inches
- Resolution: 480 x 272 pixels
- Aspect ratio: 16:9
- Brightness: 350cd/m2
- Video format: NTSC / PAL
- AV output: 3.5 AV output interface (yellow video, white and red audio)
- Working voltage: 5V
- Charging: Standard Micro_USB 5V/2A
- Power consumption: 600mAh
- OSD display: working channel and frequency, battery power, receiving RSSI
- Built-in battery: 1800MAH (1S)
- Working time: >2 hours
- Sensitivity: -90dBm
- Antenna connector: RP-SMA (inner pin)
- Size: 123*85*26mm
- Frequency range: 5362 MHZ-5945 MHz
- Channel: Channel 48
+
+
