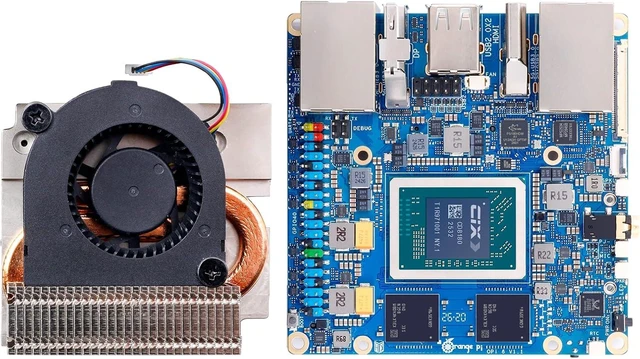

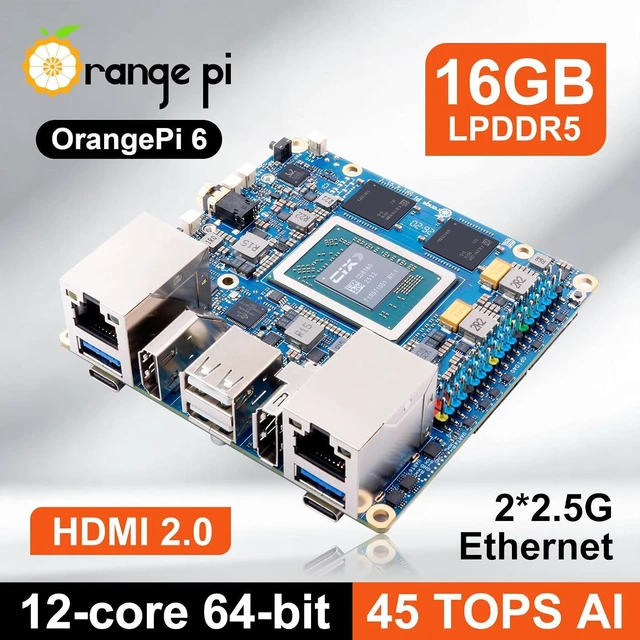

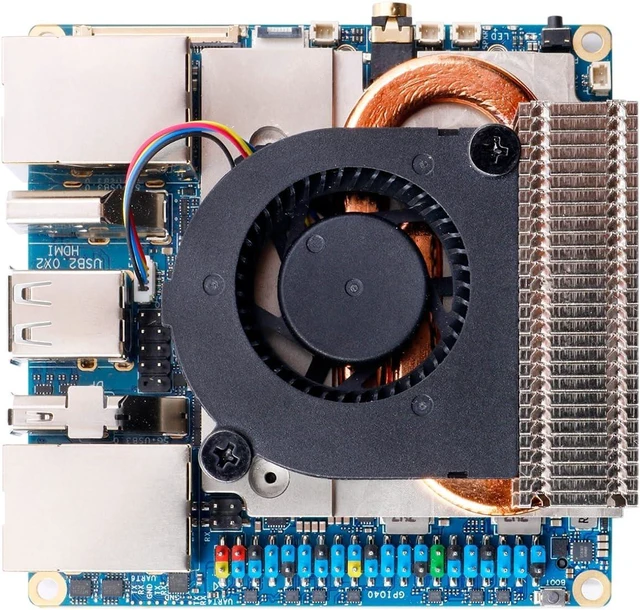

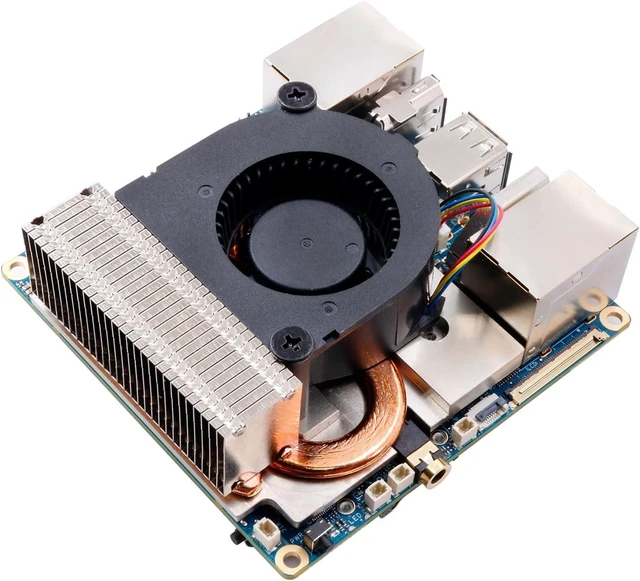

Orange Pi 6 16GB RAM LPDDR5 12 Core 64 Bit Single Board Computer, CIX SoC 45TOPS AI NPU Mini PC Run Linux, Android, Windows, ROS2 OS with Heat Dissipation Assembly with Cooling Fan
- High Performance CIX SoC - OrangePi 6 16GB adopts CIX CD8180 SoC, built-in 12-core 64-bit processor + NPU processor, integrated graphics processor, equipped with 16GB/32GB /64GB LPDDR5, and provides two M.2 KEY-M interfaces 2280 for NVMe SSD,as well as SPI FLASH and TF slots to meet the needs of fast read/write and high-capacity storage; It is equipped with 45 Tops computing power to support a variety of end-side large-model applications and a rich end-side AI scene.
- 45TOPS AI Computing Power - AI acceleration performance reaches 45TOPS, significantly enhancing AI development and deployment efficiency. It supports multiple mainstream AI models and meets the application needs of generative AI in diverse edge scenarios, such as chatbots and AI-assisted programming. At the same time, relying on its graphics acceleration algorithm and graphics engine, it can support desktop 3D graphics applications such as games and industrial design software.
- Rich Ports - OrangePi 6 16G offers extensiv
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

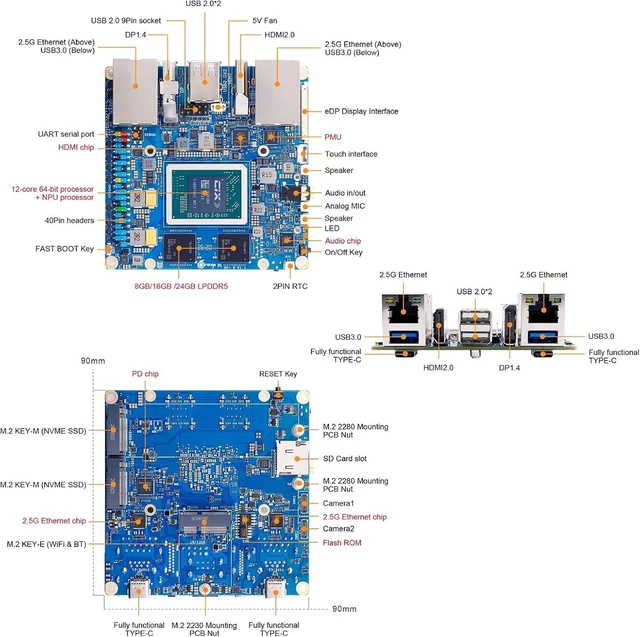

Hardware Specifications
ItemCIX CD8180, 12-core 64-bit processor
NPU28.8 TOPS
GPUIntegrated graphics processor, supports hardware ray tracing
Total AI Compute45 TOPS (CPU+NPU+GPU)
RAMLPDDR5, 128bit, 8GB/16GB/24GB
Storage Expansion
SPI FLASH: 64Mbit
NVMe SSD (PCIe 4.0 x4, M.2 KEY-M 2280) x2
TF card slot
Wi-Fi / BluetoothM.2 KEY-E socket (module not included)
EthernetDual 2.5GbE Ethernet
USB
USB 3.0 x2, USB 2.0 x2
Full-function Type-C 3.0 x2
Reserved USB 2.0 9-pin header
Display Interfaces
1 x DP 1.4 (4K@120Hz)
2 x Type-C DP
1 x HDMI 2.0 (4K@60Hz, bridge chip PS185)
1 x eDP (4K@60Hz)
Camera2 x 4-lane MIPI CSI camera interfaces
Audio3.5mm headphone jack (audio in/out), dual speaker headers, 1 x analog microphone
PowerDual Type-C PD 20V, compatible with 65W/100W

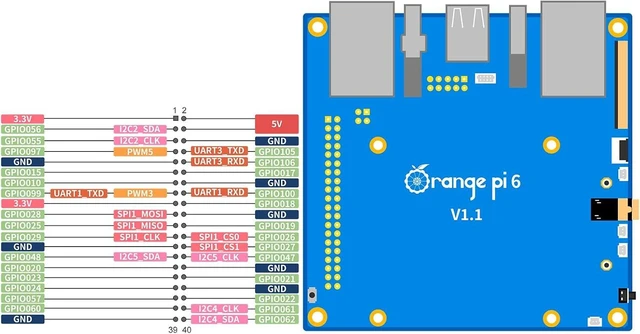

Expansion Interface40Pin (GPIO, UART, I2C, SPI, PWM)
LEDsPower LED, system status LED
ButtonsPower button, reset button, BOOT button
Fan Header1 x PWM fan header
Reserved InterfacesRTC header, UART debug serial port
Operating SystemsOpenHarmony, Debian, Ubuntu, Android, Windows, ROS2
Dimensions90 x 90 mm
Weight106g
ItemCIX CD8180, 12-core 64-bit processor
NPU28.8 TOPS
GPUIntegrated graphics processor, supports hardware ray tracing
Total AI Compute45 TOPS (CPU+NPU+GPU)
RAMLPDDR5, 128bit, 8GB/16GB/24GB
Storage Expansion
SPI FLASH: 64Mbit
NVMe SSD (PCIe 4.0 x4, M.2 KEY-M 2280) x2
TF card slot
Wi-Fi / BluetoothM.2 KEY-E socket (module not included)
EthernetDual 2.5GbE Ethernet
USB
USB 3.0 x2, USB 2.0 x2
Full-function Type-C 3.0 x2
Reserved USB 2.0 9-pin header
Display Interfaces
1 x DP 1.4 (4K@120Hz)
2 x Type-C DP
1 x HDMI 2.0 (4K@60Hz, bridge chip PS185)
1 x eDP (4K@60Hz)
Camera2 x 4-lane MIPI CSI camera interfaces
Audio3.5mm headphone jack (audio in/out), dual speaker headers, 1 x analog microphone
PowerDual Type-C PD 20V, compatible with 65W/100W
Expansion Interface40Pin (GPIO, UART, I2C, SPI, PWM)
LEDsPower LED, system status LED
ButtonsPower button, reset button, BOOT button
Fan Header1 x PWM fan header
Reserved InterfacesRTC header, UART debug serial port
Operating SystemsOpenHarmony, Debian, Ubuntu, Android, Windows, ROS2
Dimensions90 x 90 mm
Weight106g
