TUOPUONE Gigabit / 2.5G Dual Ethernet Mini-Computer (B) Based On Raspb Pi CM5 (NOT Included), Dual RJ45 Ethernet Ports, Supports 4K Display Output and Dual MIPI Interfaces

Features
Do not plug or unplug any devices other than USB and HDMI while the system is powered on
The Type-C port can be used as a USB SLAVE interface for flashing images or powering the device
Onboard 2 USB ports, with a total maximum current output of 2A (1x USB 3.2 Gen1 + 1x USB 2.0 port)
Supports triple independent displays. When a MIPI DSI driver is added, the system will default to connecting to it regardless of whether a screen is connected, and the screen will display in split-screen mode (depending on the system version)

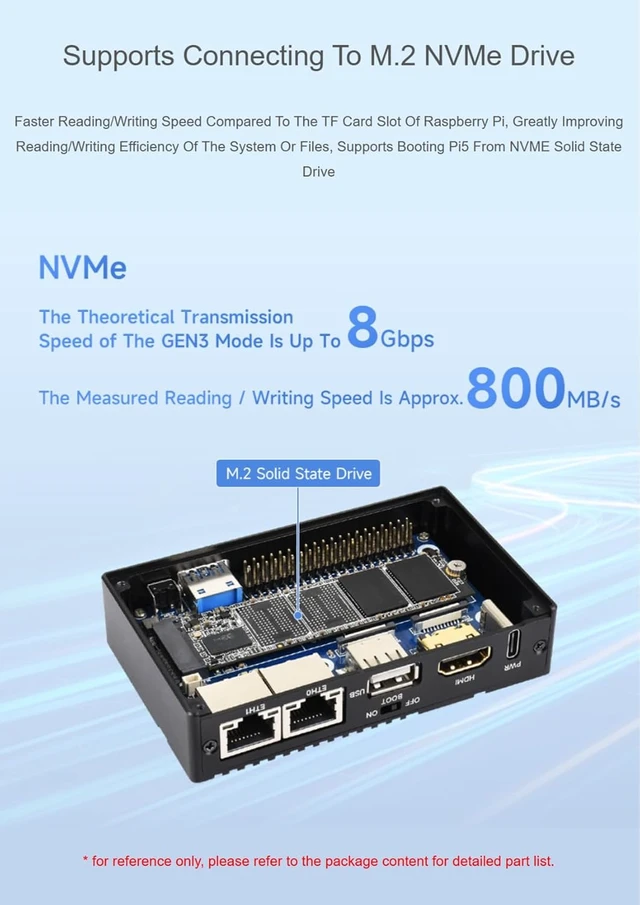

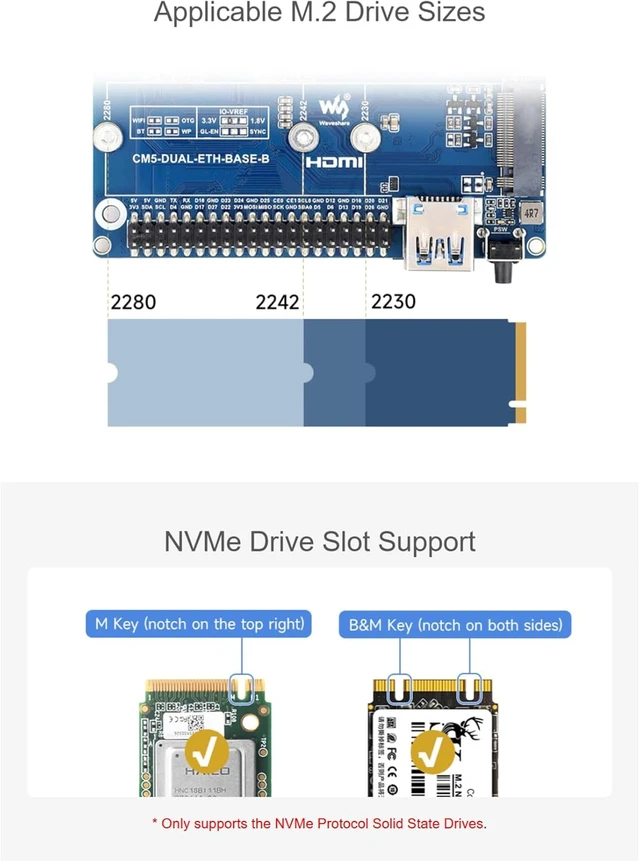

Onboard M.2 M KEY interface, supports NVMe SSD protocol (or PCIe protocol AI modules)
Onboard BOOT switch: Before powering on, slide the BOOT switch to ON and connect via Type-C to a computer to put the device into flashing mode
When flashing via Type-C, do not connect other devices; otherwise, insufficient power may prevent the device from being recognized

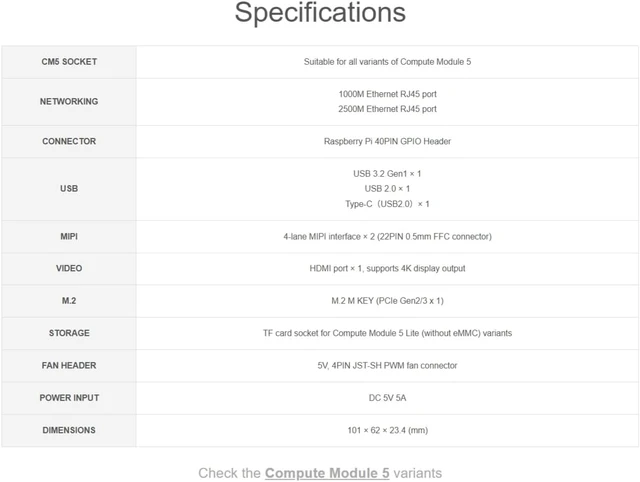

Specifications
CM5 socket :Suitable for all variants of Compute Module 5
Networking :1000M Ethernet RJ45 port
2500M Ethernet RJ45 port
Connector: RaspbPi 40PIN GPIO Header
USB: USB 3.2 Gen1 × 1
USB 2.0 × 1
Type-CUSB2.0× 1
MIPI: 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector)
Video: HDMI port × 1, supports 4K display output
M.2: M.2 M KEY (PCIe Gen2/3 x 1)
Storage: TF card socket for Compute Module 5 Lite (without eMMC) variants
Fan: Header 5V, 4PIN JST-SH PWM fan connector
Power Input: DC 5V 5A
Dimensions: 101 × 62 × 23.4 (mm)


Package Content
Mental case (top and bottom)
CM5-DUAL-ETH-BASE-B x1
Silicone thermal tape x1
Screwdriver x1
Pink thermal tape 5PCS x1
Screws pack x1
