OV2640 Camera Module 140 Degree Wide Angle CMOS 2MP Camera Mini Camera Module
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
About this item
OV2640 is a 1/4 inch CMOS UXGA (1632 x 1232) image sensor, The sensor is small in size and low in operating voltage, providing the same functions of a single-chip UXGA camera and image processor.
Through SCCB bus control, it can output 8 / 10-bit image data with various resolutions in the form of whole frame, sub-sampling, scaling and window extraction.
The UXGA image of this product can reach up to 15 frames per second (SVGA can reach 30 frames and CIF can reach 60 frames).
Users can fully control the image quality, data format and transmission method.

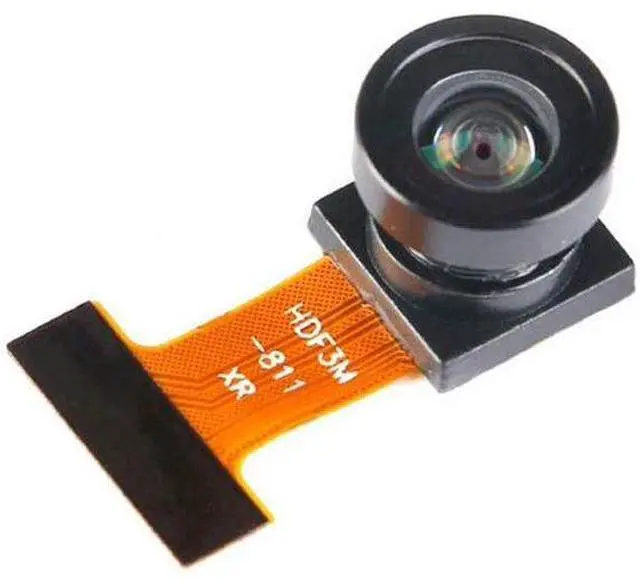

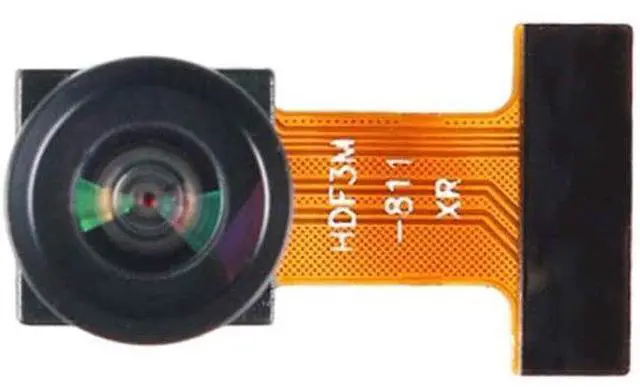

140° Wide angle lens allow you to capture a large area of the scene within a short shooting distance.
Learn more about the Detailed Specifications
