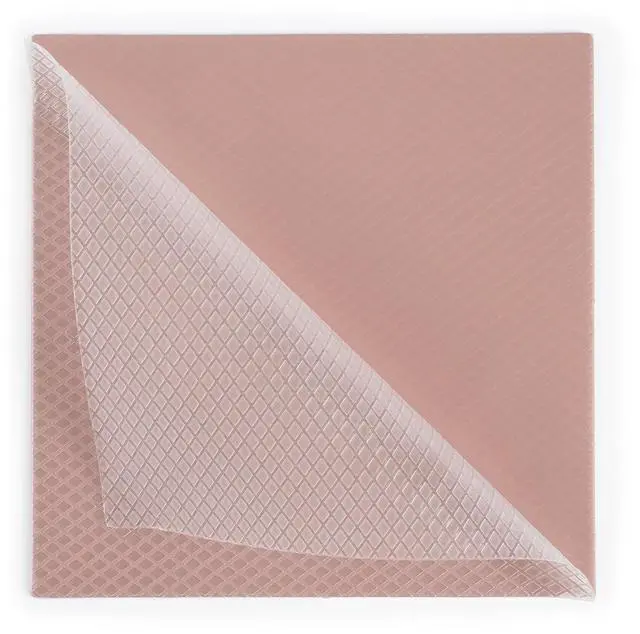

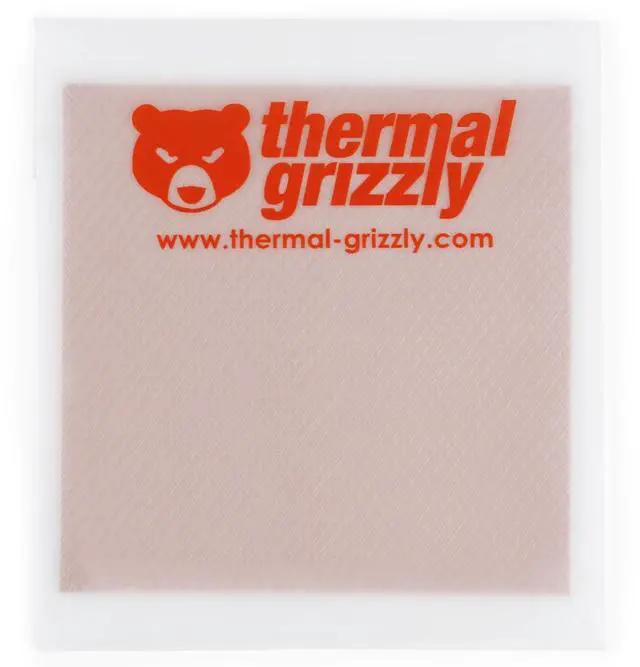

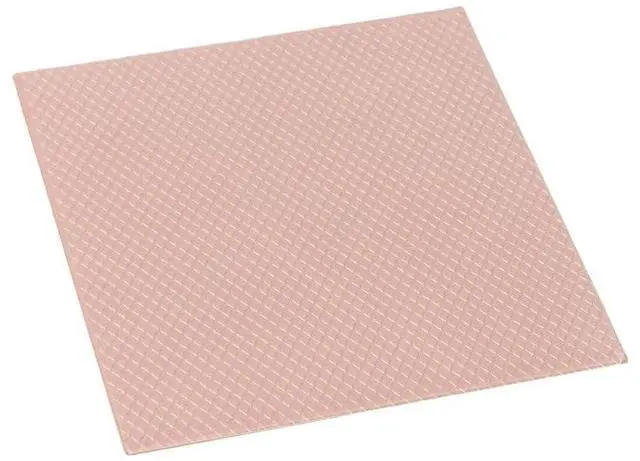

The Thermal Grizzly Minus Pad 8 is a flexible, 100 × 100 mm thermal pad with a 0.5 mm thickness, suited to PC builders and electronics technicians who need a thermal interface for a gap that matches that thickness.
Recommended For
- PC builders replacing pads on a graphics card’s VRAM or voltage regulators, when the card’s service requirements call for a 0.5 mm pad and the cooler has been removed for maintenance.
- PC maintainers cutting a large sheet to size for several small gap-contact areas, such as VRAM or VRMs, where the measured gap calls for 0.5 mm thickness.
- M.2 SSD owners replacing a thermal interface beneath an SSD heatsink, if the device’s actual gap and mounting setup are suited to a 0.5 mm pad.
- Console or laptop repairers replacing pads on memory or voltage-regulator components when the model’s specified contact points and pad thickness match this sheet.
Real-World Use Scenarios

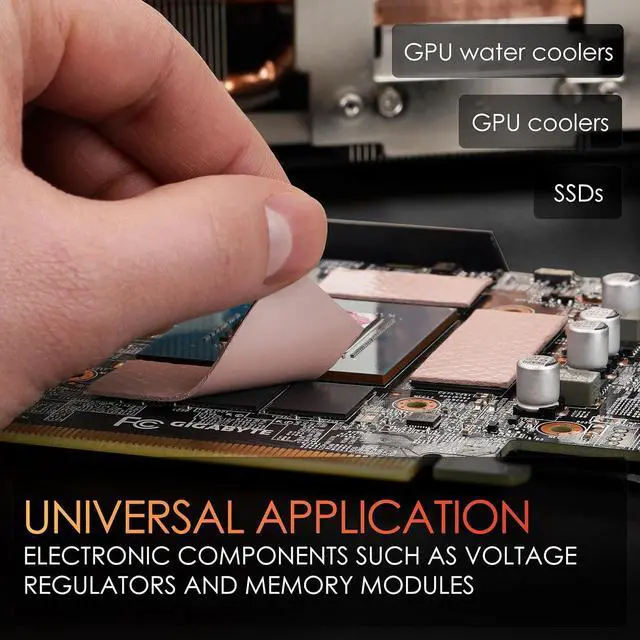

- When replacing worn or missing pads on a graphics card, a repairer can cut the sheet to cover the VRAM or VRM contact areas; with the correct thickness and good cooler contact, it helps transfer heat to the heatsink.
- During a gaming-laptop cooling service, a technician can replace pads on VRAM or other components designed to contact the cooler; choosing the device’s specified thickness helps avoid a poor fit.
- When servicing an M.2 SSD with a compatible heatsink, the pad can bridge the gap between the SSD and heatsink, helping conduct heat away from the drive during use; the 0.5 mm version is suitable only if that thickness matches the device’s clearance.
- For a repair involving several small components, the 100 × 100 mm sheet can be cut into pieces for separate contact areas, reducing the need to buy pre-cut pads—provided each component’s required thickness is 0.5 mm.
Spec Summary
| Attribute | Value |
|---|
| Best For | Thermal interface use with aluminum heatsinks |
|---|
| Size | 100 × 100 mm pad, 0.5 mm thick |
|---|
| Material And Compatibility | Aluminum and silicone; compatible with aluminum heatsinks |
|---|

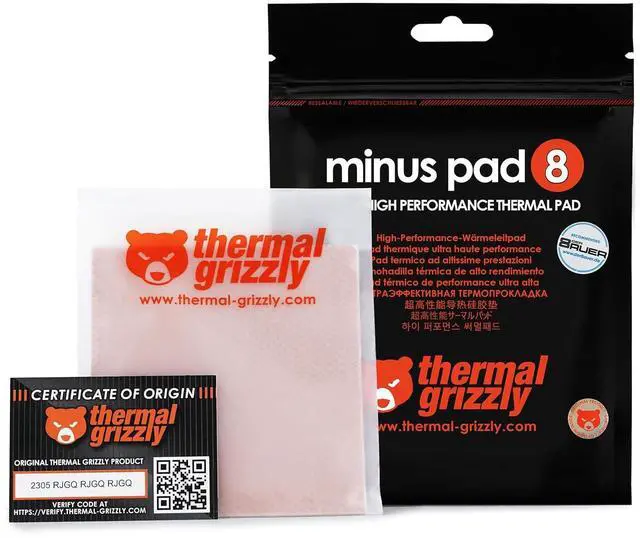

| Package Contents | One Minus Pad 8 thermal pad |
|---|
| Model And Brand | Thermal Grizzly TG-MP8-100-100-05-1R |
|---|
Reference Q&A
Q: Minus Pad 8 or Minus Pad Pro: which should I choose?
A: Choose Minus Pad Pro when you prioritize very high thermal conductivity and compressibility. Choose this 100 × 100 × 0.5 mm Minus Pad 8 when that sheet size and thickness match the gap you need to fill; both product lines offer 100 × 100 mm sheets in 0.5 mm thickness.
Q: Minus Pad 8 or Minus Pad Extreme: which is more performance-focused?
A: Minus Pad Extreme is Thermal Grizzly’s more performance-focused option, while Minus Pad 8 offers high compressibility and an adaptable surface. Choose this Minus Pad 8 when its 0.5 mm thickness and 100 × 100 mm sheet fit the application; consider Extreme when prioritizing the brand’s higher thermal-performance tier. Both are available in that size and thickness.
Q: Should I get the 0.5 mm or 1 mm Minus Pad 8?
A: Choose the thickness specified for the cooler or measured for the gap: 0.5 mm for a 0.5 mm application, or 1 mm for a 1 mm application. The right thickness depends on the component clearance and compression, so match the device’s requirements rather than choosing by thickness alone.
Q: Minus Pad 8 or Minus Pad Basic: which fits a value-focused replacement?
A: Minus Pad Basic is positioned by Thermal Grizzly as its value-focused option. Choose this Minus Pad 8 when you want its highly compressible, adaptable pad design and its available 100 × 100 × 0.5 mm format; choose Basic when price-performance is the main priority.
Q: Is 0.5 mm the right thickness for my device?
A: Use this pad only if 0.5 mm matches the required gap or the thickness of the pad you are replacing. A pad that is too thick can interfere with component contact; one that is too thin may not bridge the gap.
Q: Can I cut the sheet to fit a component?
A: The product is a 100 × 100 mm sheet, which provides material for different-sized coverage areas. Measure the required area before cutting, and make sure the installed pad still has the specified 0.5 mm thickness.
Q: Who is this thermal pad suitable for?
A: It is intended for users replacing or fitting a thermal interface pad where a 0.5 mm pad is specified. Check the device’s service information or the original pad before buying; the sheet’s size alone does not confirm fit for a particular component.
Q: Can I stack this pad if 0.5 mm is not thick enough?
A: Stacking is generally not recommended: additional layers can add thermal resistance and may affect contact. Choose a pad thickness that matches the device’s required gap instead.
Q: Is the 0.5mm Minus Pad 8 suitable for replacing thermal pads in a laptop or console?
A: It may be suitable when the device calls for a 0.5mm pad. A Reddit discussion about replacing pads in a PS2 Slim highlights the importance of matching the original thickness; this pad is not a universal fit for every device.
Q: Can I use Minus Pad 8 to cool an M.2 SSD?
A: Reddit users have reported using Minus Pad 8 as part of an M.2 SSD heatsink setup. The appropriate thickness depends on the gap in the specific laptop or heatsink; the product here is 0.5mm thick.
Q: Is Minus Pad 8 worth choosing over a cheaper thermal pad?
A: One Reddit test found Minus Pad 8 performed slightly better than the tested no-name pad, but worse than another brand in that particular setup. That single test does not establish how the pads compare in every device, so fit and required thickness should also guide the choice.
