    Thermal Grizzly - Phase Sheet PTM (50x40mm)- High-Performance Thermal pad with Phase Change Material | Durable, not electrically Conductive | for CPU, GPU & Electronics Cooling

    • Thermal Grizzly - Phase Sheet PTM (50x40mm)- High Performance Thermal pad with Phase Change Material | Durable, not electrically Conductive | for CPU, GPU & Electronics Cooling
    +
    +
    Overview
    Specs
    Reviews (2)
    Product Description
    PhaseSheet

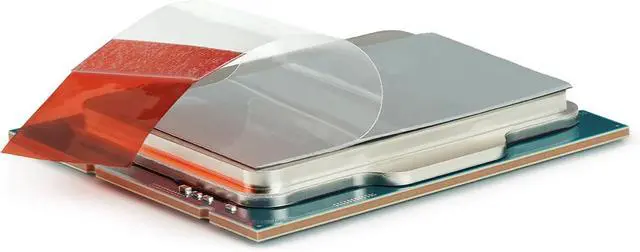

    Thermal Grizzly PhaseSheet PTM

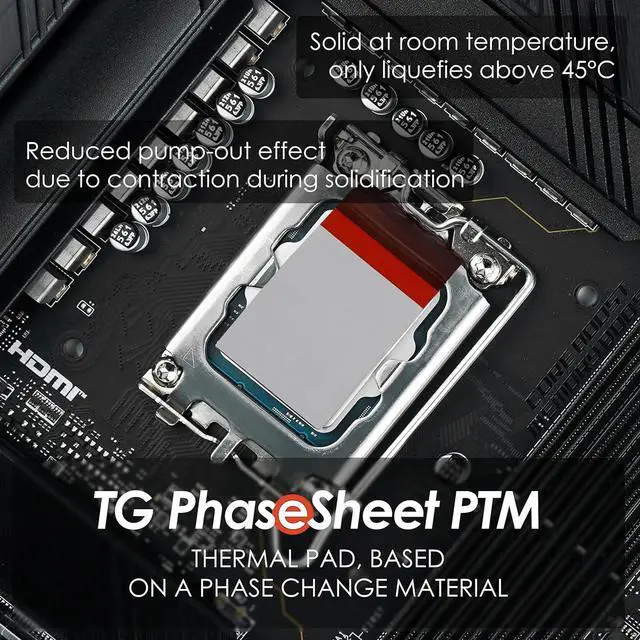

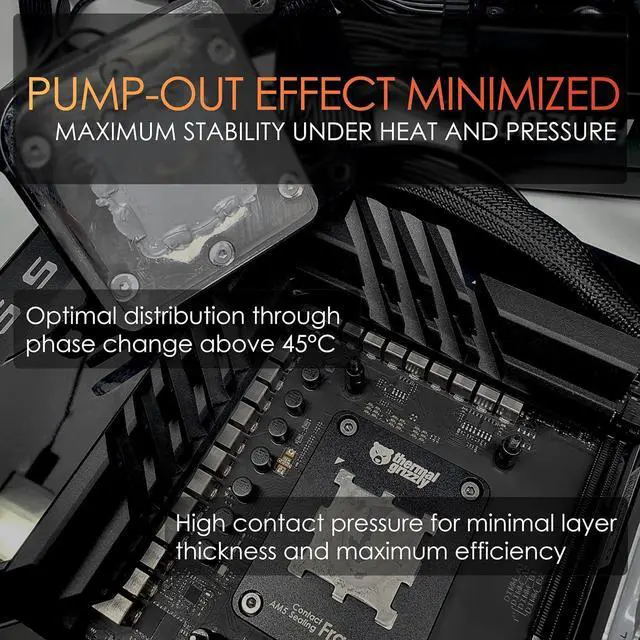

    The phase-change material on which the PhaseSheet PTM is based is solid at room temperature. The material only begins to liquefy at temperatures above 45 degrees Celsius. A high contact pressure of around 300-400N is required for optimum distribution of the liquid PhaseSheet PTM and thus the lowest possible layer thickness. PhaseSheet PTM has a very low viscosity in its liquid state and contracts again when it changes to a solid material, thus minimizing the pump-out effect.

    PhaseSheet Setup
    The pump-out effect is particularly pronounced when combining a copper cooler on a graphics chip because silicon and copper have different linear expansion when heated.

    The temperatures under load cause the heatspreader and the base plate to deform (concave or convex) and return to their original shape (straight) when they cool down. As a result, the thermal paste is slowly pressed out between the heatspreader and the base plate of the CPU cooler, for example.

    Key features
    Outstanding thermal conductivity
    Consistently high performance
    Very long service life
    Versatile in application
    Not electrically conductive
    Easy to use
    PhaseSheet
    PhaseSheet PTM is more durable than traditional thermal pastes, but not as durable as KryoSheet, for example, which is virtually maintenance-free. PhaseSheet PTM develops and stabilizes its maximum thermal conductivity after around ten thermal cycles above 60 degrees Celsius.

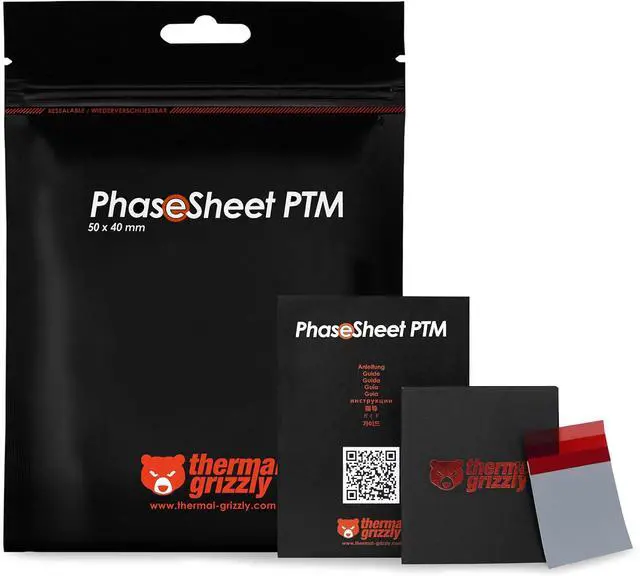

    Scope of delivery
    PhaseSheet

    PhaseSheet

    PhaseSheet

    Thermal Grizzly PhaseSheet PTM
    Thermal Grizzly PhaseSheet PTM 50mm x 40mm

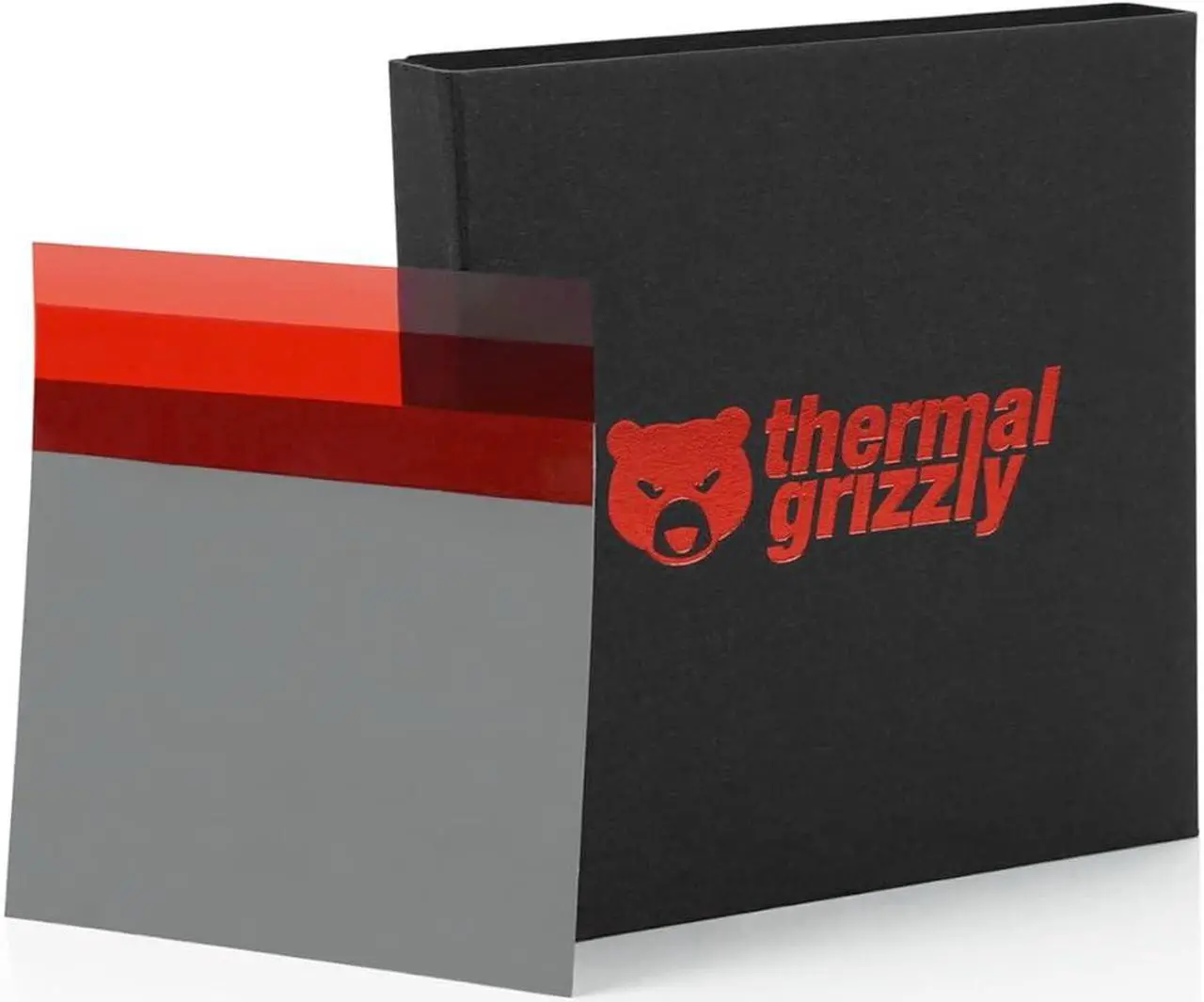

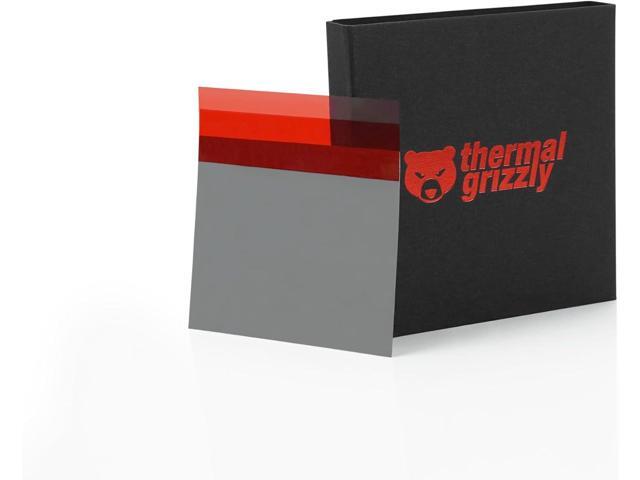

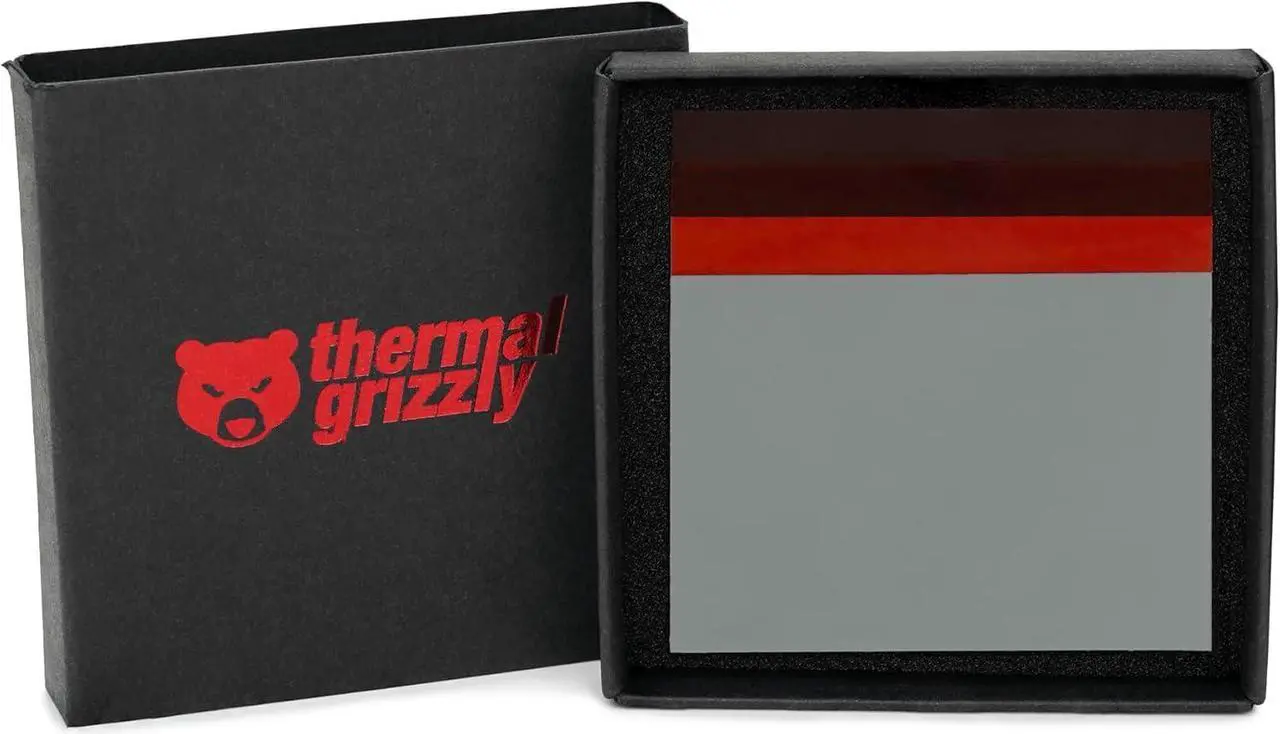

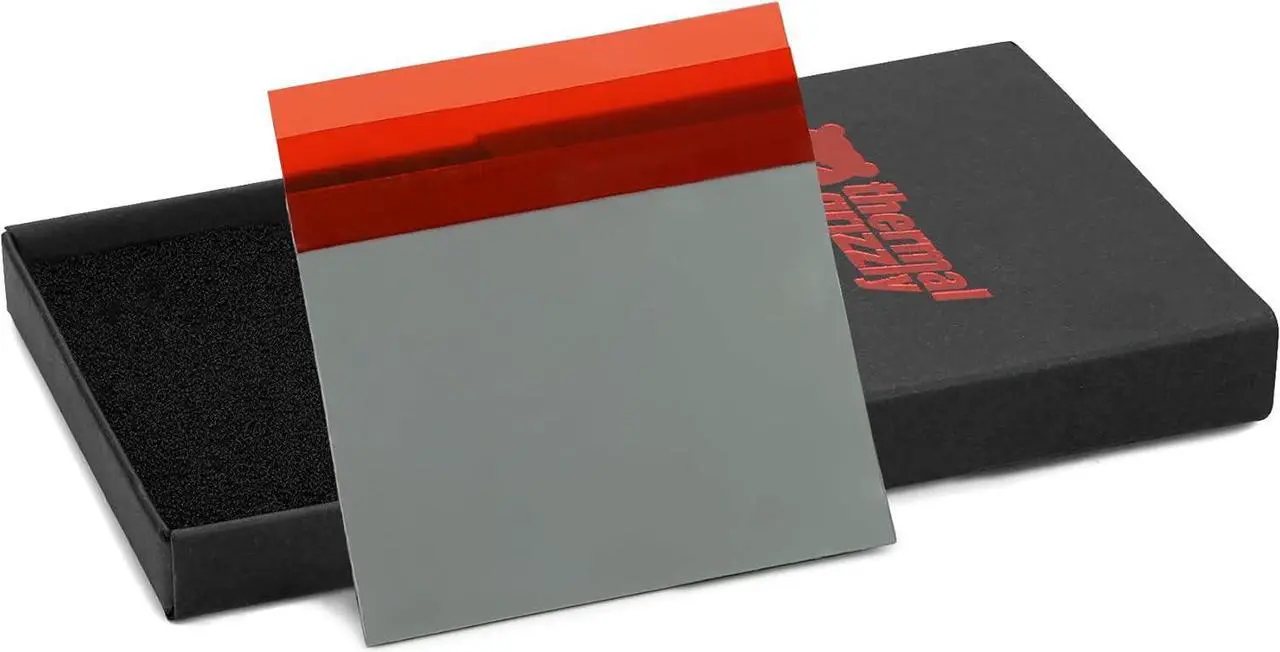

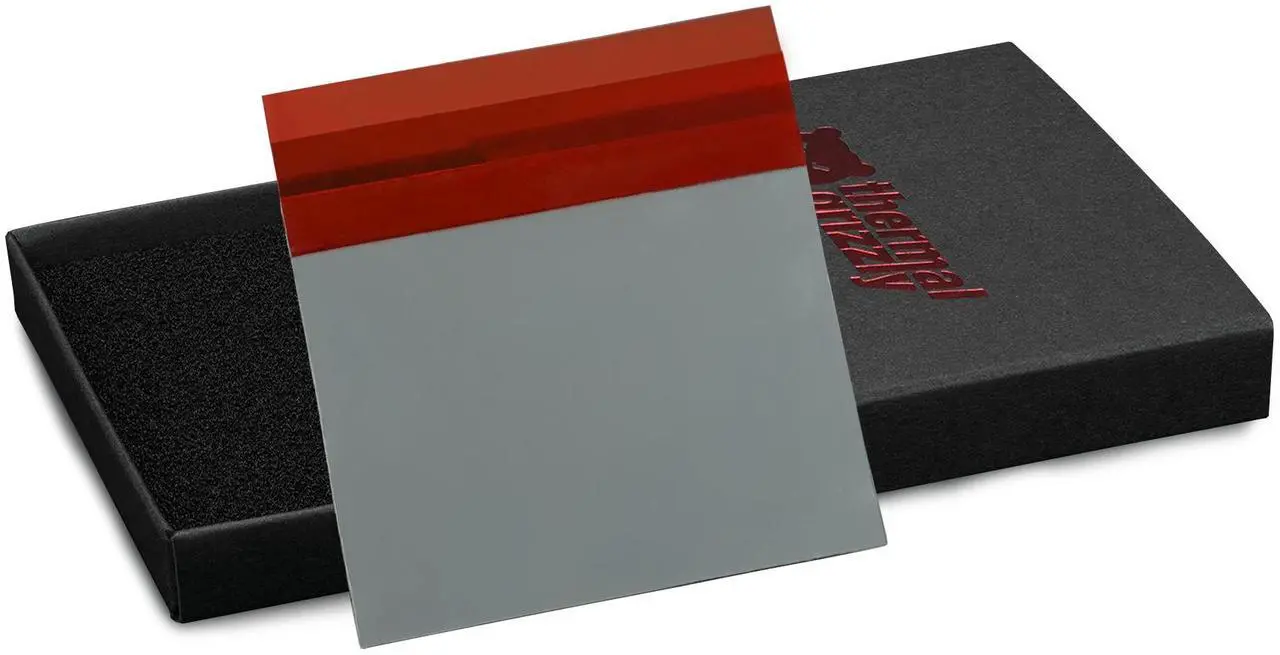

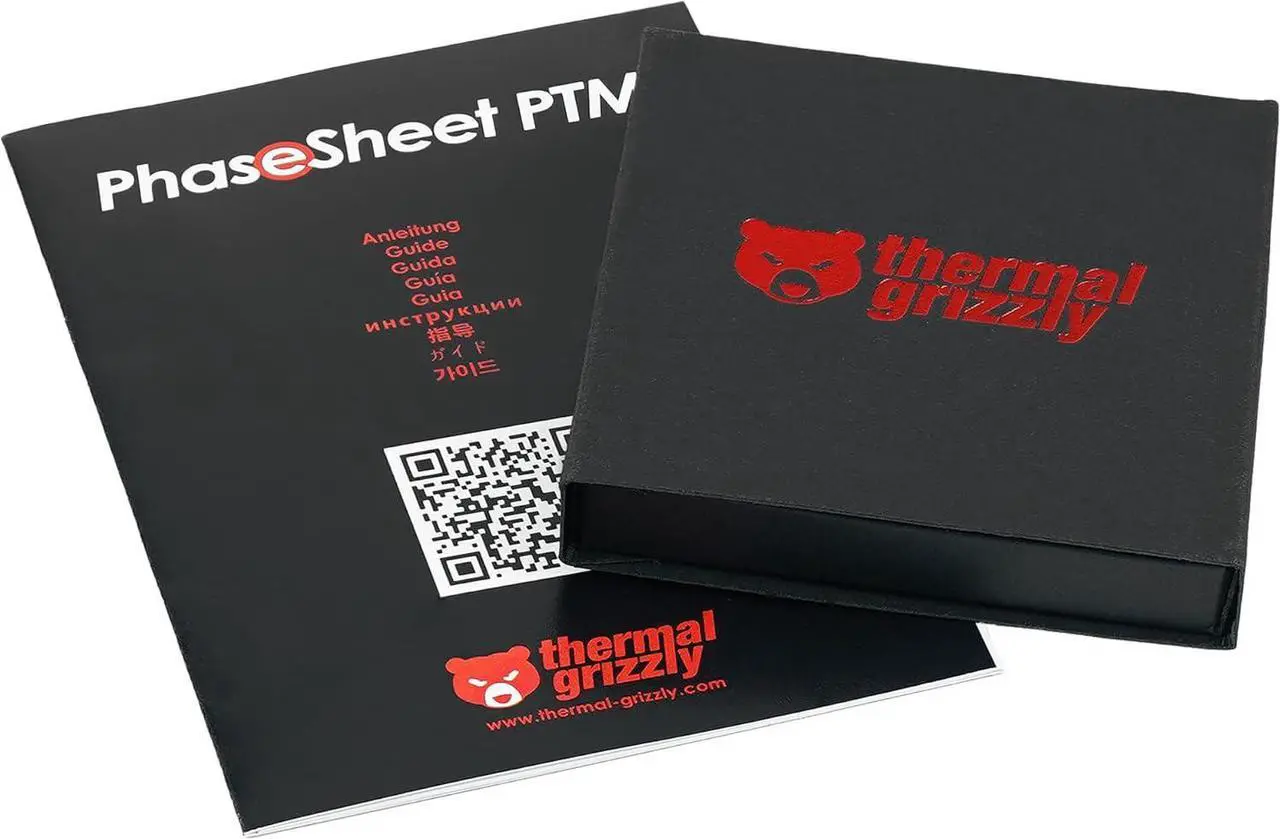

    Box and Manual
    A box to secure the pad

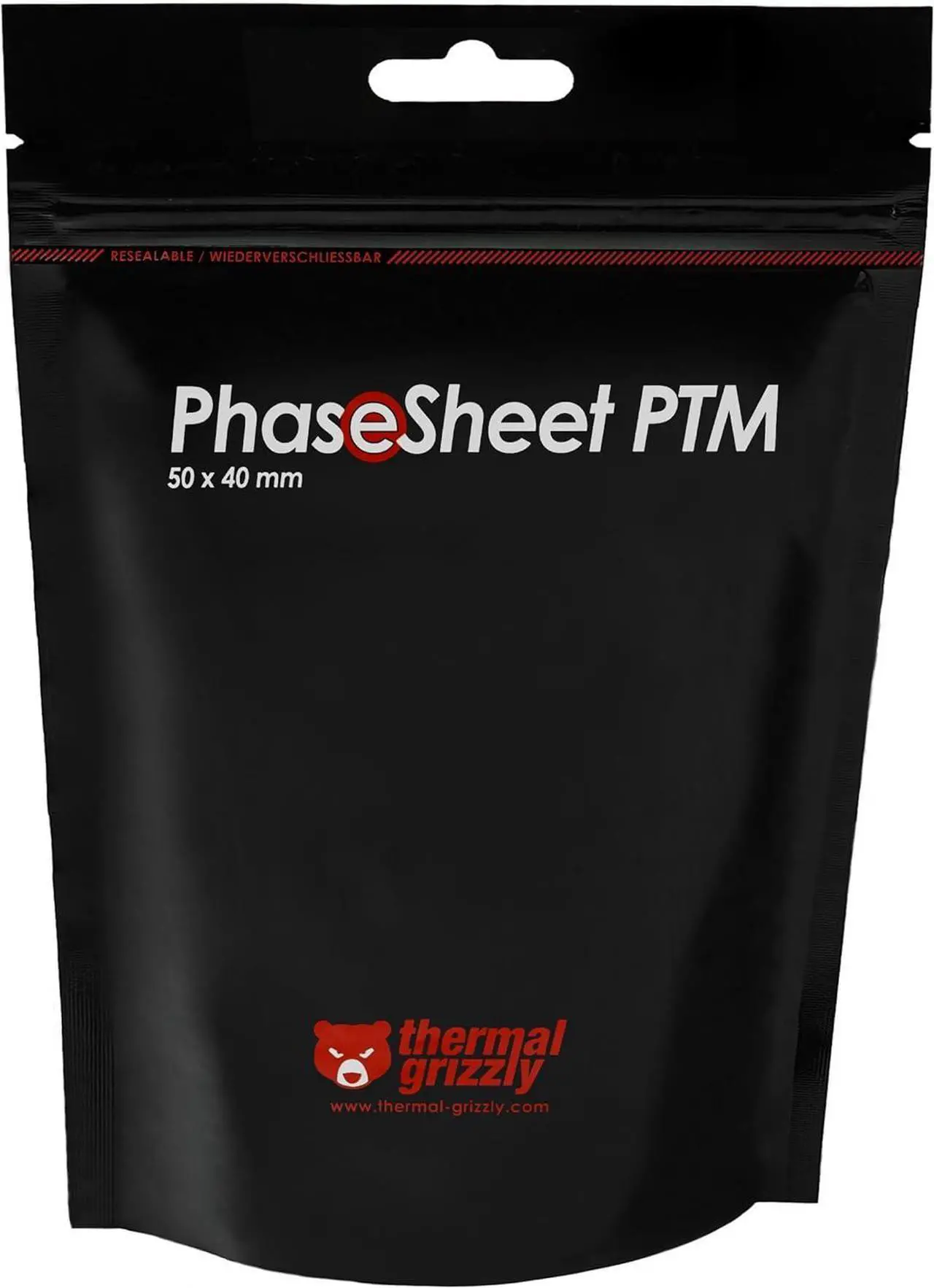

    Bag
    An airtight sealable and reusable package
