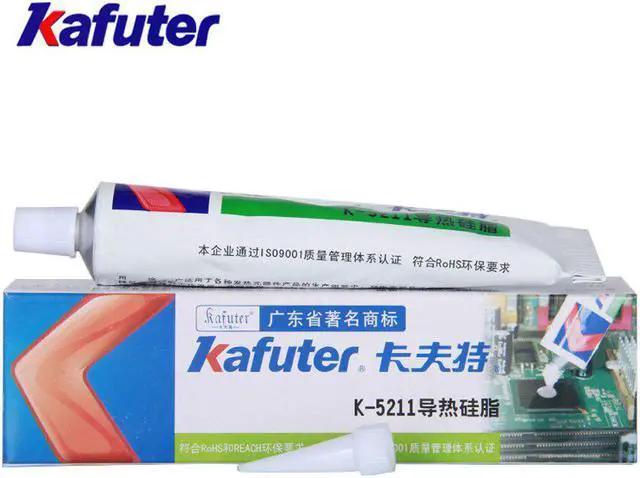

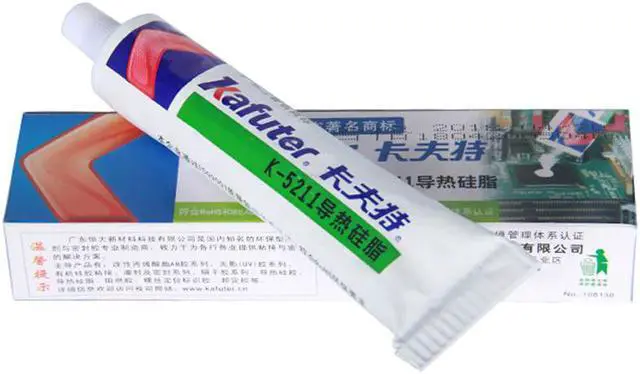

1PCS Kafuter K-5211 100g Thermal Conductive Silicone High-power LED Lamp Heat Sink Heat Special UPC Chipset Cooling Grease

1PCS Kafuter K-5211 100G Thermal Conductive Silicone High-power LED Lamp Heat Sink Heat Special UPC Chipset Cooling Grease Features This product uses imported raw materials and formulations production, use, thermal conductivity and good insulating metal oxide and an organic compound from the silicone grease-like paste. Product has excellent thermal conductivity, good electrical insulation, wide temperature (operating temperature -50 ~ + 200 ), good use of stability, low consistency and good workability. This non-toxic, non-corrosive, odorless, quit, do not dissolve.

use Widely used in heat, filling or coating electronics, electrical appliances, components, to derive the heat generated by components. Such as the CPU and heat sink caulking, power transistor, between the thyristor, diode and the substrate (aluminum, copper) filling the contact of every nip, depending on the machine power amplifier tube and fins, refrigeration and other semiconductors. Lowering the operating temperature of the heat generating element.

Technical performance Exterior White cream Penetration (1 / 10mm, 25 ) 260 to 300 Specific gravity (g / cm3) 1.9 to 2.1 Oil from the degree (% .200 , 8h) =2.0 Volatile (% .200 , 8h) =2.0 Strength Breakdown Voltage (kv / mm) =10 Volume resistivity (O.cm) 4 × 1014 Thermal conductivity (w / m · k) =1.2

Usage: Clean the surface to be coated, remove oil, then heat conductivity silicon ester direct extrusion, uniform coating to the surface to be coated. Coating method may need to be applied by brush, knife or roller.

Note: The construction of the surface should be uniform coating when the coating is not better, but the premise of ensuring fill the gap surface coated with a thin layer can be.
