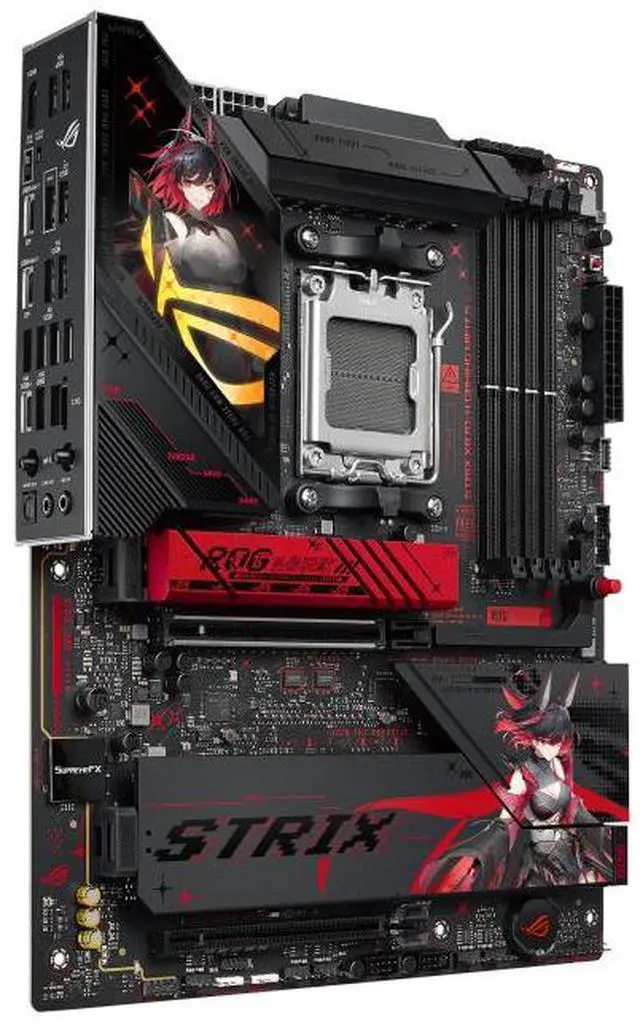

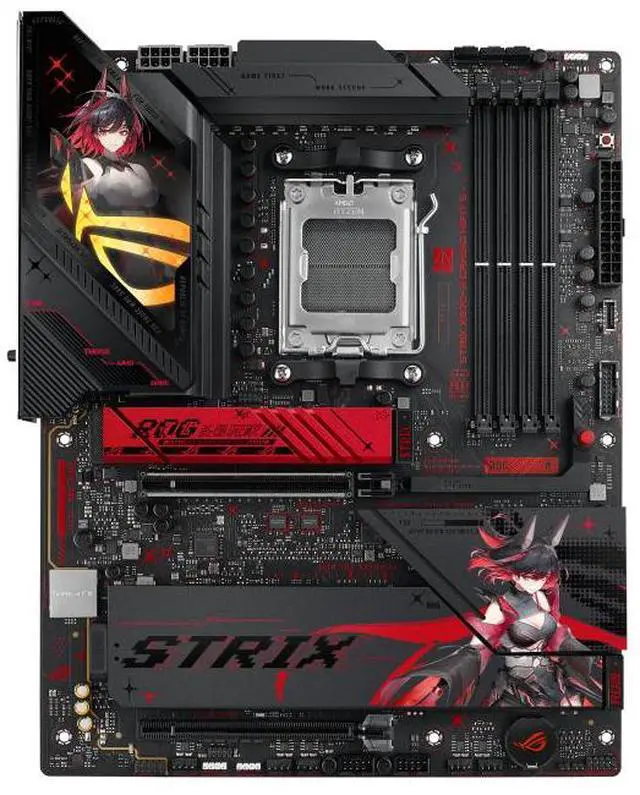

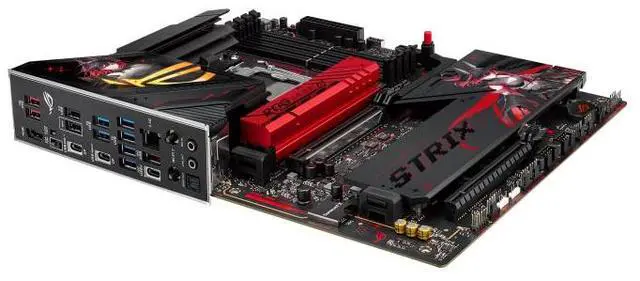

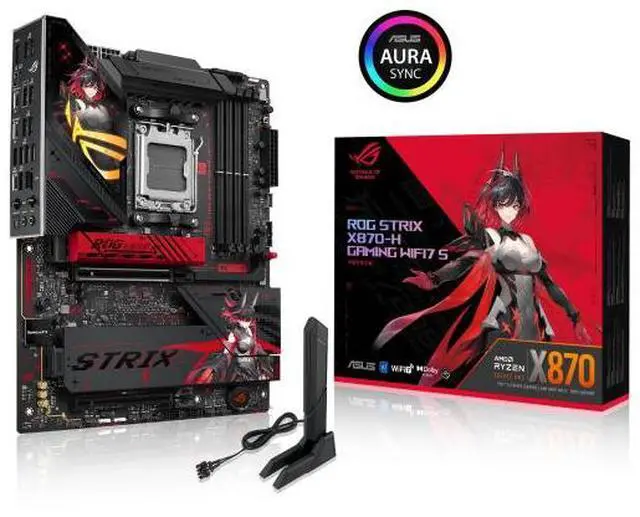

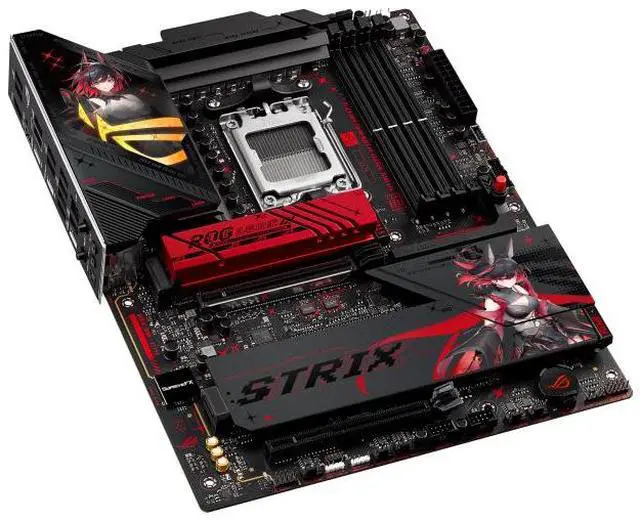

ASUS ROG STRIX X870-H GAMING WIFI S RO Ji EDITION AMD AM5 X870 ATX motherboard,16+2+1 80A power stages,DDR5,PCIe 5.0 x16, 4x M.2 , Wi-Fi 7,2.5Gb LAN,2xUSB4, USB Type-C, BIOS FlashBack

processor

AMD Socket AM5 for AMD Ryzen 9000 &

8000 & 7000 Series Desktop Processors*

*Refer to

https://www.asus.com/support/download-center/ for CPU support list.

chipset

AMD X870

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen

9000 & 8000 & 7000 Series Processors

Dual channel memory architecture

Supports AMD Extended Profiles for

Overclocking (EXPO)

Supports DIMM Fit / DIMM Fit Pro

ASUS Enhanced Memory Profile (AEMP)

* Supported memory types, data rate

(speed), and number of DRAM modules vary depending on the CPU and memory

configuration, for more information please refer to CPU/Memory Support list

under the Support tab of product information site or visit https://www.asus.com/support/download-center/.

Adjustments will be made based on the specifications of mass-produced memory

products available on the market.

* *Non-ECC, un-buffered DDR5 memory

supports On-Die ECC function.

Display function

1 x HDMI port**

2 x USB4® (40Gbps) ports support USB

Type-C® display outputs***

* Graphics specifications may vary between

CPU types. Please refer to AMD CPU specifications.

** Supports 4K@60Hz as specified in HDMI

2.1.

*** Supports max. 4K@60Hz as specified in

DisplayPort 1.4a

**** VGA resolution support depends on

processors' or graphic cards' resolution.

Expansion slot

AMD Ryzen 9000 & 7000 Series Desktop

Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot (supports x8/x4

mode)**

AMD X870 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check the PCIe bifurcation table

on the support site (https://www.asus.com/support/FAQ/1037507/).

** Specifications vary by CPU types.

- To ensure compatibility of the device

installed, please refer to https://www.asus.com/support/download-center/ for

the list of supported peripherals.

Storage device slot

Supports 4 x M.2 slots and 2 x SATA 6Gb/s

ports

AMD Ryzen 9000 & 7000 Series Desktop

Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280/22110

(supports PCIe 5.0 x4 mode)*

AMD Ryzen 8000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2280/22110 (Not

supports)**

AMD X870 Chipset

M.2_3 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)***

M.2_4 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)

2 x SATA 6Gb/s ports

* M.2_2 shares bandwidth with PCIEX16(G5).

When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only.

** M.2_2 will be disabled when using AMD

Ryzen 8000 Series Desktop Processors.

*** M.2_3 shares bandwidth with

PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be

disabled.

RAID support

AMD RAIDXpert2 Technology*

Ryzen 9000 Series Processors: RAID

0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

* Specifications vary by CPU types.

Network functions

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless/Bluetooth

Wi-Fi 7 (MediaTek MT7925)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz frequency band**

Supports Wi-Fi 7 160MHz bandwidth

Bluetooth® v5.4***

*Wi-Fi features may vary depending on the

operating system

For

Windows 11, Wi-Fi 7 will require 24H2 or

later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi

6E.

For

Windows 10, please note that no driver is available, please refer to the Wi-Fi

chipset vendor's website for details.

** Wi-Fi 6GHz frequency band and bandwidth

regulations may vary between countries.

*** The Bluetooth® version may vary, please

refer to the Wi-Fi module manufacturer's website for the latest

specifications.

USB

Rear USB (Total 14 ports)

2 x USB4® (40Gbps) ports (2 x USB Type-C®)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C® with up to 30W PD/PPS Fast-charge)**

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB

Type-C®)

1 x USB 5Gbps header supports 2 additional

USB 5Gbps ports

2 x USB 2.0 headers support 4 additional

USB 2.0 ports

* USB Type-C® power delivery output: max.

5V/3A

** USB Type-C® power delivery output: 5V/9V

max. 3A, 12V max 2.5A, 15V max. 2.0A

Sound effects

Realtek ALC1220P 7.1 Surround Sound High

Definition Audio CODEC*

- Impedance sense for front and rear

headphone outputs

- Internal audio Amplifier to enhance the

highest quality sound for headphones and speakers

- Supports: Jack-detection,

Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback

output and 113 dB SNR recording input (Line-in)

- Supports up to 32-Bit/192 kHz playback*

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Rear optical S/PDIF out port

- Premium audio capacitors

-Audio cover

* The LINE OUT port on the rear panel does

not support spatial audio. If you wish to use spatial audio, make sure to

connect your audio output device to the audio jack on the front panel of your

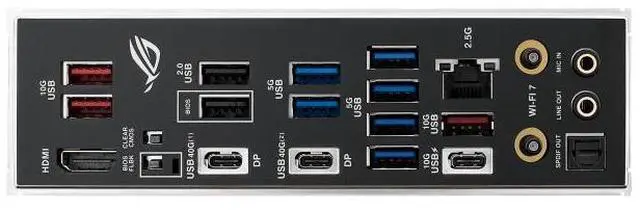

chassis or use a USB interface audio Rear panel device ports:

2 x USB4® (40Gbps) ports (2 x USB Type-C®)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C® with up to 30W PD/PPS Fast-charge)**

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI port

1xWi-Fi module

1 x Intel® 2.5Gb Ethernet

2 x audio jacks

1 x Optical S/PDIF out port

1 x BIOS FlashBack button

1xClearCMOSbutton

Built-in I/O device interface

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

2 x 8-pin +12V CPU Power connector

Storage Related

4 x M.2 slots (Key M)

2 x SATA 6Gb/s ports

USB

1 x USB 20Gbps connector (supports USB

Type-C®)

1 x USB 5Gbps header supports 2 additional

USB 5Gbps ports

2 x USB 2.0 headers support 4 additional

USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Chassis Intrusion header

1 x CPU overvoltage jumper

1 x Front Panel Audio header (F_AUDIO)

1 x Start button

1 x 10-1 pin Front Panel System header

1 x Thermal Sensor header
