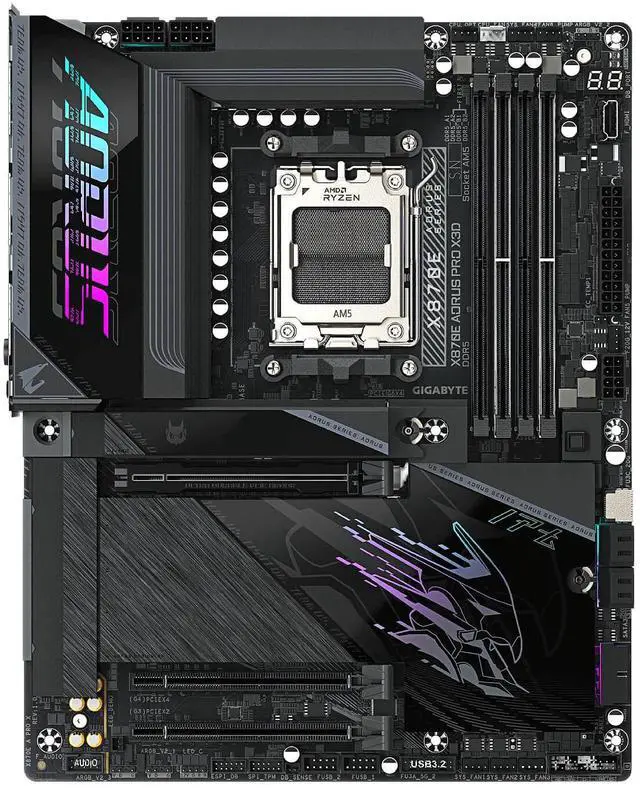

    Gigabyte X870E AORUS PRO X3D AM5 DDR5 ATX M.2 PCIe USB Type-C motherboard

    Be the first to review this product...
    • X3D Turbo Mode 2.0 delivers enhanced gaming and multitasking performance over the first generation. Built-in AI model and hardware circuits dynamically optimize X3D processor parameters in real-time, significantly boosting Ryzen X3D performance.
    • Through GIGABYTE's innovative X3D Turbo Mode 2.0 technology, users can enjoy a smoother gaming experience.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. CPU
    2. AMD Socket AM5, support for:
    3. AMD Ryzen 9000 Series Processors/
    4. AMD Ryzen 8000 Series Processors/
    5. AMD Ryzen 7000 Series Processors
    6. (Go to GIGABYTE's website for the latest CPU support list.)
    7. Chipset
    8. AMD X870E
    9. Memory
    10. Support for DDR5 9000(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8200(O.C.)/ 8000(O.C) / 7800(O.C) / 7600(O.C) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 MT/s memory modules.
    11. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    12. Dual channel memory architecture
    13. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    14. Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    15. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    16. Onboard Graphics
    17. Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4® Controller:
    18. - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz
    19. * Support for DisplayPort 1.4 version and HDR

    21. Integrated Graphics Processor with AMD Radeon Graphics support:
    22. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    23. * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    24. ** Support for native HDMI 2.1 TMDS compatible ports.

    26. - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
    27. * Support for HDMI 1.4 version

    29. (Graphics specifications may vary depending on CPU support.)
    30. Audio
    31. Realtek® ALC1220 CODEC
    32. * The back panel line out jack supports DSD audio.

    34. High Definition Audio
    35. 2/4/5.1/7.1-channel
    36. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    38. Support for S/PDIF Out
    39. LAN
    40. Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
    41. Wireless Communication module
    42. Qualcomm® Wi-Fi 7 QCNCM865
    43. - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
    44. - BLUETOOTH 5.4
    45. - Support for 11be 320MHz wireless standard
    46. (Actual data rate may vary depending on environment and equipment.)
    47. * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

    49. ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

    51. ***Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details

    53. Expansion Slots
    54. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    55. AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
    56. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    57. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    58. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    60. Chipset:
    61. - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    62. - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
    63. Storage Interface
    64. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    65. AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    66. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    67. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    68. 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    69. AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    70. * The M2B_CPU connector shares bandwidth with the ASMedia USB4® controller. When a device is installed in theM2B_CPU connector, both theM2B_CPU connector and the USB4 port supported by the ASMedia USB4® controller operate at up to x2 bandwidth. When using an AMD Ryzen 8000 Series-Phoenix 1 or Phoenix 2 processor, the USB4 port supported by the ASMedia USB4® controller operates at up to x2 bandwidth, and the M2B_CPU connector becomes unavailable.

    72. 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    73. 4 x SATA 6Gb/s connectors
    74. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    75. * RAID 5 is only available on AMD Ryzen 9000 Series Processors

    77. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    78. USB
    79. CPU+ASMedia USB4® controller:
    80. - 2 x USB4® USB Type-C® ports on the back pane
    81. CPU:
    82. - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    83. Chipset+USB 3.2 Gen 1 Hub:
    84. - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
    85. Chipset:
    86. - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header (Supports up to 65W PD 3.0/QC 4+ fast charging)
    87. * For precautions regarding the fast charging function, refer to "USB Type-C® Header" in Chapter 2-7, "Internal Connectors."

    89. - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    90. - 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    91. - 3 x USB 3.2 Gen 1 ports on the back panel
    92. - 4 x USB 2.0/1.1 ports available through the internal USB headers
    93. Internal I/O Connectors
    94. 1 x 24-pin ATX main power connector
    95. 2 x 8-pin ATX 12V power connectors
    96. 1 x PCIe power connector
    97. 1 x CPU fan header
    98. 1 x CPU fan/water cooling pump header
    99. 4 x system fan headers
    100. 2 x system fan/water cooling pump headers
    101. 3 x addressable RGB Gen2 LED strip headers
    102. 1 x RGB LED strip header
    103. 4 x SATA 6Gb/s connectors
    104. 4 x M.2 Socket 3 connectors
    105. 1 x front panel header
    106. 1 x front panel audio header
    107. 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    108. 2 x USB 3.2 Gen 1 headers
    109. 2 x USB 2.0/1.1 headers
    110. 1 x noise detection header
    111. 1 x HDMI port (Note)
    112. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    113. 2 x temperature sensor headers
    114. 1 x reset jumper
    115. 1 x Clear CMOS jumper

    117. (Note) Actual support may vary by CPU.

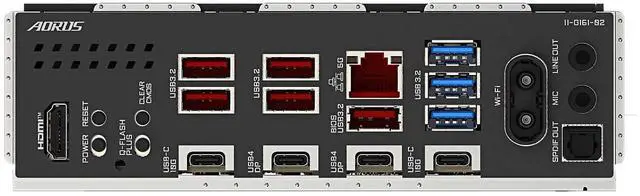

    118. Back Panel Connectors
    119. 1 x HDMI port (Note)
    120. 1 x reset button
    121. 1 x power button
    122. 1 x Clear CMOS button
    123. 1 x Q-Flash Plus button
    124. 5 x USB 3.2 Gen 2 Type-A ports (red)
    125. 2 x USB Type-C® ports, with USB 3.2 Gen 2 support
    126. 2 x USB4® USB Type-C® ports (DisplayPort (Note))
    127. 1 x RJ-45 port
    128. 3 x USB 3.2 Gen 1 ports
    129. 2 x antenna connectors (2T2R)
    130. 2 x audio jacks
    131. 1 x optical S/PDIF Out connector

    133. (Note) Actual support may vary by CPU.
    134. I/O Controller
    135. iTE® I/O Controller Chip
    136. H/W Monitoring
    137. Voltage detection
    138. Temperature detection
    139. Fan speed detection
    140. Water cooling flow rate detection
    141. Fan fail warning
    142. Fan speed control
    143. * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

    145. Noise detection
    146. BIOS
    147. 1 x 512 Mbit flash
    148. Use of licensed AMI UEFI BIOS
    149. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    150. Unique Features
    151. Support for GIGABYTE Control Center (GCC)
    152. * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

    154. Support for Q-Flash
    155. Support for Q-Flash Plus
    156. Support for Smart Backup
    157. Bundled Software
    158. Norton® Internet Security (OEM version)
    159. Operating System
    160. Support for Windows 11 64-bit
    161. Form Factor
    162. ATX Form Factor; 30.5cm x 24.4cm
