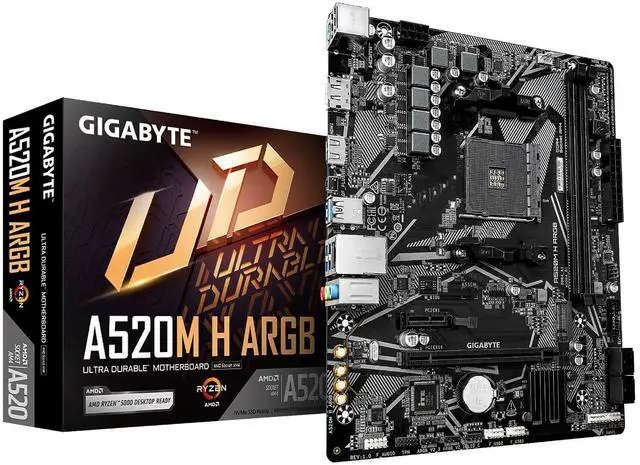

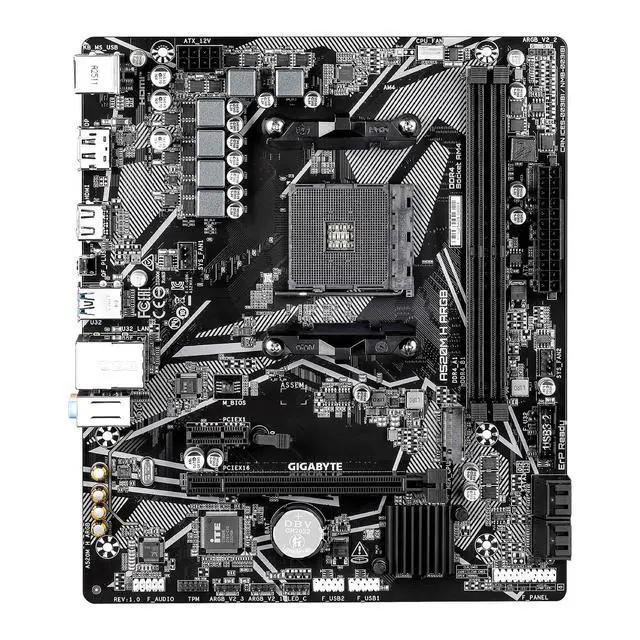

Gigabyte AMD A520M H ARGB motherboard DDR4 Micro ATX AM4 M.2 PCIe DisplayPort
- AMD A520 Ultra Durable Motherboard with GbE LAN, ARGB header, Q-Flash Plus, PCIe 3.0 x4 M.2, Smart Fan 6, Anti-Sulfur Resistors Design
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Integrated ARGB header and Q-Flash Plus button
- PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- Fast Network: GbE LAN
- 8-Channel HD Audio with High Quality Audio Capacitors
- Rear HDMI and DisplayPort for Multi-display Support
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- GIGABYTE CONTROL CENTER (GCC), Simple and Easy Use
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
- CPU
- AMD Socket AM4, support for:
- AMD Ryzen 5000 G-Series Processors/
- AMD Ryzen 5000 Series Processors/
- AMD Ryzen 4000 G-Series Processors/
- AMD Ryzen 3000 G-Series Processors/
- AMD Ryzen 3000 Series Processors
- (Go to GIGABYTE's website for the latest CPU support list.)
- Chipset
- AMD A520
- Memory
- 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
- (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support
- List" on GIGABYTE's website for more information.)
- Onboard Graphics
- Integrated Graphics Processor with AMD Radeon Graphics support:
- - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
- * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
- - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
- ** Support for native HDMI 2.1 TMDS compatible ports.
- (Graphics specifications may vary depending on CPU support.)
- Maximum shared memory of 16 GB
- Audio
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- LAN
- Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Expansion Slots
- CPU:
- - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
- Chipset:
- - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- Storage Interface
- 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
- USB
- CPU:
- - 4 x USB 3.2 Gen 1 ports on the back panel
- Chipset:
- - 2 x USB 3.2 Gen 1 ports available through the internal USB header
- - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
- Internal I/O Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 3 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x Clear CMOS jumper
- Back Panel Connectors
- 2 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x DisplayPort*
- 1 x HDMI port*
- 1 x Q-Flash Plus button
- 4 x USB 3.2 Gen 1 ports
- 1 x RJ-45 port
- 3 x audio jacks
- * Actual support may vary by CPU.
- I/O Controller
- iTE® I/O Controller Chip
- H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Overheating warning
- Fan fail warning
- Fan speed control
- * Whether the fan speed control function is supported will depend on the fan you install.
- BIOS
- 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Unique Features
- Support for GIGABYTE Control Center (GCC)
- * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
- Bundled Software
- Norton® Internet Security (OEM version)
- Operating System
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
- Form Factor
- Micro ATX Form Factor; 23.3cm x 19.8cm
