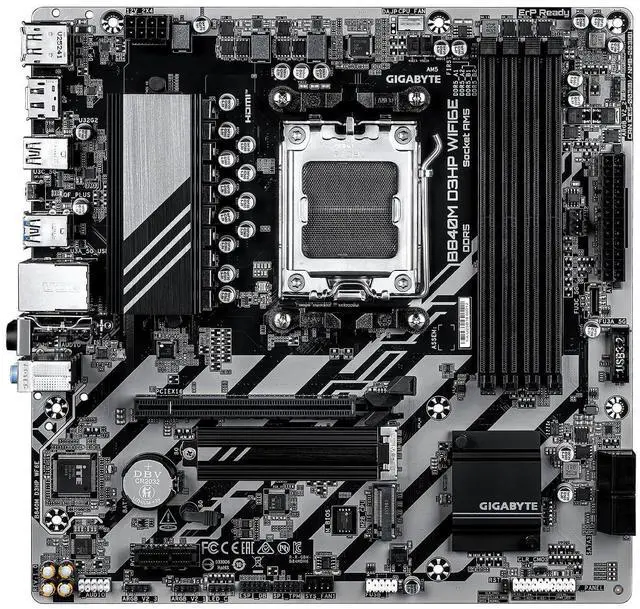

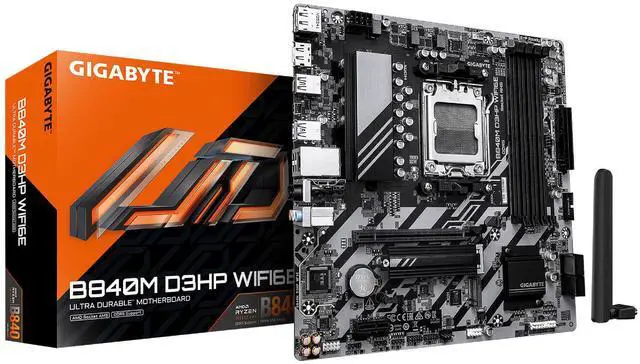

    GIGABYTE B840M D3HP WIFI6E AM5 Micro-ATX Motherboard DDR5 M.2 PCIe USB Type-C

    Be the first to review this product...
    • X3D Turbo Mode : Unleash new era gaming performance
    • DDR5 OC up to 8200MT/s
    • AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
    • Digital twin 8+2+2 phases VRM solution
    • Dual Channel DDR5 : 4*DIMMs with AMD EXPOMemory Module Support
    • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
    • EZ-Latch : PCIe and M.2 slots with Quick Release Design
    • Ultra-Fast Storage : 2*M.2 slots, including PCIe 4.0 x4
    • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
    • Fast Networking : GbE LAN & Wi-Fi 6E
    • Extended Connectivity : HDMI, 2*Displayport
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    1. CPU
    2. AMD Socket AM5, support for:
    3. AMD Ryzen 9000 Series Processors/
    4. AMD Ryzen 8000 Series Processors/
    5. AMD Ryzen 7000 Series Processors
    6. (Go to GIGABYTE's website for the latest CPU support list.)
    7. Chipset
    8. AMD B840
    9. Memory
    10. Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s
    11. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
    12. Dual channel memory architecture
    13. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    14. Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    15. (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
    16. Onboard Graphics
    17. Integrated Graphics Processor with AMD Radeon Graphics support:
    18. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
    19. * Support for DisplayPort 1.4 version.

    21. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    22. * Support for HDMI 2.1 version and HDCP 2.3.
    23. ** Support for native HDMI 2.1 TMDS compatible ports.

    25. (Graphics specifications may vary depending on CPU support.)
    26. Support for up to triple-display at the same time
    27. Audio
    28. Realtek® Audio CODEC
    29. High Definition Audio
    30. 2/4/5.1/7.1-channel
    31. * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    32. LAN
    33. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    34. Wireless Communication module
    35. MediaTek Wi-Fi 6E MT7902
    36. - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    37. - BLUETOOTH 5.3
    38. - Support for 11ax 160MHz wireless standard
    39. (Actual data rate may vary depending on environment and equipment.)
    40. * Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.
    41. Expansion Slots
    42. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    43. AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode
    44. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    45. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    46. * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

    48. Chipset:
    49. - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    50. Storage Interface
    51. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
    52. AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    53. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    54. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    55. 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
    56. AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    57. AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    58. AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
    59. 4 x SATA 6Gb/s connectors
    60. RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    61. * RAID 5 is only available on AMD Ryzen 9000 Series Processors.

    63. RAID 0, RAID 1, and RAID 10 support for SATA storage devices
    64. USB
    65. CPU:
    66. - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
    67. - 1 x USB 3.2 Gen 1 port on the back panel
    68. - 1 x USB 2.0/1.1 port on the back panel
    69. Chipset:
    70. - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    71. - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    72. - 2 x USB 3.2 Gen 1 ports, available through the internal USB header
    73. - 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    74. Internal I/O Connectors
    75. 1 x 24-pin ATX main power connector
    76. 1 x 8-pin ATX 12V power connector
    77. 1 x CPU fan header
    78. 2 x system fan headers
    79. 3 x addressable RGB Gen2 LED strip headers
    80. 1 x RGB LED strip header
    81. 2 x M.2 Socket 3 connectors
    82. 4 x SATA 6Gb/s connectors
    83. 1 x front panel header
    84. 1 x front panel audio header
    85. 1 x USB Type-C® header, with USB 3.2 Gen 1 support
    86. 1 x USB 3.2 Gen 1 header
    87. 1 x USB 2.0/1.1 header
    88. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    89. 1 x reset jumper
    90. 1 x Clear CMOS jumper

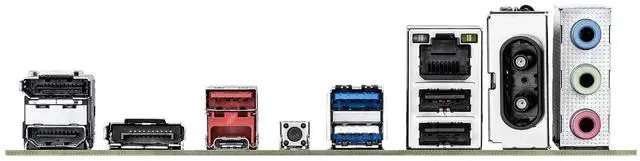

    91. Back Panel Connectors
    92. 1 x USB Type-C® port, with USB 3.2 Gen 1 support
    93. 1 x USB 3.2 Gen 2 Type-A port (red)
    94. 1 x USB 3.2 Gen 1 port
    95. 3 x USB 2.0/1.1 ports
    96. 1 x HDMI port (Note)
    97. 2 x DisplayPorts (Note)
    98. 1 x Q-Flash Plus button
    99. 1 x RJ-45 port
    100. 2 x antenna connectors (1T1R)
    101. 3 x audio jacks

    103. (Note) Actual support may vary by CPU.
    104. I/O Controller
    105. iTE® I/O Controller Chip
    106. H/W Monitoring
    107. Voltage detection
    108. Temperature detection
    109. Fan speed detection
    110. Water cooling flow rate detection
    111. Fan fail warning
    112. Fan speed control
    113. * Whether the fan speed control function is supported will depend on the fan you install.
    114. BIOS
    115. 1 x 256 Mbit flash
    116. Use of licensed AMI UEFI BIOS
    117. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
