8 Inch Industrial Panel PC All In One PC Resistive Touch Screen Computer Front Panel IP65 Intel Celeron J1900 Processor Windows or Linux Dual Lan 1xHD-MI 3xCOM 4xUSB Fanless 4GB Ram 64GB SSD
- Industrial Grade 8 Inch LED Screen Panel
- Imported Resistive Touch Screen
- Front Panel IP65
- Intel Celeron Processor J1900
- SO DIMM 1* DDR3L 1333, Max. 8G RAM+1* mSATA SSD
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Z18
Panel Specification:
1. Industrial Grade 8 Inch LED Screen Panel
2. Imported Resistive Touch Screen
3. Front Panel IP65
CPU: Intel Celeron Processor J1900
Memory: SO DIMM 1* DDR3L 1333, Max. 8G RAM
Storage: 1* mSATA SSD

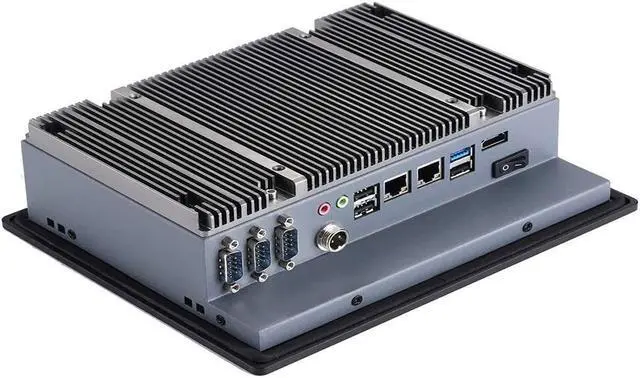

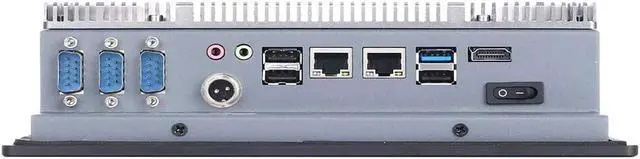

I/O: RS485/422+ 2*RS232+ 2*LAN+ HDMI+ 3*USB2.0+ USB 3.0+ Audio
Cooling System: Fanless
BIOS: Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog and Other Functions
Network: Realtek 8111E
Audio: ALC662
Physical Dimension: 225.8*185.8*65 (mm)
Weight: 1.9KGS
Opening Hole Size: 208.4*166.4mm (Length*Width)
Display Parameters:
Resolution: 1024*768
Display Brightness: 200cd/m(2)
Contrast: 500
Response Time: 5ms
Durability (number of touches): > 35 million times
Installation Method:
Standard VESA screw hole (75*75 or 100*100mm) for flexible installation
Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
Operating Temperature: 0 ~ 50°C with SSD,0 ~ 40°C with HDD
Storage Temperature: -20 ? ~ 60 ?
Operating Humidity: 10% ~ 95% @ 40 ? without condensation
Power Supply: DC100-240V AC/50-60Hz, 12V4A
Packing List: Z18 Panel PC+ Power supply+ Power Cord+ Touch Pen+ Embedded Buckle Kit+ Warranty Card
System Support: Windows 7/10,Linux Ubuntu etc
System Default Option: Windows 10 pro in English
ATTENTION: For other options, Linux or other OS, other system language, do leave us message on the order, thank you.
Panel Specification:
1. Industrial Grade 8 Inch LED Screen Panel
2. Imported Resistive Touch Screen
3. Front Panel IP65
CPU: Intel Celeron Processor J1900
Memory: SO DIMM 1* DDR3L 1333, Max. 8G RAM
Storage: 1* mSATA SSD
I/O: RS485/422+ 2*RS232+ 2*LAN+ HDMI+ 3*USB2.0+ USB 3.0+ Audio
Cooling System: Fanless
BIOS: Support Diskless Start, Wake-Up on Lan, Call Boot (Power On Boot), Watchdog and Other Functions
Network: Realtek 8111E
Audio: ALC662
Physical Dimension: 225.8*185.8*65 (mm)
Weight: 1.9KGS
Opening Hole Size: 208.4*166.4mm (Length*Width)
Display Parameters:
Resolution: 1024*768
Display Brightness: 200cd/m(2)
Contrast: 500
Response Time: 5ms
Durability (number of touches): > 35 million times
Installation Method:
Standard VESA screw hole (75*75 or 100*100mm) for flexible installation
Embedded (Recommended)/Wall-mounted/Desktop/Cantilevered/Other Installation Methods
Operating Temperature: 0 ~ 50°C with SSD,0 ~ 40°C with HDD
Storage Temperature: -20 ? ~ 60 ?
Operating Humidity: 10% ~ 95% @ 40 ? without condensation
Power Supply: DC100-240V AC/50-60Hz, 12V4A
Packing List: Z18 Panel PC+ Power supply+ Power Cord+ Touch Pen+ Embedded Buckle Kit+ Warranty Card
System Support: Windows 7/10,Linux Ubuntu etc
System Default Option: Windows 10 pro in English
ATTENTION: For other options, Linux or other OS, other system language, do leave us message on the order, thank you.
