Partaker 15 Inch TFT LED IP65 Industrial Panel PC, 10 Point Projected Capacitive Touch Screen, Core I5 4200U, Windows 11, A23, VGA, HDMI, LAN, 2 x COM, 8G RAM, 128G SSD
Limited time offer, ends 12/12 By Partaker Mini PC‘s Marketplace
- 15-inch TFT LED industrial-grade panel with 10-point capacitive touch, IP65 front protection, and 1024x768 resolution, built for 24/7 harsh-environment operation.
- Equipped with 4th Gen Core i5 processor and Win 11 Pro for seamless multitasking, industrial automation, and stable 24/7 performance.
- Aluminum alloy fanless passive cooling ensures zero noise, ultra-low energy use, and dust-resistant reliability in continuous-duty settings.
- 12V DC input, HDMI/VGA, 2x USB 3.0, 2x USB 2.0, 2x COM, LAN, audio ports, and auto-power recovery; includes embedded mounting kits.
- Slim 354.3 x 278.3 x 54mm (3.6kg) design with branded SSD/HDD, power cord, and plug-and-play setup for immediate industrial integration.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker A23
Panel: 15" TFT LED panel, front panel protection IP65
CPU: Intel I5 Gen. 4th CPU, ship one of them
Memory: 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD

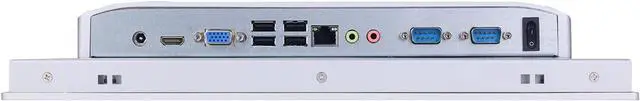

I/O: 12V DC, HDMI, VGA, 2 x USB 3.0, 2 x USB 2.0, LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW, Touch Buttons
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 354.3 x 278.3 x 54mm
Weight: 3.6 kgs
Opening Hole: 348 x 272mm
Resolution: 1024 x 768
Perspective: 80 (L), 80 (R), 60 (T), 60 (B)
Brightness: 350cd/m2
Contrast: 1000
Backlight Life: 30, 000 hours (min. )
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 10% ~ 95% @ 40°C without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: Partaker A23 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
Panel: 15" TFT LED panel, front panel protection IP65
CPU: Intel I5 Gen. 4th CPU, ship one of them
Memory: 1 x SODIMM DDR3L 1333/1600, max. to 8GB RAM
Storage: 1 x mSATA SSD, 1 x 2.5" SATA SSD/HDD
I/O: 12V DC, HDMI, VGA, 2 x USB 3.0, 2 x USB 2.0, LAN, AUDIO-IN&OUT, 2 x COM, POWER_SW, Touch Buttons
Expansion: Mini PCIE slot for WiFi/4G, with sim slot
Watchdog Timer: 255
Cooling System: Aluminum alloy, fanless
Dimension: 354.3 x 278.3 x 54mm
Weight: 3.6 kgs
Opening Hole: 348 x 272mm
Resolution: 1024 x 768
Perspective: 80 (L), 80 (R), 60 (T), 60 (B)
Brightness: 350cd/m2
Contrast: 1000
Backlight Life: 30, 000 hours (min. )
Touch Screen: 10-point projected capacitive touch screen
Transmittance: 86±5% at 550 nm wavelength
Durability (Touch Count): 200 million times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Operating Temperature: 0 ~ 50°C with SSD, 0 ~ 40°C with HDD
Storage Temperature: -20°C ~ 60°C
Operating Humidity: 10% ~ 95% @ 40°C without condensation
EMC/Safety: CCC
Power Supply: DC100-240V AC/50-60Hz, 12V
Packing List: Partaker A23 Panel PC, Power Supply, Power Cord, Embedded Buckle Kits, Warranty Card
System Support: Windows 10/11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you
