Partaker 15 Inch IP65 Industrial Panel PC, Resistive Touchscreen Computer, I3 5005U 5010U, Win 10 Pro, A27, Dual Lan, HDMI, 2 x COM, 4 x USB, 4GB RAM 128GB SSD

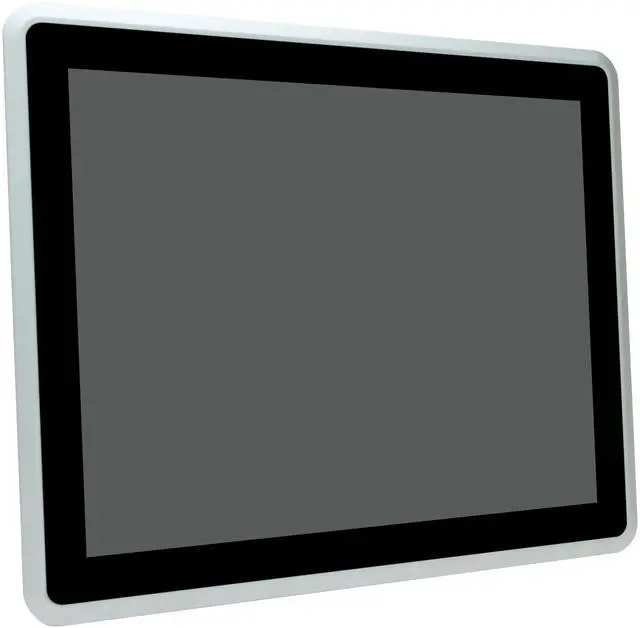

- 15-Inch Industrial Touch Panel PC: Equipped with a 15-inch TFT LCD display offering 1024×768 resolution, supporting optional capacitive multi-touch screen for intuitive industrial interface control.

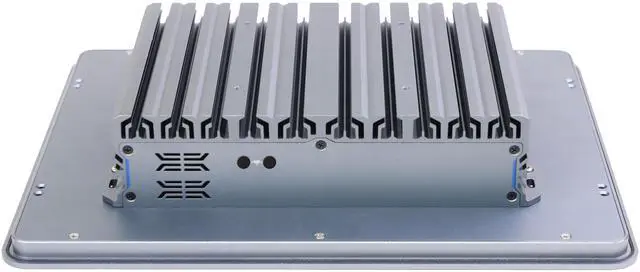

- Fanless Rugged Aluminum Chassis: Engineered with a completely fanless aluminum alloy enclosure, ensuring silent, reliable, and zero-maintenance operation in demanding, dusty environments.
- IP65 Front Seal & Embedded Mount: Features an IP65-rated dustproof and waterproof front panel. Allows secure embedded installation (355×279 mm panel cutout) for flexible integration.
- Comprehensive Industrial I/O & Wireless Expansion: Provides dual Gigabit Ethernet, dual configurable RS232/485 serial ports (expandable to 6), 4× USB ports, optional GPIO, and dual mini PCIe slots for Wi-Fi, Bluetooth, or 3G/4G module expansion.
- Efficient Processing & Memory Configuration: Driven by an i3-5005U/5010U dual-core processor, supports up to 16GB DDR3 memory via two slots, one mSATA storage, and synchronous/asynchronous dual display output capability.
- Wide-Range Power & Temperature Tolerance: Designed for industrial durability with standard 12V DC input (optional 9~36V wide range) and an operating temperature range of -20 to +60.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: Partaker A27
Color: Gray (color customizable)
Material: Aluminum alloy shell
Processor: Intel Core I3 5005U/5010U Processor, 3M Cache, 2.00 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR3/16G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)

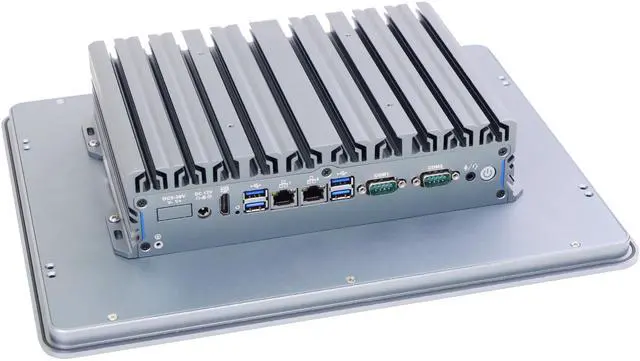

I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: Screen size-15 inch TFT-LCD; screen brightness-350 cd/m2; viewing Angle-full Angle, Screen ratio-( 4:3 ); resolution-1024*768
Touch screen: Resistive high sensitivity touch screen (default), life up to 50 million times; (optional capacitive screen);
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 366 * 290 * 77 mm
Embedded size: 355 * 279 mm
Weight: 4.6KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
Color: Gray (color customizable)
Material: Aluminum alloy shell
Processor: Intel Core I3 5005U/5010U Processor, 3M Cache, 2.00 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR3/16G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)
I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: Screen size-15 inch TFT-LCD; screen brightness-350 cd/m2; viewing Angle-full Angle, Screen ratio-( 4:3 ); resolution-1024*768
Touch screen: Resistive high sensitivity touch screen (default), life up to 50 million times; (optional capacitive screen);
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 366 * 290 * 77 mm
Embedded size: 355 * 279 mm
Weight: 4.6KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
