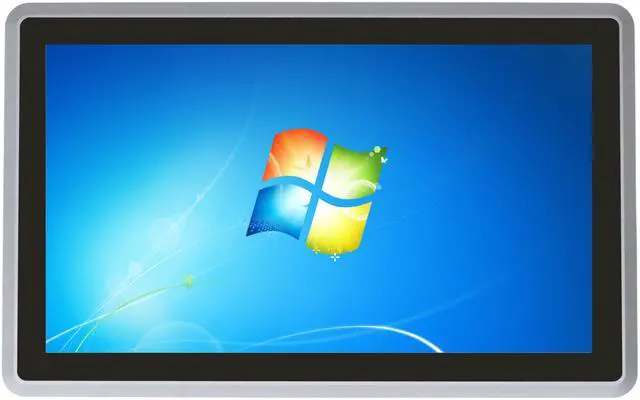

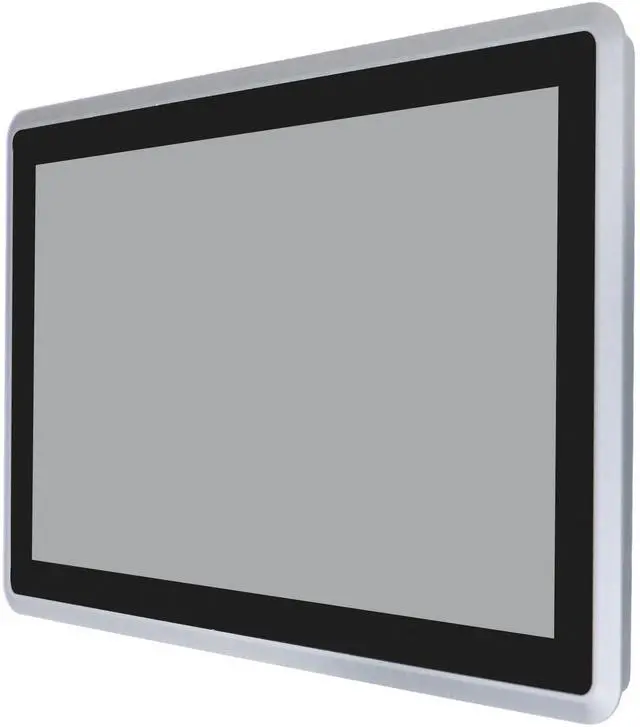

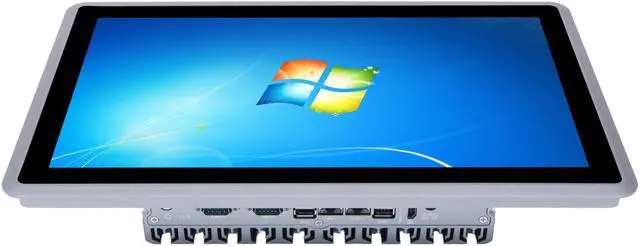

Partaker 15.6 Inch Touch Screen Industrial Panel PC, Resistive Industrial Monitor, All In One Computer, I3 5005U 5010U, Win 10 Pro, A28, Dual Lan, HDMI, 2 x COM, 4 x USB, 8GB RAM 128GB SSD
- 15.6" Industrial Touch Panel PC Features a 15.6-inch Full HD (1920x1080) TFT-LCD with high brightness and wide viewing angle, coupled with a durable, high-sensitivity resistive touchscreen (optional capacitive).
- Fanless & Rugged Industrial Design Constructed with an all-aluminum alloy chassis and a fanless cooling system, ensuring silent, reliable, and maintenance-free operation in harsh, dusty environments.
- IP65 Front Protection & Embedded Mounting Equipped with a fully flat, IP65-rated front panel resistant to dust and water ingress, supporting secure embedded installation via a standard 385x234.3 mm panel cutout.
- Rich I/O & Flexible Expansion Options Comprehensive connectivity includes dual Gigabit LAN ports, dual configurable RS232/485 COM ports (expandable to 6), 4x USB ports, audio, and dual mini PCIe slots for Wi-Fi, BT, or 3G/4G cellular module integration.
- Enhanced Dual-Core Processing & Memory Built with a dual-core processor, supports up to 16GB DDR3 memory via two slots and mSATA solid-state storage for stable performance in demanding applications.
- Wide-Range Power & Extended Temperature Operation Accepts standard 12V DC input with customizable wide-range 9~36V support, operating reliably across an extensive temperature range from -20 to +60 for versatile industrial deployment.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model: Partaker A28
Color: Gray (color customizable)
Material: Aluminum alloy + steel plate
Processor: Intel Core I3 5005U Processor, 3M Cache, 2.00 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR3/16G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)

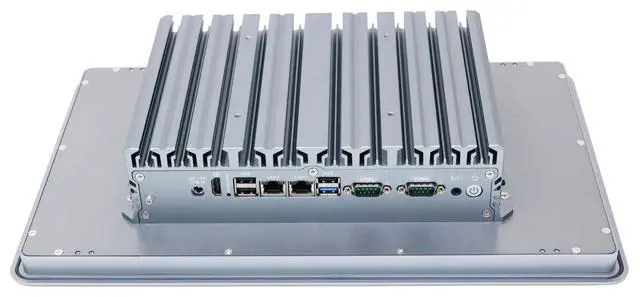

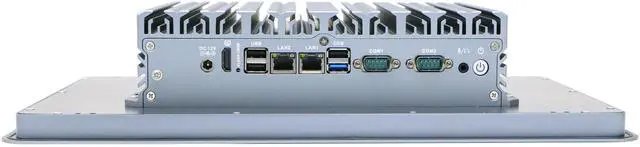

I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: 15.6 inch TFT-LCD; screen brightness-400 cd/m2; viewing Angle-full Angle, Screen ratio-( 16:9 ); resolution- (1920*1080)
Touch screen: Resistive high sensitivity touch screen (default), life up to 50 million times; (optional capacitive screen)
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 400 * 249.3 * 79.8 mm
Embedded size: 385 * 234.3 mm
Weight: 4.8KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
Color: Gray (color customizable)
Material: Aluminum alloy + steel plate
Processor: Intel Core I3 5005U Processor, 3M Cache, 2.00 GHz
Panel: IP65 Waterproof front panel
Memory: 2*DDR3/16G Max
BIOS: AMI EFI BIOS
Display Port: 1*HDMI, 1*LVDS (LVDS has been connected to the LCD screen, synchronous/asynchronous dual display)
Storage: 1*MSATA hard disk
Expansion slot: 2*Mini PCIE slots (support 1*WIFI/Bluetooth/3G/4G with SIM card holder, support 1* wifi)
I/O Port: 1*HDMI, 2*COM (COM1-2 RS232/485, Customizable 6 COM), 1*Power Button, 1*DC, 1*audio two-in-one, 4*USB, 2*Realtek Gigabit network ports, support network wake up /PXE
Other Functions: Power on, timer on, watchdog (0~255 level)
Expansion options: (Standard shipment does not include this interface): GPIO (4 channels), 4*COM, 2*USB)
LCD: 15.6 inch TFT-LCD; screen brightness-400 cd/m2; viewing Angle-full Angle, Screen ratio-( 16:9 ); resolution- (1920*1080)
Touch screen: Resistive high sensitivity touch screen (default), life up to 50 million times; (optional capacitive screen)
Speaker: 2*82W speakers
Input Voltage: DC12V input, customizable DC 9~36V wide voltage input
Work Temperature: -20 ~ +60 (solid state drive), surface air flow
Work Humidity: 5% ~ 95% non-condensable state
Dimension: 400 * 249.3 * 79.8 mm
Embedded size: 385 * 234.3 mm
Weight: 4.8KG s
System: Support Windows 7/10/Linux, default system with Windows 10 pro, if need other system, leave us message after order placed.
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
