Partaker 10.1 Inch Industrial IP65 Front Panel PC, Capacitive Touch Screen, Industrial Touch Computer, I5 1235U, Win 11 Pro, A18, 3 x Lan, HDMI, 6 x COM, GPIO, 8GB RAM 128GB SSD
- 10.1" industrial capacitive touch panel PC with 1280×800 resolution, 16:10 aspect ratio, 430 cd/m² brightness, and IP65-rated flat front panel for reliable HMI performance in automation and industrial environments.
- Fanless aluminum cooling ensures silent, maintenancefree 24/7 operation, supports -20°C to +60°C widetemperature range (with SSD) and 5%~95% humidity tolerance, ideal for harsh factory conditions.
- Powered by onboard Core i5-1235U (10 cores, 12 threads, up to 4.4 GHz) with integrated UHD Graphics, 1× DDR5 4800MHz SODIMM up to 32GB, and dual M.2 2280 storage (NVMe/SATA) + 2.5" SATA bay.
- Rich I/O includes 6× COM (COM3/4 configurable RS232/485), 4× USB 3.0, 2× Gigabit LAN, 1× 2.5G LAN, 4in/4out GPIO, plus Mini PCIe (WiFi/BT/4G with SIM) and M.2 EKey expansion.
- Industrialgrade reliability features include TPM 2.0, auto poweron, WakeonLAN, PXE boot, watchdog timer (0255 level), and wide 936V DC input with reverse polarity protection.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model: A18
Panel: 10.1" TFT LCD panel, IP65 full flat front panel
CPU: Intel Core i5-1235U Processor(10 cores, 12 threads, up to 4.4 GHz)
Memory: 1× DDR5 4800MHz SODIMM, MAX. 32GB RAM
Storage: 2× M. 2 2280 (1× NVMe+SATA, 1× NVMe), 1× 2.5 Inch SATA SSD/HDD
Display Ports: 1*HDMI, 1*JHDMI (optional), 1*LVDS (already connected LCD), Support 3 display

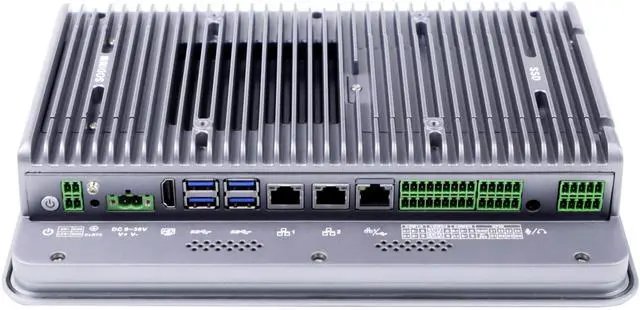

I/O: 1× power button, 1× 2×2pin PW phoenix connector, 1× CMOS, 1× 2pin Power Supply, 1× HDMI, 4× USB 3.0, 2× 1000M LAN, 1× 2.5G LAN, 1× Audio, 6× COM (Com3, Com4 can be RS232/RS485 option), GPIO (4 in and 4 out)
Expansion: 1× Mini PCIe (Support WiFi/BT/4G, with SIM slot), 1× M. 2 E-Key slot
Expand function: USB 2.0 x1, GPIO2, HDMI2; (standard product dont have it, need to be customized)
Network Card: 2× 1000M LAN + 1× 2.5G LAN
Speaker: Two 8-ohm 2-watt speaker
Cooling System: Aluminum alloy, fanless
Dimension: 271.5 × 190 × 54.35 mm
Embedded Installation: 262 × 180 mm
Weight: 2.0 kgs
Resolution: 1280 × 800
Brightness: 430 cd/m²
Viewing Angle: Full angle
Ratio: 16: 10
Touch Screen: Industrial capacitive touch screen
Life Time: The touch life can reach more than 50 million times
Installation: Embedded recommended / Wall mounted / Desktop / Cantilevered etc
Work Temperature: -20°C ~ 60°C for SSD, surface air flow
Work Humidity: 5% ~ 95% non-condensing
Power Supply: DC 9~36V wide voltage input, support reverse polarity protection
Packing List: A18 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip ×4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
Panel: 10.1" TFT LCD panel, IP65 full flat front panel
CPU: Intel Core i5-1235U Processor(10 cores, 12 threads, up to 4.4 GHz)
Memory: 1× DDR5 4800MHz SODIMM, MAX. 32GB RAM
Storage: 2× M. 2 2280 (1× NVMe+SATA, 1× NVMe), 1× 2.5 Inch SATA SSD/HDD
Display Ports: 1*HDMI, 1*JHDMI (optional), 1*LVDS (already connected LCD), Support 3 display
I/O: 1× power button, 1× 2×2pin PW phoenix connector, 1× CMOS, 1× 2pin Power Supply, 1× HDMI, 4× USB 3.0, 2× 1000M LAN, 1× 2.5G LAN, 1× Audio, 6× COM (Com3, Com4 can be RS232/RS485 option), GPIO (4 in and 4 out)
Expansion: 1× Mini PCIe (Support WiFi/BT/4G, with SIM slot), 1× M. 2 E-Key slot
Expand function: USB 2.0 x1, GPIO2, HDMI2; (standard product dont have it, need to be customized)
Network Card: 2× 1000M LAN + 1× 2.5G LAN
Speaker: Two 8-ohm 2-watt speaker
Cooling System: Aluminum alloy, fanless
Dimension: 271.5 × 190 × 54.35 mm
Embedded Installation: 262 × 180 mm
Weight: 2.0 kgs
Resolution: 1280 × 800
Brightness: 430 cd/m²
Viewing Angle: Full angle
Ratio: 16: 10
Touch Screen: Industrial capacitive touch screen
Life Time: The touch life can reach more than 50 million times
Installation: Embedded recommended / Wall mounted / Desktop / Cantilevered etc
Work Temperature: -20°C ~ 60°C for SSD, surface air flow
Work Humidity: 5% ~ 95% non-condensing
Power Supply: DC 9~36V wide voltage input, support reverse polarity protection
Packing List: A18 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip ×4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
Application: Industrial automation, medical, logistics and transportation, warehousing, machine vision etc.
ATTENTION: Other options, Linux or other system, other system language, do leave us message on the order, thank you.
