Feature
Highly efficient standard compute
Up to 128 CPU cores
Up to 4 dual-slot GPU*
Up to 8 single-slot GPU
XPU
Ultra I/O structure
32 DDR5 memory slots
5600MT/s Data Rate
24 U.2 NVME SSD
6 PCI-E 5.0 & 4 PCI-E 4.0 slots
2 onboard OCP3.0 slots
Multi-tier protection
Chassis intrusion detection
SGX 2.0
TPM 2.0
HDM two-factor authorization

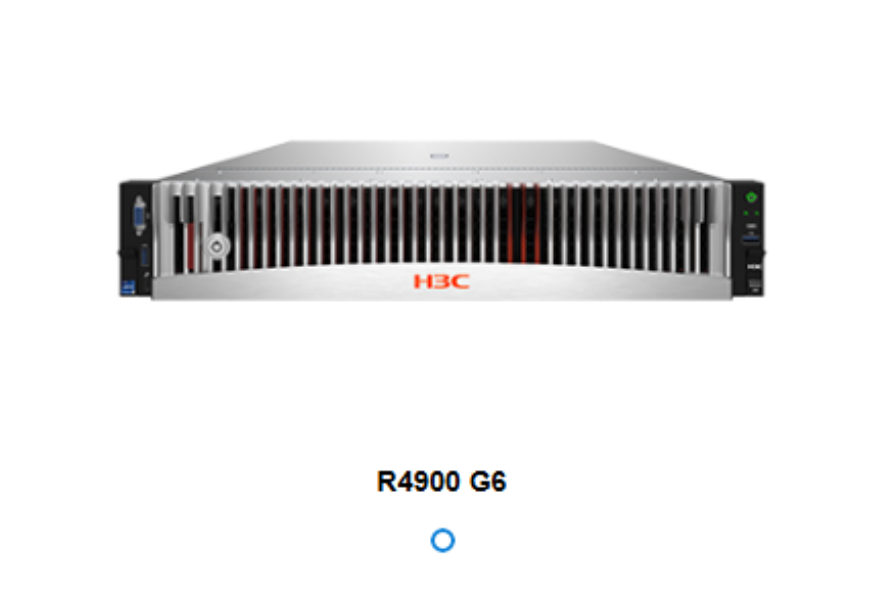

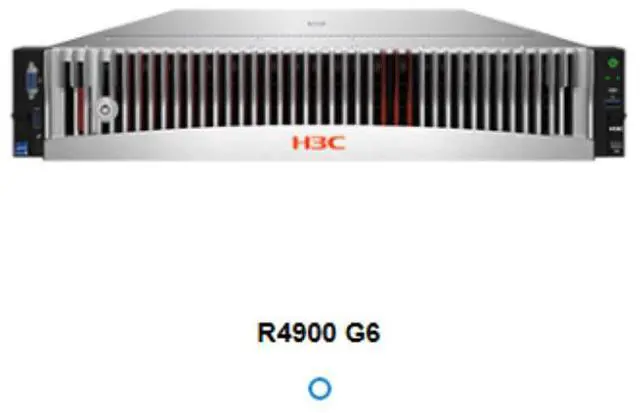

R4900 G6 Technical Specification
| Cpu | 2×4th Generation Intel®Xeon®Sapphire Rapids / 5th Generation Intel®Xeon®Emerald Rapids SP series 64 Cores for each Processor and 385W power consumption HBM technology |
|---|---|
| Chipset | Inte®C741 |
| Memory | 32 DDR5 RDIMM Slots, 5600 MT/s Data Rate, 8TB* on 2 CPU Configuration |
| RAID controller | Dedicated PCIe HBA Controller or Raid Controller Standard PCIe HBA Controller or Raid Controller |
| FBWC | 8 GB Cache, support Supercapacitor Protection |
| Storage | Optional 29 SAS/SATA Drives Front 12 LFF bays, Rear 4 LFF bays Front 25 SFF bays, Rear 4 SFF bays 24 U.2 NVMe Drives SATA/NVMe M.2 Kit, DSD Model (2×SD card kit) |
| Network | 1 Onboard 1Gbps Management Network Port 2 Onboard OCP 3.0 Slots for 4 GE or 2 10GE or 2 25GE or 2 100GE NICs PCIe Standard Slots for 1/10/25/100/200GE Ethernet Adapter, PRP NIC* |
| Expansion slots | 10 PCIe Standard Slots (6 PCIe5.0 and 4 PCIe4.0) and 2 Onboard OCP 3.0 Slots; CXL1.1 Supports Full-OCP architecture and can support up to 8 OCP3.0 slots* |
| Ports | Standard: 1 Rear VGA Port, 3 USB 3.0 Ports (1 Front, 2 Rear), 1 USB 2.0 Internal Port, 1 RJ45 Management Port Optional: 1 Rear Serial Port, Mounting Bracket Kit with 1 Type-C Port, 1 VGA Port, 1 USB 2.0 Port |
| Gpu Support | 4 Dual-Slot* or 8 Single-Slot GPU Modules |
| Security | Intelligent Front Security Bezel Chassis Intrusion Detection TPM 2.0 2FA for HDM Intel SGX2.0 |
| Power Supplies | 1+1 Redundancy Power Supply Titanium 1600W/3200W Platinum 800W/1300W/1600W/2000W/2700W DC Power Supply Hot Swappable Redundant Fans |
| Operating temperature | 5°C to 45°C (41°F to 113°F) |
| Dimensions (H×W×D) | 2U Height 87.5×445.4×780mm (3.44×17.54×30.7 in) (Without a security bezel) 87.5×445.4×808mm (3.44×17.54×31.8 in) (With a security bezel) |
