Gechic M505I 15.6" 1080P Portable Touchscreen Monitor Rear Port,Speakers,USB-C Docking for Laptop Power Delivery,HDMI Industrial Second Monitor,Vesa Mount,Gaming Xbox/PS5/Switch,45W PD FastCharging
- *Over 10 Years Experience Industrial Portable Touch Monitor: 15.6 FHD 1920x1080 with HDMI, USB Type-C inputs & HDMI output, DC-IN port

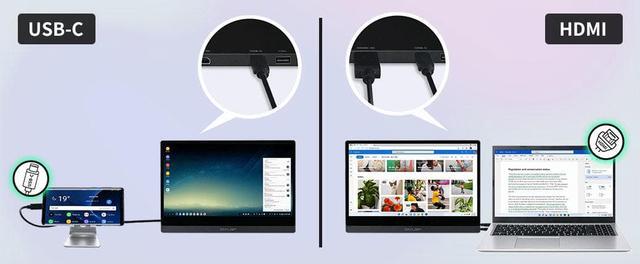

- *USB-C Charging & USB-A Expansion Port: Connect to game consoles, laptops, mobile phones for charging simultaneously and support the connection of mouse and USB drive

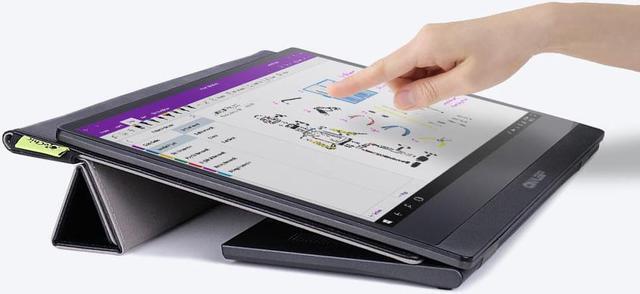

- *Capacitve Touch Panel: Being covered with a layer of 7H high hardness touch glass, and supports Windows 11/10 and ten-point touch gesture

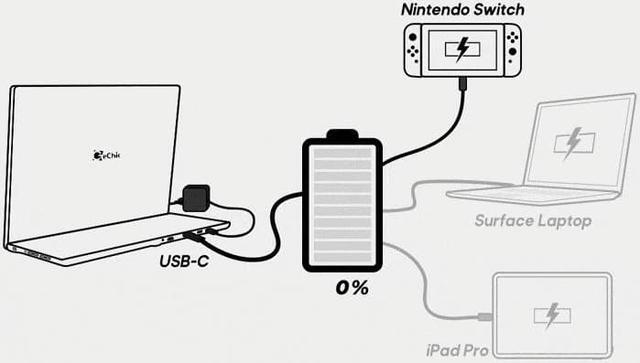

- *45W PD Fast Charging Station: The USB Type-C port on M505I not only supports USB Type-C (DP Alt) power delivery, but also 45W USB-PD fast charging, which can fast charge PD compatible devices

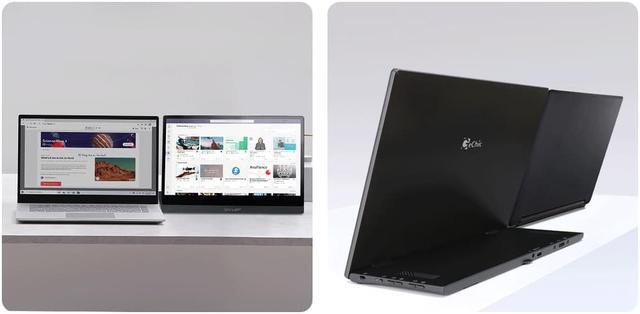

- *Foldable Design Leaves More Space: Providing 40° - 85° angles for and manipulating
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Panel: 15.6" ( 16:9 ) wide
Active Area: 344mm*194mm (WxH)
Pixel Pitch: 0.179 mm (H) * 0.179 mm (V)
Resolution: 1920 x 1080
Color Depth: 16.7M Colors
Brightness: 250 (cd/m²) (Typical)
Contrast: 700:1 (Typical)
Viewing Angle: 170° (H) /170° (V) (CR>10)
Response Time (GTG): 15 (ms) (Typical)
Touchscreen: Projective capacitive Touch Glass Screen
Surface Hardness: 7H

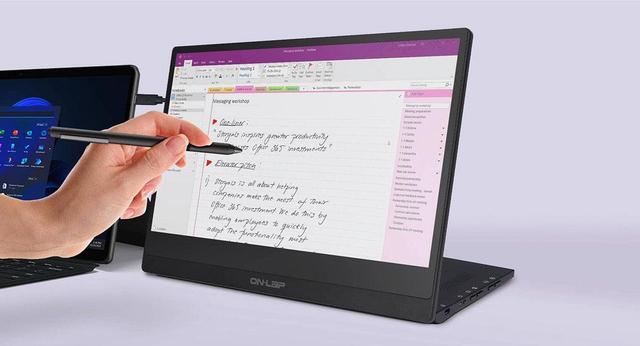

Touch Input: Finger or stylus( Diameter of Touch Point 6.0 mm)
Touch Points: 10 detections
Operation System: Windows 11, 10
HDMI Video Display: 1920x1080P(50Hz/ 59.94H z/60Hz); 1280x720P(50Hz/ 59.94H z/60Hz); 720x480P( 59.94H z/60Hz); 640x480P( 59.94H z/60Hz)
Supported Resolutions: 1920*1080 (60Hz); 1600*900 (60Hz); 1440*900 (60Hz); 1366*768 (60Hz) 1280*1024 (60Hz); 1280*960 (60Hz); 1280*800 (60Hz); 1280*768 (60Hz); 1280*720 (60Hz); 1024*768 (60Hz)
Video Input: HDMI, USB Type-C(DP 1.2 )*1
USB Output: USB-A *1 Power Output(max. ): 10W (2A) or 2.5W ( 0.5A ) (M505I Charge laptop)
Audio Output: Earphone jack ( 3.5 mm mini jack)
Speaker: 1.5W (Max. ) X2
USB-C Power Delivery: Support
HDCP: Support
HDMI CEC: Support
Power On(Max. ): 10W
Standby Mode: <1.5W
Power Off Mode: <0.5W
Rating Power: 5V--- 2.0A; 20V--- 0.5A

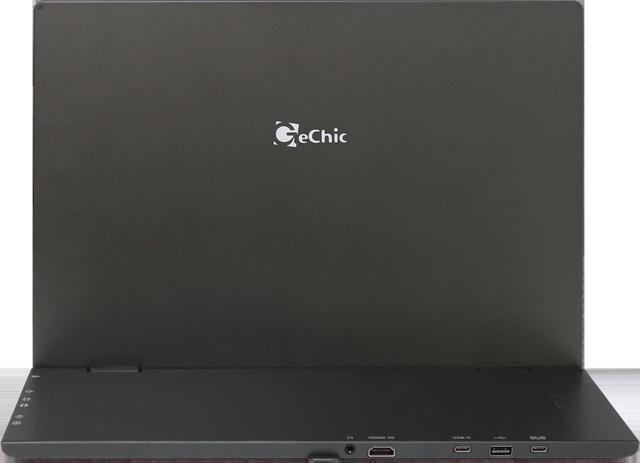

Connectivity: HDMI-IN *1 USB-A *1 USB Type-C (DP 1.2 ) *1 DC IN *1 Headphone out Jack *1
Environment:
Operating: 0~50;
Humidity: 20~90%RH Storage: -20~60; Humidity: 10~90%RH
Cabinet Colors: Front: Black Back: Black
Dimension (W*H*D): Display
top cover: 364mm*250mm* 7.2 mm I/O Base: 364mm*135mm* 10.7 mm
Weight: 1210g (monitor)
Accessories in Package: HDMI-A Video Cable*1 USB Type-C Video Cable*1 USB-A to USB-C Power and Touch Signal Cable*1 65W PD Power Adapter & Power Cord*1 M505T/I Folding Sleeve (15A3)
Optional Accessories: M505 VESA 100 Aluminum Alloy Bracket USB Type-C Video Cable (2m) mini-HDMI to HDMI-A Video Cable( 2.1 m) T1S2 Desktop Stand
Certification: BSMI, FCC, VCCI, RoHS
Warranty: 1 year limited *Product MADE-IN-TAIWAN
Active Area: 344mm*194mm (WxH)
Pixel Pitch: 0.179 mm (H) * 0.179 mm (V)
Resolution: 1920 x 1080
Color Depth: 16.7M Colors
Brightness: 250 (cd/m²) (Typical)
Contrast: 700:1 (Typical)
Viewing Angle: 170° (H) /170° (V) (CR>10)
Response Time (GTG): 15 (ms) (Typical)
Touchscreen: Projective capacitive Touch Glass Screen
Surface Hardness: 7H
Touch Input: Finger or stylus( Diameter of Touch Point 6.0 mm)
Touch Points: 10 detections
Operation System: Windows 11, 10
HDMI Video Display: 1920x1080P(50Hz/ 59.94H z/60Hz); 1280x720P(50Hz/ 59.94H z/60Hz); 720x480P( 59.94H z/60Hz); 640x480P( 59.94H z/60Hz)
Supported Resolutions: 1920*1080 (60Hz); 1600*900 (60Hz); 1440*900 (60Hz); 1366*768 (60Hz) 1280*1024 (60Hz); 1280*960 (60Hz); 1280*800 (60Hz); 1280*768 (60Hz); 1280*720 (60Hz); 1024*768 (60Hz)
Video Input: HDMI, USB Type-C(DP 1.2 )*1
USB Output: USB-A *1 Power Output(max. ): 10W (2A) or 2.5W ( 0.5A ) (M505I Charge laptop)
Audio Output: Earphone jack ( 3.5 mm mini jack)
Speaker: 1.5W (Max. ) X2
USB-C Power Delivery: Support
HDCP: Support
HDMI CEC: Support
Power On(Max. ): 10W
Standby Mode: <1.5W
Power Off Mode: <0.5W
Rating Power: 5V--- 2.0A; 20V--- 0.5A
Connectivity: HDMI-IN *1 USB-A *1 USB Type-C (DP 1.2 ) *1 DC IN *1 Headphone out Jack *1
Environment:
Operating: 0~50;
Humidity: 20~90%RH Storage: -20~60; Humidity: 10~90%RH
Cabinet Colors: Front: Black Back: Black
Dimension (W*H*D): Display
top cover: 364mm*250mm* 7.2 mm I/O Base: 364mm*135mm* 10.7 mm
Weight: 1210g (monitor)
Accessories in Package: HDMI-A Video Cable*1 USB Type-C Video Cable*1 USB-A to USB-C Power and Touch Signal Cable*1 65W PD Power Adapter & Power Cord*1 M505T/I Folding Sleeve (15A3)
Optional Accessories: M505 VESA 100 Aluminum Alloy Bracket USB Type-C Video Cable (2m) mini-HDMI to HDMI-A Video Cable( 2.1 m) T1S2 Desktop Stand
Certification: BSMI, FCC, VCCI, RoHS
Warranty: 1 year limited *Product MADE-IN-TAIWAN
