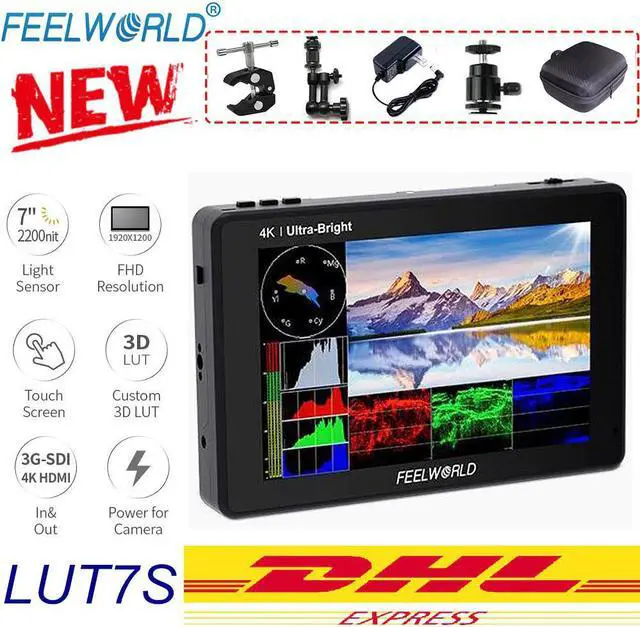

LUT7S 7 inch 2200nits 3G SDI 4K Touch Screen 3D LUT Field Monitor Full HD 1920x1200 IPS Monitor for DSLR Cameras

2200nit Daylight Viewable7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!

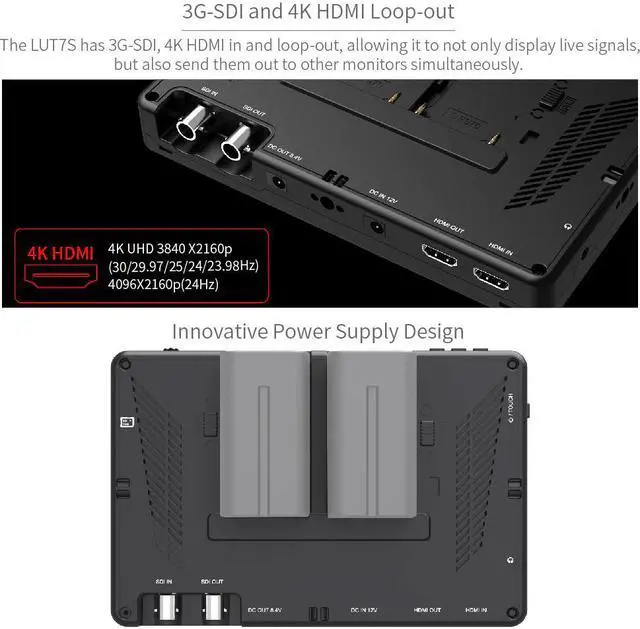

Connect to Professional Cameras, Camcorders and DSLR'sWith both 3G-SDI and 4K inputs you can connect it to any consumer camera, broadcast camera or even DSLR cameras. You also get loop thru outputs, so you can display live video or expand display on external screens or projectors with embedded audio. You can also monitor audio using the 3.5mm stereo headphone jack. For power, theres a 12V DC input and two NP-F battery slots.

SDI Support Format

720p (60/59.94/50/30/29.97/25/24/23.98)

1080i(60/59.94/50)

1080p (60/59.94/50/30/29.97/25/24/23.98)

Input/ Output Support Format

480i/576i/480p/576p

1080i (60/59.94/50)

720p (60/59.94/50/30/29.97/25/24/23.98)

1080p (60/59.94/50/30/29.97/25/24/23.98)

4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

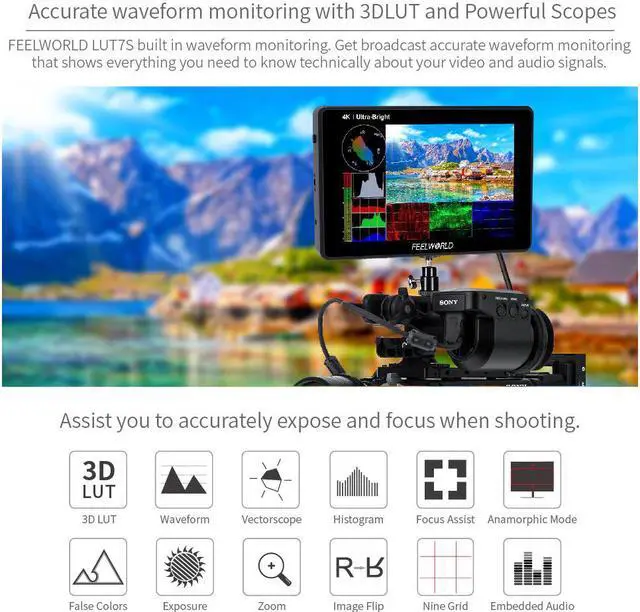

More FunctionsOur flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, support 3D LUT Log to Rec.709, user 3D LUT Upload,support Touch Menu

Parade (RGB, YUV, Y)

All Waves

Vector

RGB Histogram

Brightness Histogram

Embedded Audio

Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)

False Colors

Zebra Exposure (1%~100% adjustable)
