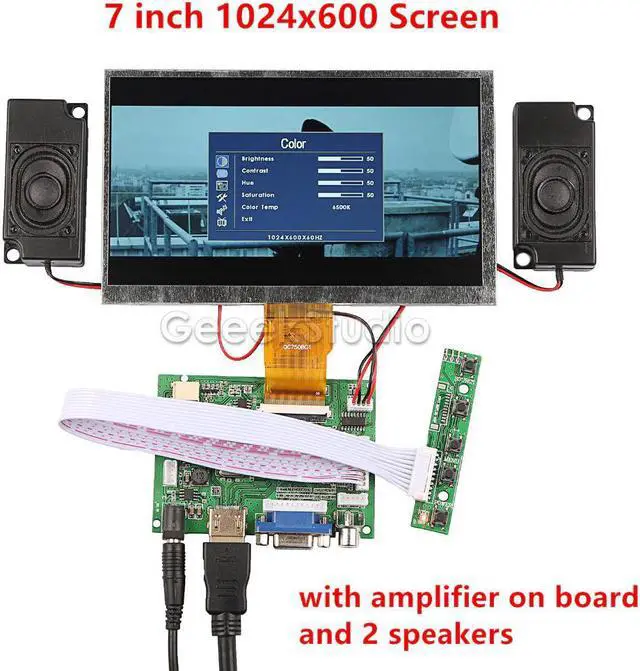

New! 7 inch LCD 1024*600 Monitor Display Screen Kit with Amplifier and 2 pcs Speakers for Raspberry 4 B All Platform/ PC

GeeekStudio New! 7 inch LCD 1024*600 Display Monitor Screen Kit

Technical Support

//wiki.52.com/index.php/7_inch_1024x600_Screen_and_driver_board_with_Amplifier_and_Two_speakers_Kit_SKU:_EP-0089

Kindly Notice:

NOT Compatible with TV BOX, thank you!

Description:

This is a new product for DIY users, it's a very smart choice if you want to DIY your own stereo system or entertainment system.

It have two speakers and an amplifier onboard.

You can control the volume on the OSD system

It provides OSD system for you to change color, contrast and some other options.

Features:

Operating voltage: 12V (current requirement 1A-2A)

Rated power: 6-7W

Support 12V DC voltage input, the positive and negative can not be reversed, to avoid damage the circuit board

Resolution: 1024 * 600

Plug and Play: Support

OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese

Control: Multi-function OSD operation or potentiometer adjust the brightness and color

Features: Using mature program, clear display

Support image flip up and down, the image can conversion 4: 3 / 16: 9 display format

LCD Screen Parameters:

Display size: 7 inch

Touch screen: Not support

Dimensions: 165 (W) × 100 (H) × 5 (D) mm

Viewing area: 154.08 (H) × 85.92 (V)

Resolution: 1024 × 3 (RGB) ×600

Point distance: 0.05 (W) × 0.15 (H) mm

Viewing angle: L70 ° R70 ° U50 ° D60

Panel type: TFT

Display color: 262K

Contrast ratio: 500: 1

Brightness: 220cd / m2

Interface type: Digital

Backlight: LED
