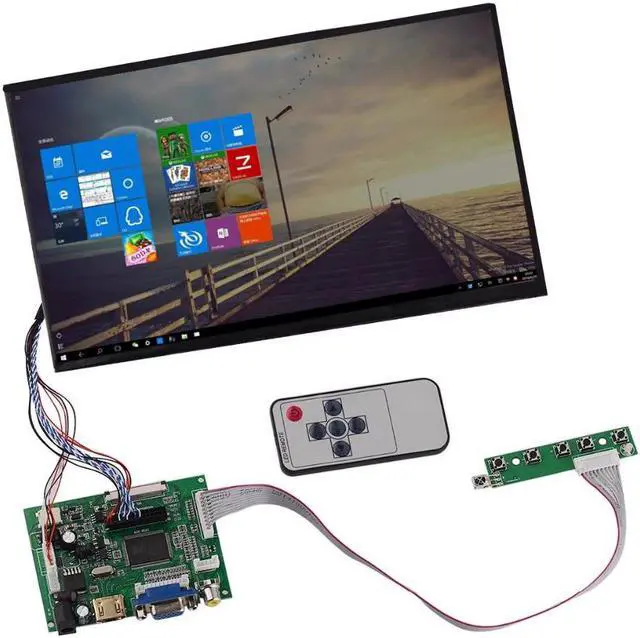

10.1 HD LCD Display Screen High Resolution Monitor Remote Driver Control Board 2AV VGA For Lattepanda,Raspberry Pi

10.1 HD LCD Display Screen High Resolution Monitor Remote Driver Control Board 2AV VGA For Lattepanda,Raspberry Pi 3 2

screen size:10.1 inch

length:230mm   width:149mm   thickness:3mm

without touch Screen)

Product description

General Specifications

LCD size: 10.1 inches(Diagonal)

Driver element: a-Si TFT active matrix

Resolution: 1280*3(RGB)*800

Display mode: Normally white, Trans-missive

Dot pitch: 0.05(W) x 0.15(H) mm

Interface: Digital

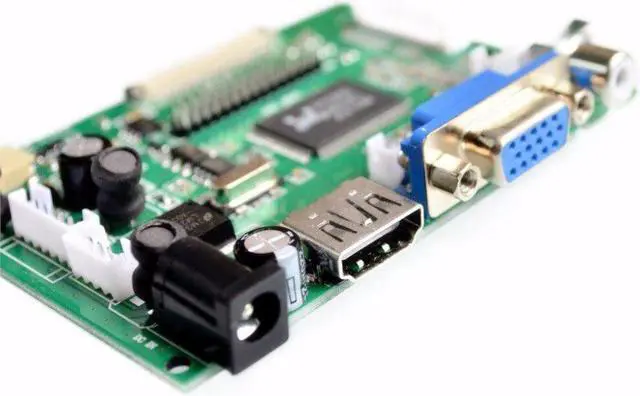

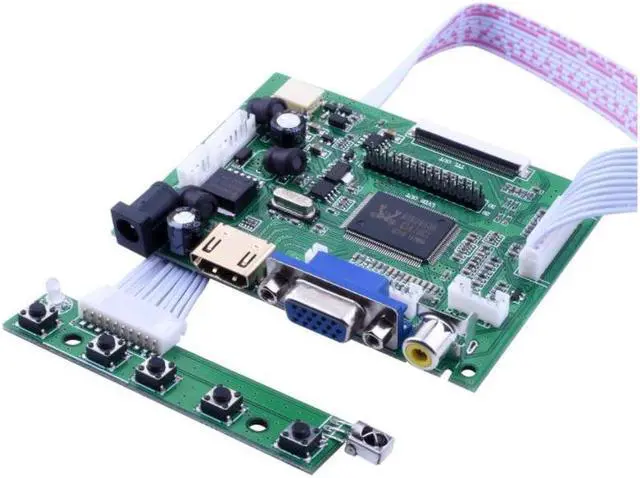

Driver Board Interfaces

1.Power supply(12V 2A), The LCD Panel donot include power charger, you can order Kuman 12V 2A power supply (Asin:B01GDX6PW4 )from us

2.

3.VGA Connector

4.AV1

5.AV1+AV2

6.Keyboard

7.TTL Signal

8.LVDS Signal 1/2 ch 6bit 8bit

9.12V Backlight

10.Inverter Connector

Notice 1: Power supply NOT included,without Touch Panel, if need Touch Panel, please contact us.

Notice 2: This controller board support Automatically switch to AV2 (View Reversing camera).

Operating voltage: Power supply(5-12V >1A ), can be directly from the computer USB port or power bank!(special reminder: the use of the power plug polarity requirements for: inside positive and outside negative-Positive and negative can not be reversed, so as not to damage the circuit board)

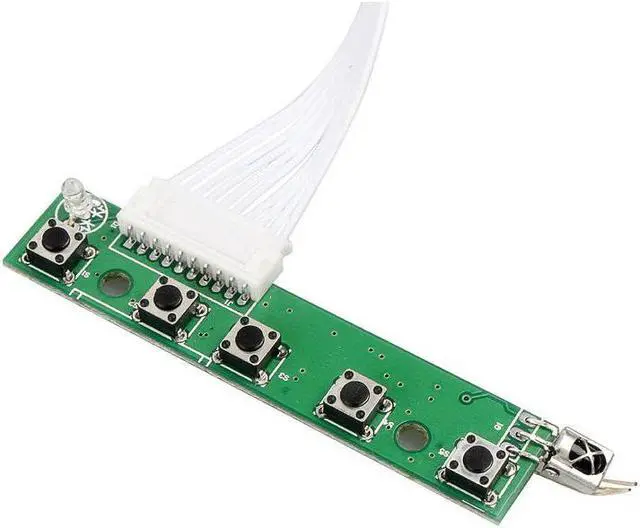

Notice 3: The five buttons are as follows: S1 = Power, S2=Menu/Select, S3=Up, S4=Down, S5=Video
