10.1" LCD HD Monitor Mini TV & Computer Display Color Screen 2 Channel Video Input Security Monitor With Speaker AV

10.1" LCD HD Monitor Mini TV & Computer Display Color Screen 2Channel Video Input Security Monitor With Speaker/ BNC / AVI / VGA /

Specification

Maximum resolution supported: 1024*600(please conference to this resolution data)

Brightness: 400 cd / square meter

Contrast: 500: 1

Aspect ratio: 16: 9

Response time: 5ms

Viewing angle: 85/85 (left / right), 85/85 (up / down)

Video signal input range: 0.7 to 1.4Vp-p / 75 Ohm

Input frequency supported: H: 30 to 60 kHz, V: 60 to 75 Hz

Speaker output power: up to 1 W / 8 ohms

Video color system: PAL-4.43; NTSC-3.58

support format: 480i (60Hz), 480p (60Hz), 576i (50Hz), 576p (50Hz), 720p (50 / 60Hz)

NTSC / PAL video color system, brightness, contrast, color, and hue adjustments

Supply voltage: DC7.9V to 13.5V

Power consumption: up to 8W

Standby current: up to 35 mA

Operating temperature: -20 to 50 degrees Celsius

Storage temperature: -30 to 65 degrees Celsius

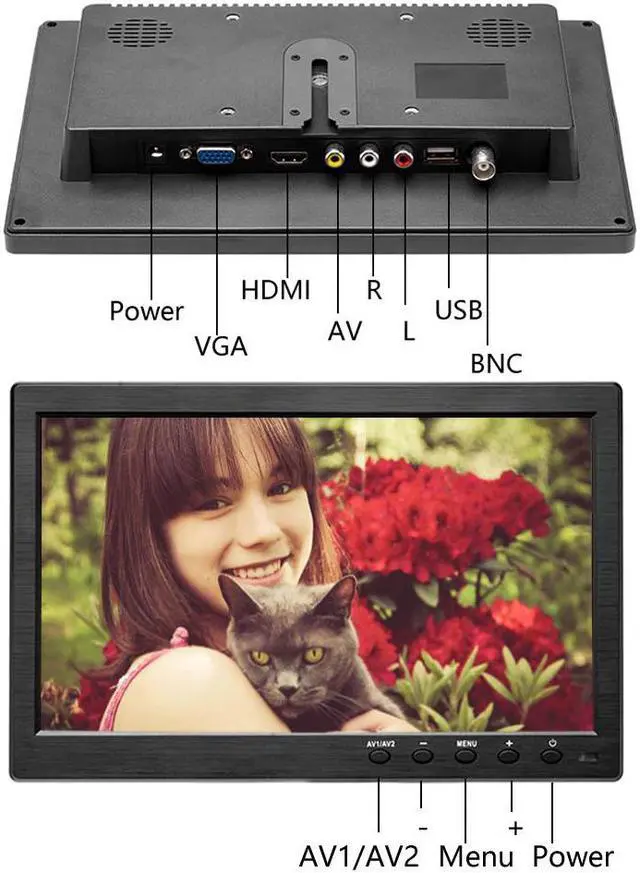

Ports: VGA, BNC, USB, , AV input, DC 12V

Languages: French, English, Italian, Spanish, German, Chinese, Turkish, Russian

Package included

1 x 10.1 inch LCD Monitor

1 x Power Adapter (EU US UK AU,add note to remind which kind you need)

1 x cable

1 x VGA cable

1 x AV Cable

1 x BNC Cable

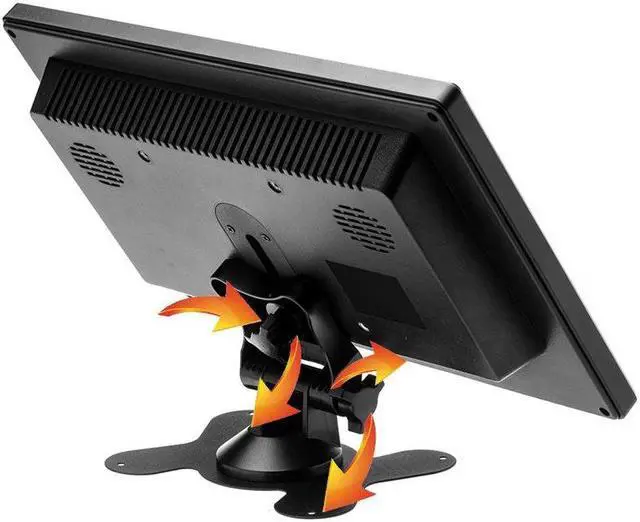

1 x Mount Bracket

1 x Remote Control

1 x Two-sided adhesive

Notice

1.If it is used for game, this AC adapter does not allow keep working for a long time.

2.Please turn off the monitor firstly before turn off the power.
