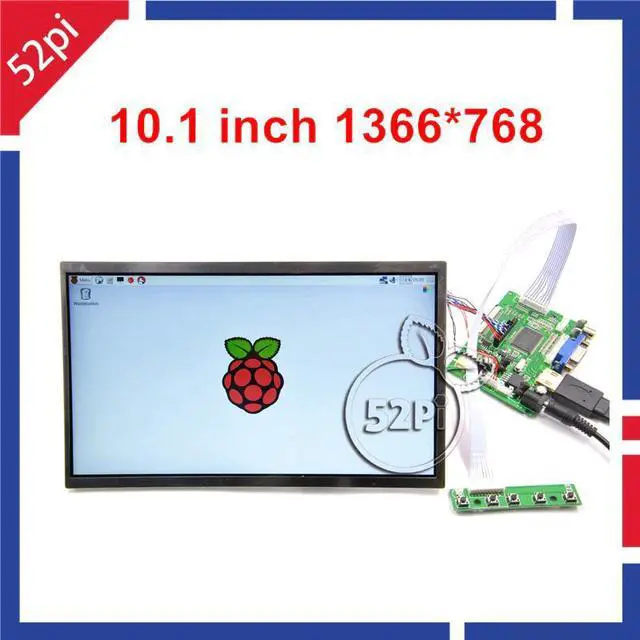

52 10.1 inch 1366x768 LCD Display Monitor TFT Panel for Raspberry 3/2 Model B and Windows

10.1 inch 1366*768 TFT LCD Display

Description:

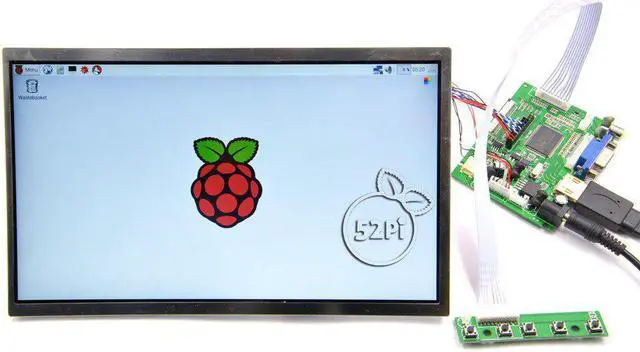

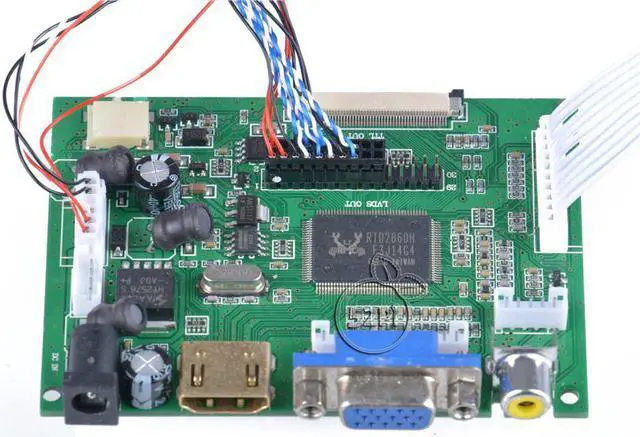

This 10.1 inch High-resolution 1366*768 IPS LCD display module kit is especially designed as a monitor for Raspberry 2 Model B and Raspberry B+ B A+.

For use with a Raspberry we suggest editing config.txt to set the to the native 1366x768 in case it doesn't detect the resolution properly. The easiest way to edit the config.txt is to put the TF card into an every day computer and edit config.txt with any text editor and save.

Feature:

Screen Dimensions: 229mm x 127mm / 9.0" x 5.0"

Panel Type: a-Si TFT-LCD Panel

Panel Size: 10.1"

Resolution (RGB): 1366x768, WXGA

Brightness: 200cd/m2

Contrast Ratio: 800:1 (Min.)

Display Colors (16bit): 65K

Response Time (Tr+Td): 30

Viewing Angle (CR>10): 85/85/85/85

Operating voltage: 12V (current requirement 1A-2A)

Rated power: 6-7W

Signal input: AV + VGA +  ( 1.2)

Resolution: 1366* 768,

Plug and Play: Support

OSD language: Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Spanish, French, German, Italian, Portuguese

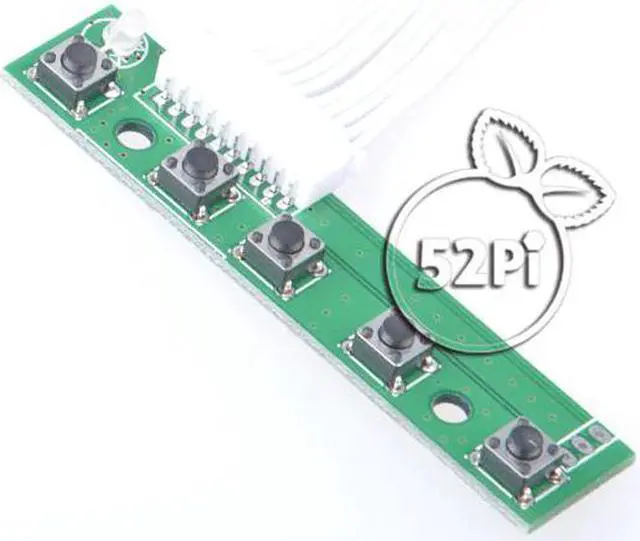

Control: Multifunction OSD operation or potentiometer adjust the brightness and color

LCD screen parameters:

Screen size: 10.1 inch

Touch screen: Not support

Screen Dimensions: 229mm x 127mm / 9.0" x 5.0"

Panel Type: a-Si TFT-LCD Panel

Panel Size: 10.1"

Resolution (RGB): 1366x768, WXGA

Display Mode: HFFS, Normally Black, Transmissive

Surface: Hard coating

Brightness: 200 cd/m2

Contrast Ratio: 800:1 (Min.)

Display Colors (16bit): 65K

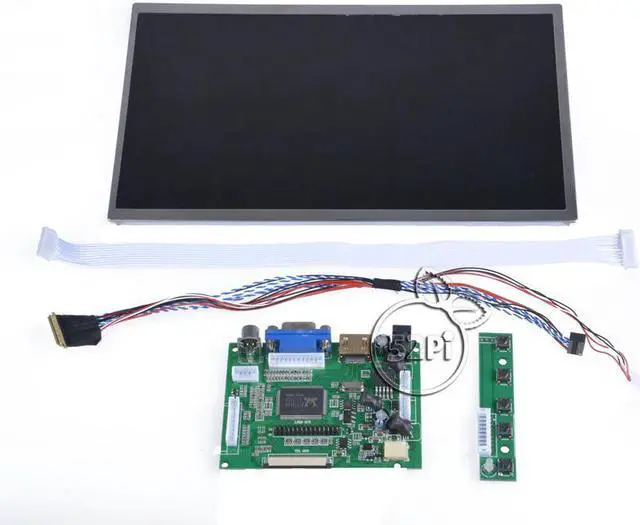

Package includes:

1× LVDS Cable
