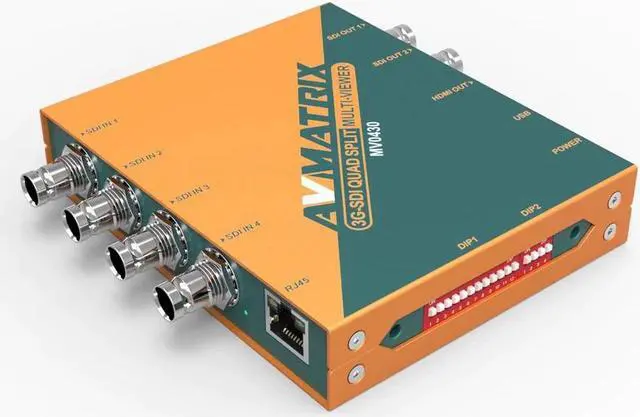

3G-SDI Scaling Converter & Multiviewer for SDI Monitor

MV0430

4 channel SDI multiviewer scaler

MV0430 is an exquisite and professional SDI multiviewer which features 4-channel 3G/HD/SD-SDI auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel outputs. Total 16 preset layouts are provided for choices. User can also adjust the size and position of 11-character UMD and audio meter overlay freely. All the functions can be easily set by a built-in DIP switch, or PC via LAN. MV0430 is your ideal choice for broadcasting and AV post production applications.

Main Features

1) 4×SD/HD/3G-SDI inputs with auto detection

2) 2×SD/HD/3G-SDI and 1× outputs for multiview

3) 11 selectable SDI & output formats

4) Up/down scaling and frame rate conversion

5) 16 preset layouts,Support both full-screen and multiview mode

6) 11 character UMD overlay, support custom position and color

7) Audio level meter overlay, support custom position

8) Control easily via the DIP switches

9) USB port for keyboard control

10) LAN port for control and firmware update

11) Threaded locking power connector

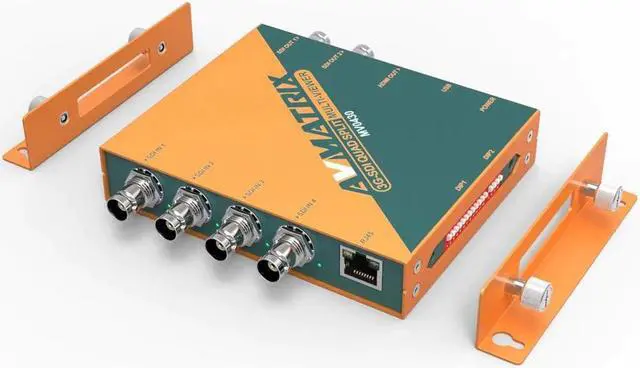

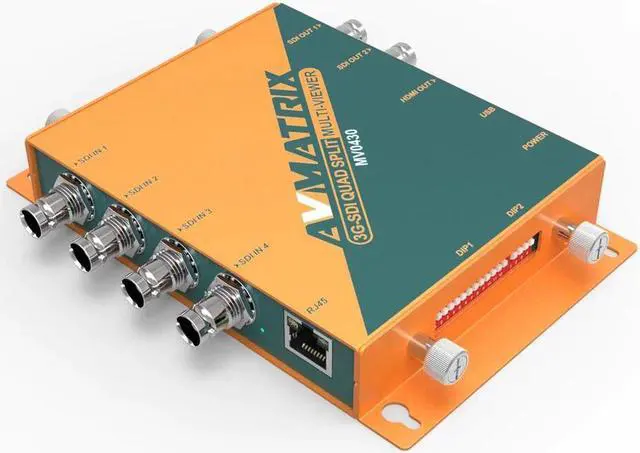

12) Detachable bracket design for wall mounting

11 Output Formats Selectable

The SDI multiviewer features in 4-channel 3G/HD/SD auto adaptive inputs and 2-channel 3G-SDI as well as 1-channel outputs. Four inputs can be showed simultaneously on the same display. From 720p25 to 1080p60, 11 signal output formats are supported for user's choices.

16 Group Preset Layouts

User-defined UMD and Audio Meter Overlay

Easy Control over DIP Switches

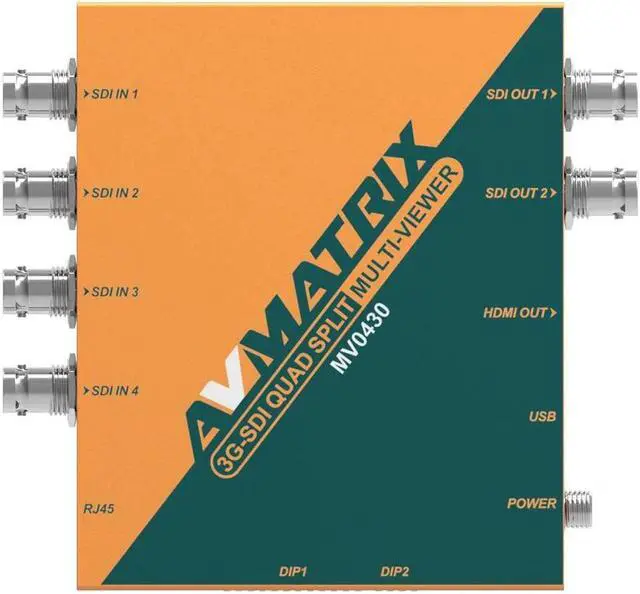

CONNECTIONS

SDI Video Input

SD/HD/3G-SDI(75)×4

6W
